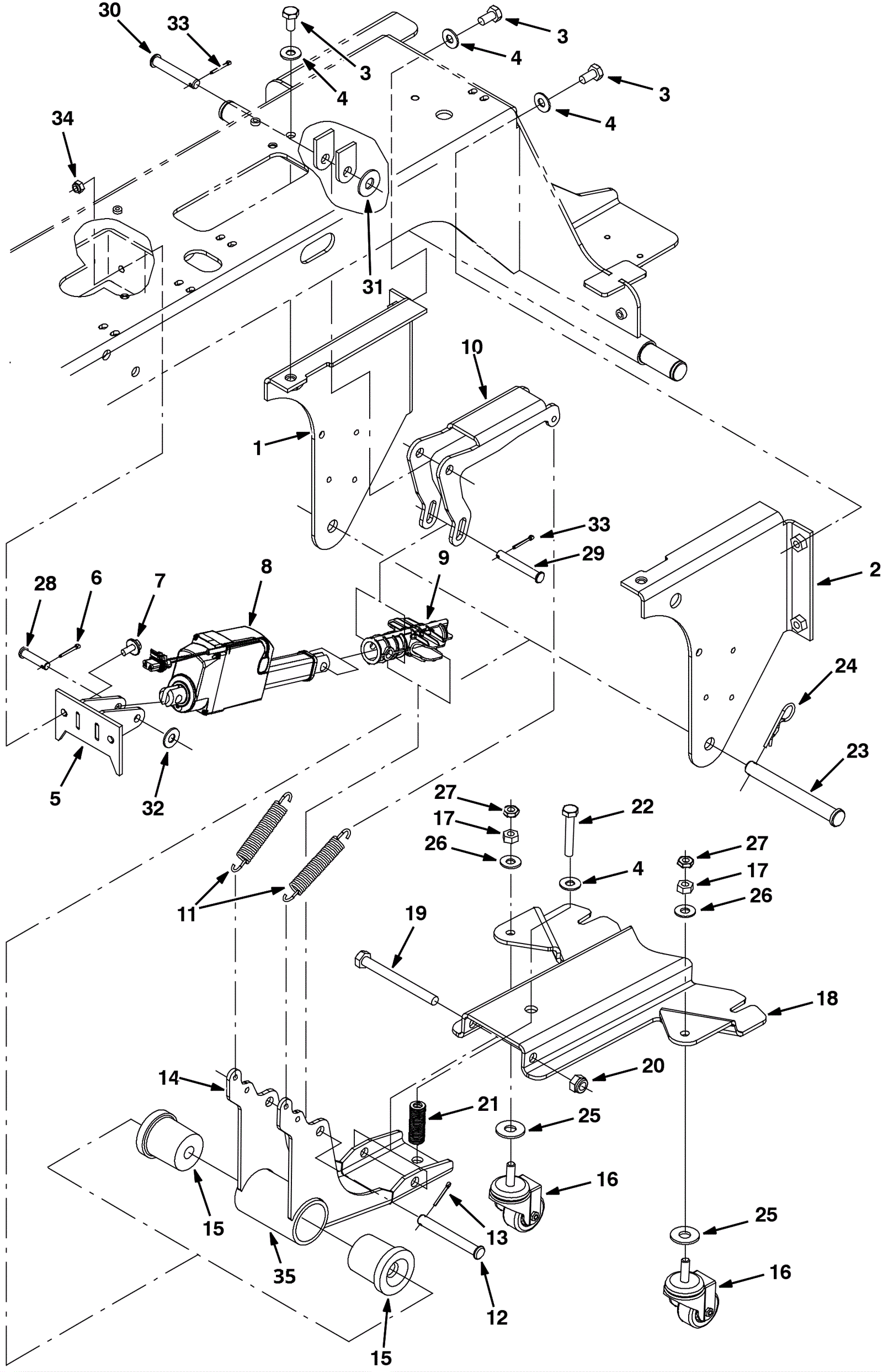

Rear Squeegee Lift Assembly

#PartDescription ReqNotesAvailability
1 275-9409 Right hand squeegee support frame 1 (cylindrical)
2 275-9410 Left hand squeegee support frame 1 (cylindrical)
3 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel 6 (cylindrical)
4 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 7
5 275-9411 Actuator bracket weldment 1 (cylindrical)
6 175-2113 Cotter pin 1
7 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2 (cylindrical)
8 275-7142 Actuator 1 (includes 9)
9 275-9412 Actuator spring housing 1
10 275-9413 Spring mounting arm 1 (cylindrical)
11 275-8197 Extension spring 2
12a 275-8198 Clevis pin 1 (cylindrical)
12b 175-2113 Cotter pin 1 (disk)
13a 175-3281 Cotter pin 1 (cylindrical)
13b 275-8198 Clevis pin 1 (disk)
14 275-9414 Arm weldment 1 (cylindrical)
15 275-8200 Flex bushing 2
16 275-8046 Swivel caster wheel 2
17 275-0332 NUT, HEX, STD, M10 X 1.50, SS 2
18 275-8201 Lower squeegee arm channel 1
19 275-0463 Screw M12-1.75 x 120mm hex head 1
20 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
21 275-8202 Compression spring 1
22 175-0792 Bolt M10-1.5 x 60mm hex head stainless steel 1
23 275-8114 Clevis pin 1
24 175-2106 Cotter hair pin 1
25 999-0114 Washer 1/2 SAE flat 2
26 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
27 999-1625 Nut M10-1.5 hex jam stainless steel 2
28 275-8195 Clevis pin 1
29a 275-9415 Clevis pin 1 (cylindrical)
29b 275-8112 Clevis pin 1 (disk)
30 275-9416 Clevis pin 1 (cylindrical)
31 999-0114 Washer 1/2 SAE flat 1
32 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
33 175-3281 Cotter pin 2 (cylindrical)
34 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2 (cylindrical)
35 275-8199 Arm weldment 1 (disk)
