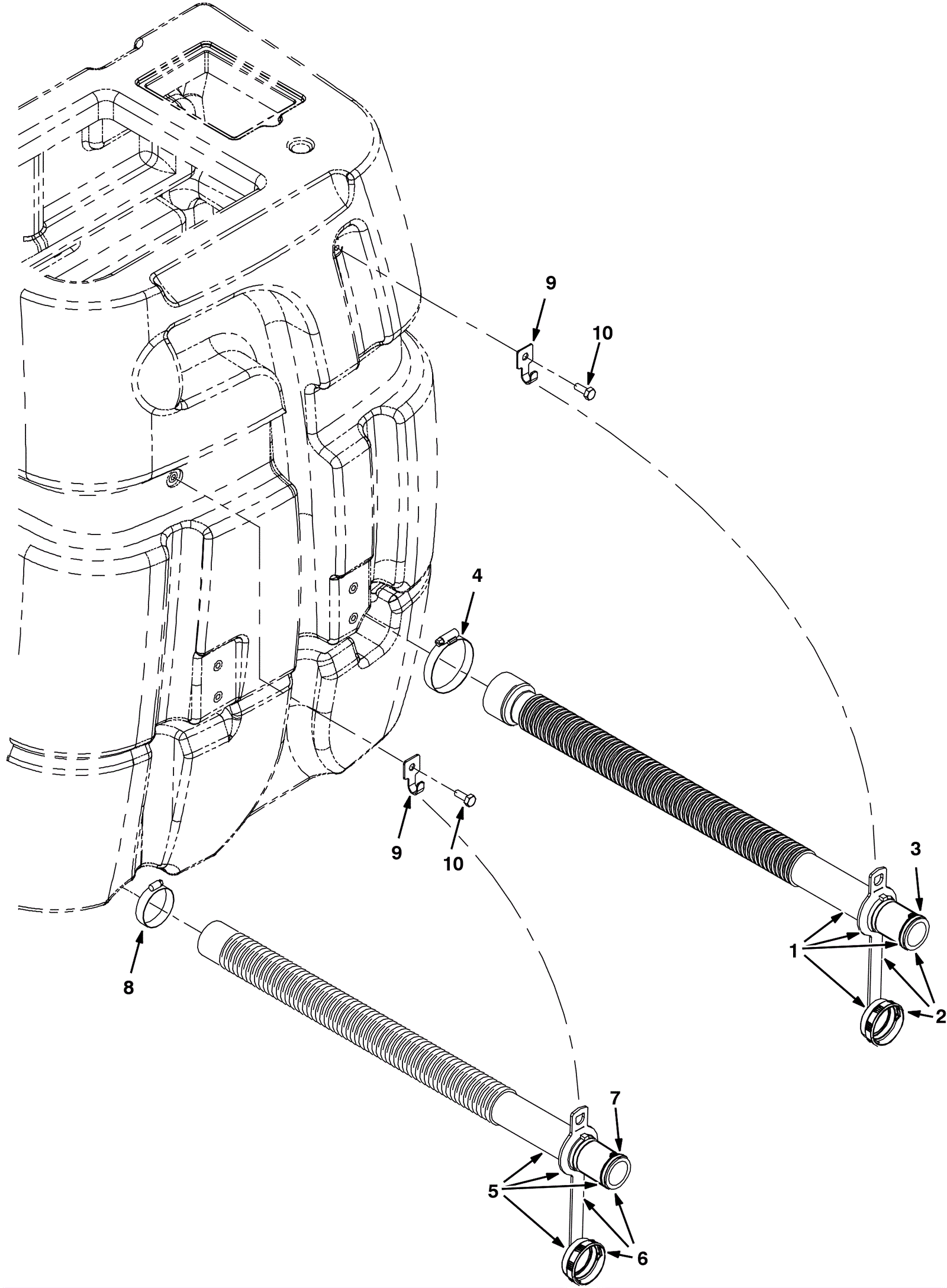

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-8189
|
Recovery drain hose assembly |
1 |
(includes 2a, 3) (OEM) |
|
1b |
991-2423
|
Hose assembly |
1 |
(NON-OEM) |
|
2a |
175-4214
|
Drain plug assembly |
1 |
(includes 3) (OEM) |
|
2b |
991-3028
|
Drain plug assembly |
1 |
(NON-OEM) |
|
3 |
175-5804
|
O-ring |
1 |
|
|
4 |
997-2006
|
Hose clamp |
2 |
|
|
5 |
275-1597
|
Solution drain hose assembly |
1 |
(includes 6-7) |
|
6 |
175-4214
|
Drain plug assembly |
5 |
(includes 7) |
|
7 |
175-5804
|
O-ring |
1 |
|
|
8 |
997-2000
|
Hose clamp |
1 |
|
|
9 |
175-2256
|
Hose hanger clip |
2 |
|
|
10 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
