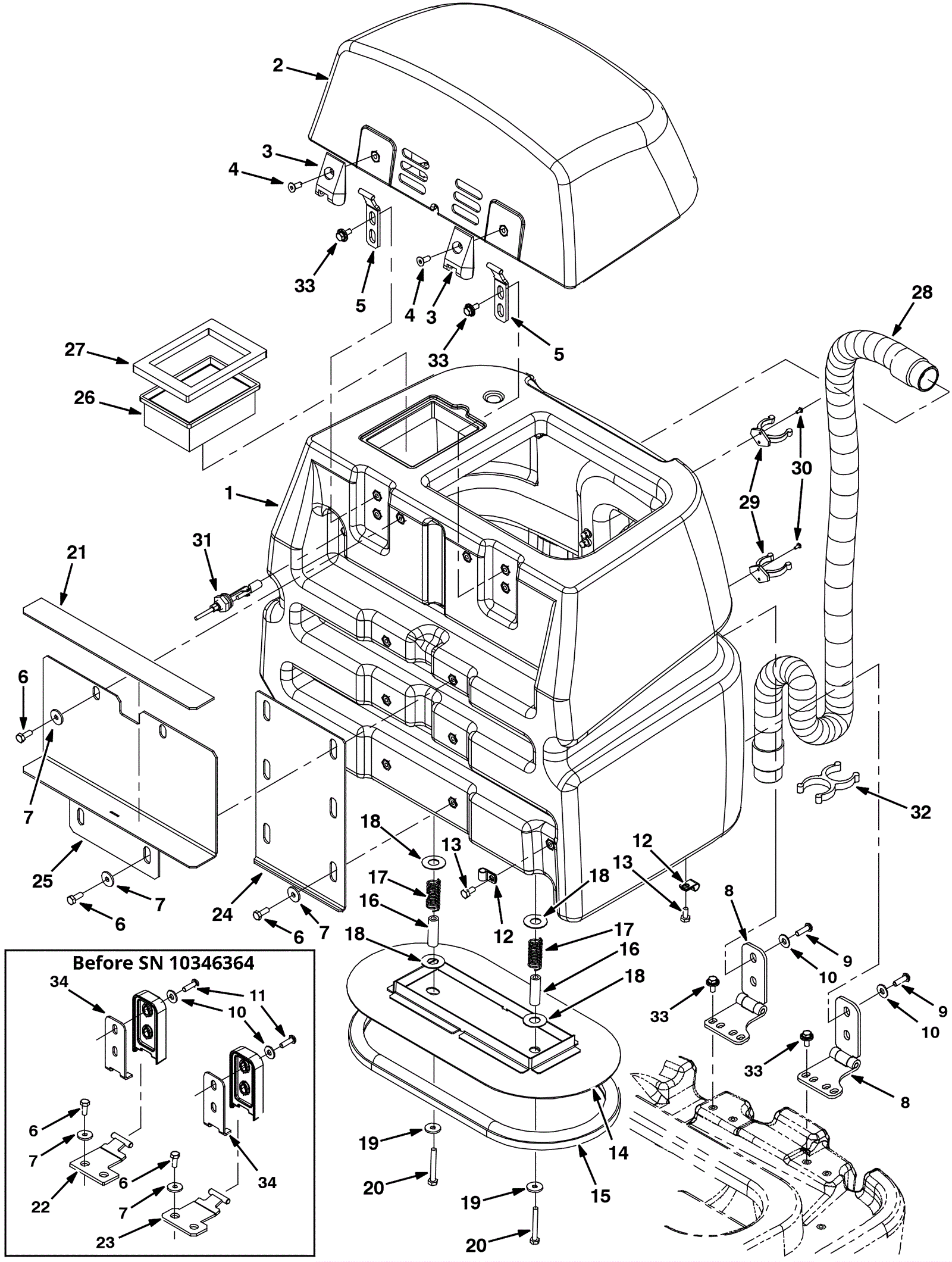

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1a 275-8150 Recovery tank with T7 decal (teal) 1
1b 275-9390 Recovery tank with T7 decal (gray) 1
1c 275-8151 Recovery tank with T7 FaST decal (teal) 1
1d 275-9391 Recovery tank with T7 FaST decal (gray) 1
1e 275-9392 Recovery tank with T7 ec-H2O decal (teal) 1
1f 275-9393 Recovery tank with T7 ec-H2O decal (gray) 1
2 275-5210 Recovery tank lid 1
3 175-2271 Leaf hinge 2
4 999-1324 Screw M8-1.25 x 20mm flat head stainless steel 2
5 275-8152 Hinge 2
6 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 12
7 175-7920 Washer M8 flat stainless steel 12
8 275-9394 Hinge weldment kit 2 (after SN 10346363)
9 175-4927 Screw M8-1.25 x 20mm button head 4 (after SN 10346363)
10 275-8068 Washer 1/2 flat steel 4
11 999-0910 Screw M8-1.25 x 25mm button head socket 4 (before SN 10346364)
12 175-0559 P clamp 2
13 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2
14 275-8155 Plate weldment 1
15 275-8156 Seal 1
16 275-8157 Spacer 2
17 275-1215 Compression spring 2
18 175-7361 Washer 11/16 x 1/2 flat stainless steel 4
19 175-7920 Washer M8 flat stainless steel 2
20 999-1368 Screw M8-1.25 x 60mm hex head stainless steel 2
21 275-8159 Rubber pad 1
22 275-9394 Hinge weldment kit 2 (before SN 10346364)
23 275-9394 Hinge weldment kit 1 (before SN 10346364)
24 275-8162 Tank support plate 1
25 275-8163 Tank support bracket 1
26a 175-2259 Vacuum fan filter 1 (OEM)
26b 991-9073 Vacuum fan filter 1 (NON-OEM)
27 275-8164 Filter gasket 1
28 175-7966 Vacuum hose with short cuffs 1
29 275-8165 Hose clip 2
30 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 4
31 175-9554 Float switch 1
32 175-4772 Hose bracket 1
33 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 8
34 275-9394 Hinge weldment kit 2 (before SN 10346364)
