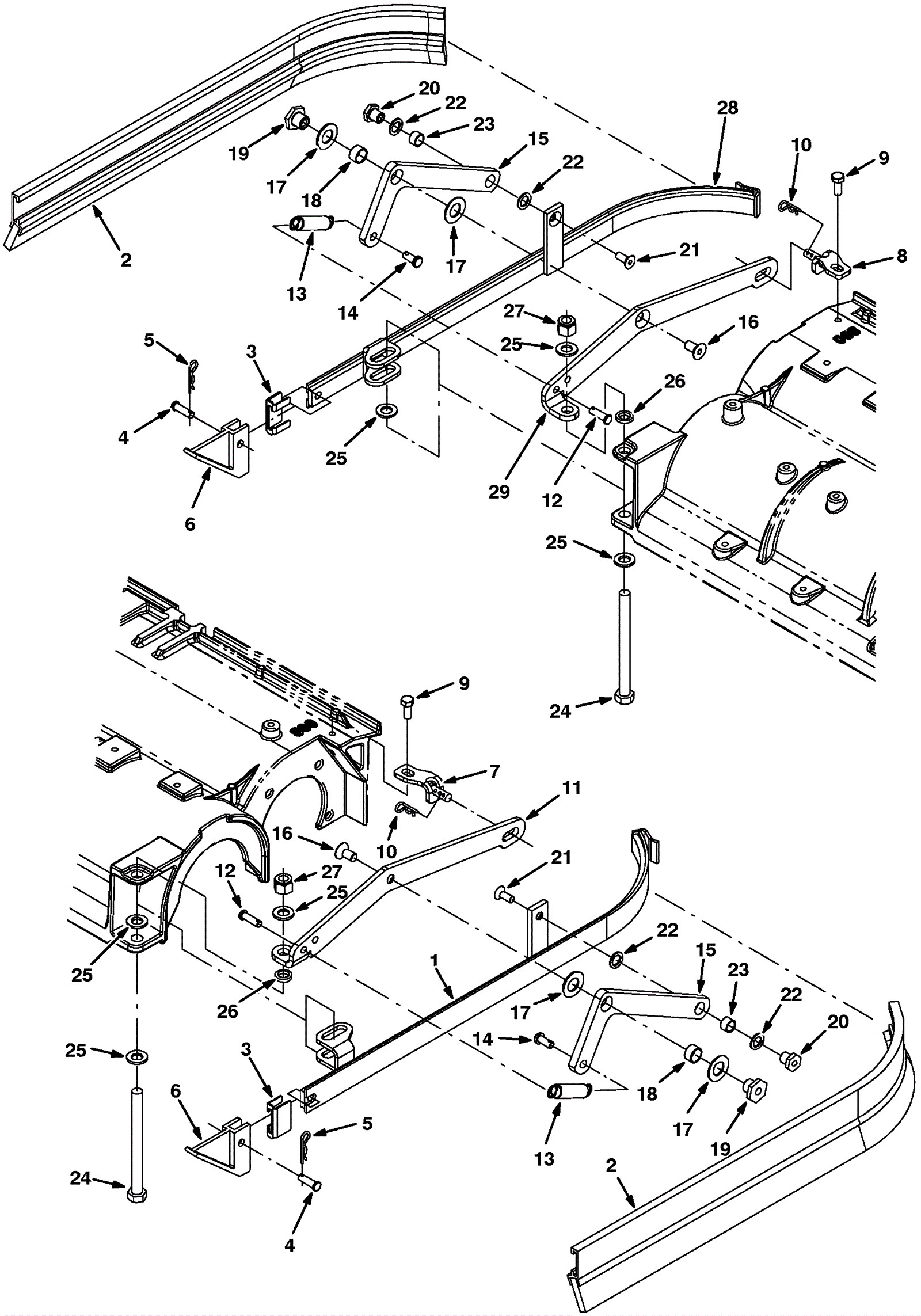

SPEED SCRUB RIDER Side Squeegee Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 175-5541 Left hand squeegee frame weldment $307.56 1 ships same day
2a 175-5389 Side squeegee blade $67.98 2 (standard) ships same day
2b 475-3676 Squeegee assembly $97.24 2 (optional) ships same day
2c 475-3562 SQUEEGEE ASSY, CYLRCL, GUM [T7/SSR] $57.86 2 (optional) ships same day
2d 991-8619 SQUEEGEE ASSY, SIDE [LINATEX] $57.50 2 (NON-OEM) ships same day
3 175-3357 Squeegee blade retainer $12.10 2 usually ships 10-16 days
4 175-3351 Clevis pin $4.49 2 ships same day
5 175-2117 Cotter pin $5.28 2 usually ships 10-16 days
6 475-3313 GUIDE, SQGE, SIDE, YELLOW $19.14 2 usually ships 10-16 days
7 275-9386 Left hand weldment stop $61.93 1 usually ships 10-16 days
8 275-9380 Right hand weldment stop $42.35 1 usually ships 10-16 days
9 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 2 usually ships 10-16 days
10 175-2117 Cotter pin $5.28 2 usually ships 10-16 days
11 275-9387 Left hand linkage arm $118.03 1 usually ships 1-5 days
12 175-3351 Clevis pin $4.49 2 ships same day
13 175-3345 Extension spring $10.01 2 ships same day
14 175-3344 Clevis pin $8.25 2 usually ships 10-16 days
15 175-3348 Bell crank $61.05 2 usually ships 10-16 days
16 175-5412 Screw M10-1.5 x 20mm flat stainless steel $6.27 2 usually ships 10-16 days
17 175-3347 Washer .61 thrust $5.50 4 usually ships 10-16 days
18 175-3349 Sleeved bushing $13.64 2 usually ships 10-16 days
19 175-3352 T-nut M10-1.5mm $8.80 2 ships same day
20 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 2 ships same day
21 999-1324 Screw M8-1.25 x 20mm flat head stainless steel $0.99 2 ships same day
22 175-3354 Thrust washer $10.67 4 usually ships 10-16 days
23 175-3355 Sleeved bushing $7.37 2 usually ships 10-16 days
24 275-4662 Screw 1/2-13 x 5 1/2 hex head $8.25 2 usually ships 10-16 days
25 175-5407 Washer M12 flat stainless steel $4.36 6 usually ships 10-16 days
26 275-9388 Sleeved bushing $9.13 2 usually ships 1-5 days
27 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 2 ships same day
28 175-5540 Right hand squeegee frame weldment $307.56 1 usually ships 10-16 days
29 275-9389 Right hand linkage arm $112.97 1 ships same day
