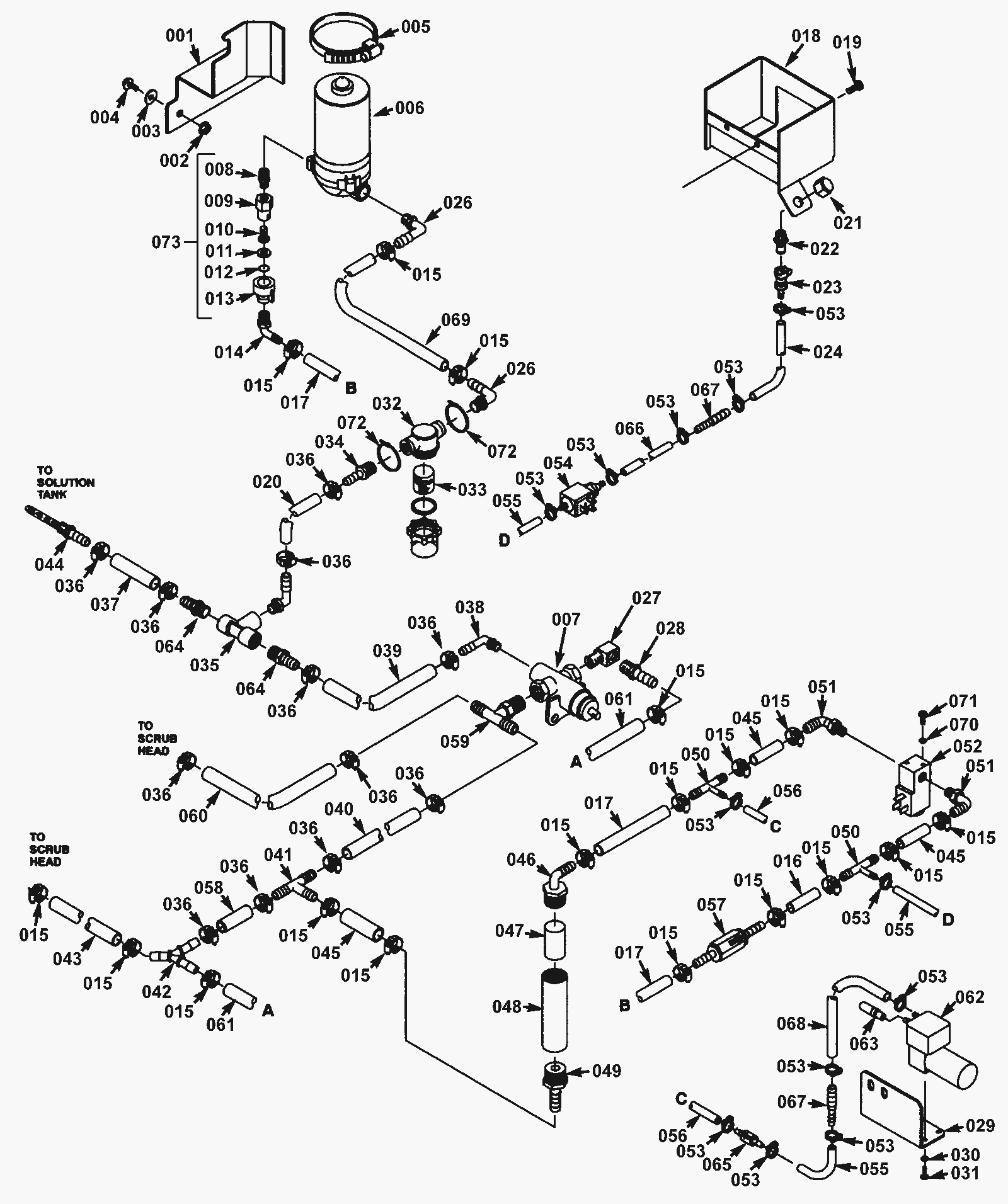

Solution Assembly - FaST

#PartDescription ReqNotesAvailability
001 275-1201 Solution pump bracket 1
002 999-0015 Nut 1/4-20 k-lock zinc plated 2
003 999-0016 Washer 1/4 flat plain finish 2
004 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel 2
005 997-2009 Hose clamp 1
006a 275-5763 Solution pump 24V (OBSOLETE) 1 (includes 006b-006f)
006b 175-8755 TERMINAL, FEM, MP280, SEALED, 18-16GA (Tennant Industrial) 2
006c 175-8752 Pump head kit 1
006d 175-8753 Female connector 1
006e 175-8756 Male and female secondary lock 1
006f 175-8754 14/16 wire seal 2
007 175-2029 3-way ball valve 1
008 175-8702 Plastic strainer fitting 1
009 175-7948 Plastic spray body fitting 1
010 175-5248 Mesh screen 1
011 175-5246 Washer 11/32 x 3/4 x 1/8 flat viton 1
012 275-1203 Orifice plate 1
013 175-8726 Plastic spray cap fitting 1
014 175-6926 Plastic elbow fitting 1
015 175-6081 Hose clamp 18
016 175-8981 PVC braided hose 3/8 x 10 inch 1
017 175-2610 Hose 2
018 275-5749 Detergent box bracket 1
019 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 2
020 175-8981 PVC braided hose 3/8 x 10 inch 1
021 175-5313 Plastic cap fitting 1
022 275-4743 Straight plastic fitting 1
023 275-4744 Female coupling 1
024 275-5764 PVC hose 12 1/2 inch 1
026 175-7933 90 degree plastic elbow 3
027 175-2614 90 degree elbow fitting 1
028 175-2613 Straight brass fitting 1
029 275-5753 Pump mounting bracket - FaST (OBSOLETE) 1
030 999-0006 Washer 3/16 flat zinc plated 2
031 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc 2
032a 175-9025 In-line screen filter assembly 1 (includes 033)
032b 991-8582 Mesh inline filter 1
033a 175-5866 Mesh filter screen 1 (included 032)
033b 991-8569 Mesh filter screen stainless steel 1
034 275-5765 FITTING, PLSTC, STR, BM06/PM06, NYL (Tennant Industrial) 1
035 275-5766 Plastic fitting 1
036 175-6081 Hose clamp 11
037 375-1414 3 inch clear vinyl tubing 1
038 175-3064 90 degree elbow (OBSOLETE) 1
039 375-1415 14 inch clear vinyl tubing 1
040 175-8981 PVC braided hose 3/8 x 10 inch 1
041 175-1615 Tee fitting 1
042 275-5768 Plastic fitting 1
043 175-8715 PVC board hose 3
044 175-2615 Screen filter (OBSOLETE) 1
045 175-8715 PVC board hose 3
046 175-3595 Plastic fitting 1
047 175-3597 Foam filter 1
048 175-3596 Plastic tube 2
049 275-8710 Straight plastic fitting (Tennant Industrial) 2
050 175-8729 Plastic tee fitting (Tennant Industrial) 1
051 275-5769 Brass fitting 12
052 175-8728 Shutoff electric valve 1
053 175-9690 CLAMP, HOSE, PLSTC .351-.394 ID (Tennant Industrial) 2
054 175-8719 24v detergent pump 1
055 175-8709 Vinyl hose 1
056 175-8709 Vinyl hose 1
057 175-2842 Check valve 1
058 175-2610 Hose 1
059 275-5770 Plastic tee fitting 1
060 175-6527 Hose 3/8 x 10 inch 1
061 175-7950 Braided hose 3/8 x 21 inch 1
062a 175-8712 Air pump 1 (includes 062b - 062f)
062b 175-5317 Air compressor diaphragm repair kit 1
062c 175-8753 Female connector 1
062d 175-8756 Male and female secondary lock 1
062e 275-8096 Female terminal 2
062f 275-8097 Wire seal 2
063 175-5318 Filter assembly 1
064 275-5771 Plastic fitting 2
065 175-8713 C valve fitting 1
066 275-1181 HOSE, AFMKT, PVC, CLR, 0.19ID, 03FT (Tennant Industrial) 1
067 175-8724 Plastic strainer fitting (OBSOLETE) 2
068 275-5772 PVC hose 2 inch 1
069 175-2610 Hose 1
070 999-0006 Washer 3/16 flat zinc plated 2
071 999-1114 Screw 10-16 x 3/8 pan head phillips hi-lo self tapping zinc 2
072 175-0921 Wire tie 2
073 275-1202 Plastic fitting cap assembly 1 (includes 009-013)
