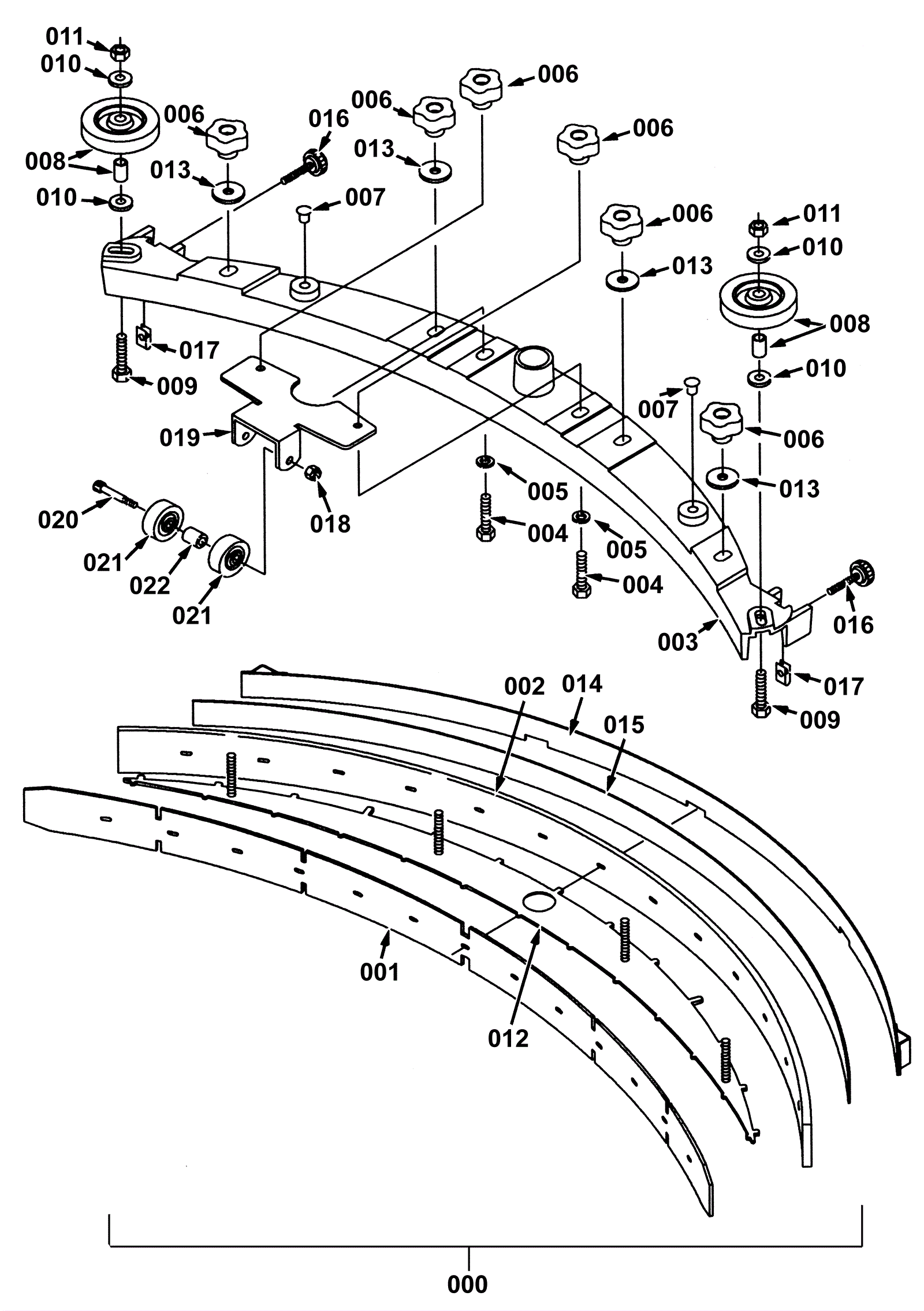

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
175-9031
|
42 inch (1060mm) squeegee assembly (OBSOLETE) |
1 |
|
|
001a |
175-2177
|
Squeegee blade 43 5/8 inch gum rubber front (red) |
1 |
(OEM) |
|
001b |
994-0046
|
Squeegee blade 43 5/8 inch gum rubber front (red) |
1 |
(NON-OEM) |
|
002a |
175-2821
|
Squeegee blade 32 inch rear linatex (OBSOLETE) |
1 |
|
|
002b |
991-1261
|
BLADE, REAR, RED gum rubber (QBA) 45.6 inch (XR |
1 |
(NON-OEM) |
|
003 |
175-2827
|
Squeegee casting |
1 |
|
|
004 |
999-1039
|
Screw 5/16-18 x 1 1/2 truss head phillips stainless steel |
2 |
|
|
005 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
006 |
175-2812
|
Knob |
6 |
|
|
007 |
175-2829
|
Dome plug |
2 |
|
|
008 |
175-0117
|
Guide wheel with bushing |
2 |
|
|
009 |
999-1426
|
Screw M8-1.25 x 45mm hex head stainless steel |
2 |
|
|
010 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
011 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
012 |
175-2176
|
32 inch (800mm) squeegee blade retainer plate |
1 |
|
|
013 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
014 |
175-2179
|
32 inch (800mm) squeegee band weldment |
1 |
|
|
015 |
175-2832
|
Squeegee spacer |
1 |
|
|
016 |
175-2180
|
Knob |
2 |
|
|
017 |
175-2291
|
Nut 1/4-20 speed clip |
2 |
|
|
018 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
019 |
175-2833
|
Squeegee roller bracket |
1 |
|
|
020 |
275-5175
|
Bolt shoulder 5/16-18 x 5 1/2 inch |
1 |
|
|
021 |
991-2013
|
Wheel |
2 |
|
|
022 |
175-2830
|
Spacer |
1 |
|
|
