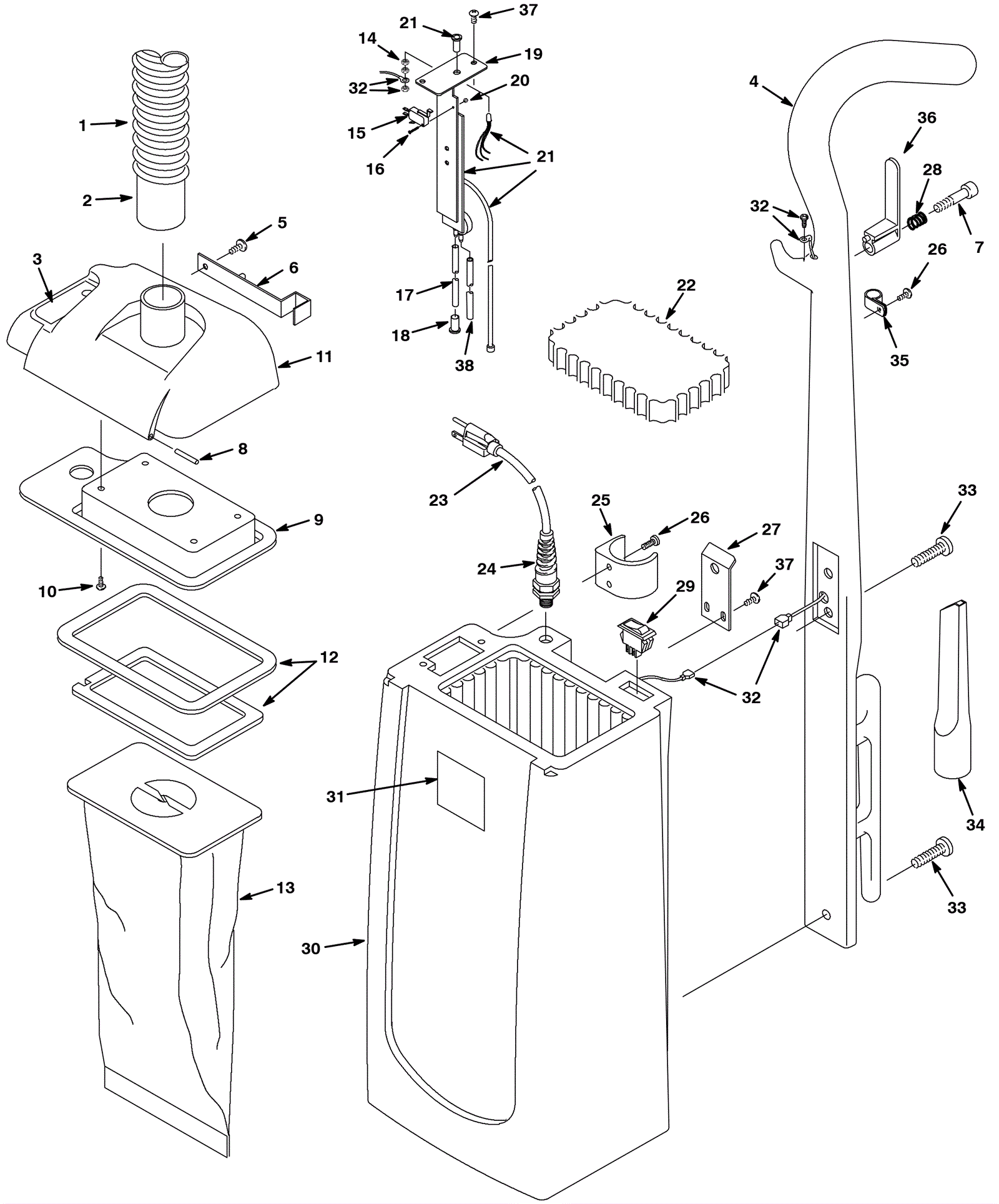

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-0161
|
1 1/4 inch vacuum wand hose (OBSOLETE) |
1 |
|
|
2 |
175-0012
|
Hose cuff |
1 |
|
|
3 |
175-0123
|
Indicator light decal (OBSOLETE) |
1 |
|
|
4 |
175-0124
|
White handle |
1 |
|
|
5 |
175-4398
|
Screw M5-.8 x 10mm phillips truss head zinc |
1 |
|
|
6 |
175-0125
|
Lid latch |
1 |
|
|
7 |
775-0390
|
Bolt M6-.8 x 30mm shield |
1 |
|
|
8 |
175-0126
|
Dowel |
2 |
|
|
9 |
175-0127
|
Bottom lid plate |
1 |
|
|
10 |
999-0447
|
Screw 6-32 x 1/2 pan head phillips zinc plated |
4 |
|
|
11 |
475-1490
|
COVER, HSG, BAG, TEAL |
1 |
|
|
12 |
175-0101
|
Lid gasket |
1 |
|
|
13a |
175-0014
|
Vacuum bags (pkg of 10) |
1 |
(OEM) |
|
13b |
991-8518
|
Paper vacuum bags (pkg of 10 and 2 filters) |
1 |
(NON-OEM) |
|
14 |
999-0740
|
Nut M5-.8 hex stainless steel |
2 |
|
|
15 |
175-0102
|
Snap switch (OBSOLETE) |
1 |
|
|
16 |
999-0738
|
Screw M3-.5 x 16mm pan head phillips zinc |
2 |
|
|
17 |
175-0131
|
Hose 1/8 x 18 inch |
1 |
|
|
18 |
175-0132
|
Bushing |
1 |
|
|
19 |
175-0133
|
Switch and light bracket |
1 |
|
|
20 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
2 |
|
|
21a |
175-0104
|
120V control board (OBSOLETE) |
1 |
(120V) |
|
21b |
275-2288
|
Control board |
1 |
(240V) |
|
22 |
175-0105
|
Vacuum motor foam filter |
1 |
|
|
23a |
175-0106
|
18/3 power cord 40 foot (OBSOLETE) |
1 |
(OEM) (120V) |
|
23b |
175-0047
|
Cord 3x1.00MMx50' 220V |
1 |
(OEM) (240V) |
|
23c |
991-5007
|
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
|
24 |
175-0001
|
Strain relief |
1 |
|
|
25 |
175-0134
|
Wand clip (OBSOLETE) |
1 |
|
|
26 |
999-0521
|
Screw M4-.7 x 12mm pan head phillips zinc |
3 |
|
|
27 |
175-0135
|
Latch strike |
1 |
|
|
28 |
175-7507
|
Compression spring |
1 |
|
|
29a |
175-0136
|
On/off rocker switch |
1 |
(120V) |
|
29b |
175-0006
|
Rocker switch |
1 |
(240V) |
|
30 |
175-0137
|
White bag housing |
1 |
|
|
31 |
275-8000
|
Label 3220 (OBSOLETE) |
1 |
|
|
32a |
175-0139
|
Anti-static wiring kit |
1 |
(includes 32b-32g) |
|
32b |
175-0140
|
Terminal ring #10 |
1 |
|
|
32c |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
32d |
175-0141
|
Wire assembly #18 x 18 (green) |
1 |
|
|
32e |
175-0142
|
1/4 inch male terminal |
1 |
|
|
32f |
175-0143
|
Wire assembly #18 x 18 with #6 ring (green) |
1 |
|
|
32g |
999-0447
|
Screw 6-32 x 1/2 pan head phillips zinc plated |
1 |
|
|
33 |
175-7508
|
Screw M6 x 1 x 35mm truss head phillips zinc (OBSOELTE) |
2 |
|
|
34 |
175-0110
|
Crevice tool |
1 |
|
|
35 |
175-0144
|
P clamp |
1 |
|
|
36a |
175-7509
|
Cord hook |
1 |
|
|
36b |
175-0112
|
Quick release cord hook |
1 |
(models 604900 and 604901) |
|
37 |
999-0530
|
Screw M4-.7 x 8mm pan head slotted zinc |
4 |
|
|
38 |
175-7510
|
Hose 1/4 x 18 inch (red) |
1 |
|
|
N/S |
175-0130
|
19 inch swivel wand (OBSOLETE) |
1 |
(included in KIT1) |
|
KIT1 |
175-0103
|
Vacuum hose wand assembly (OBSOLETE) |
1 |
(includes 1-2) |
|
