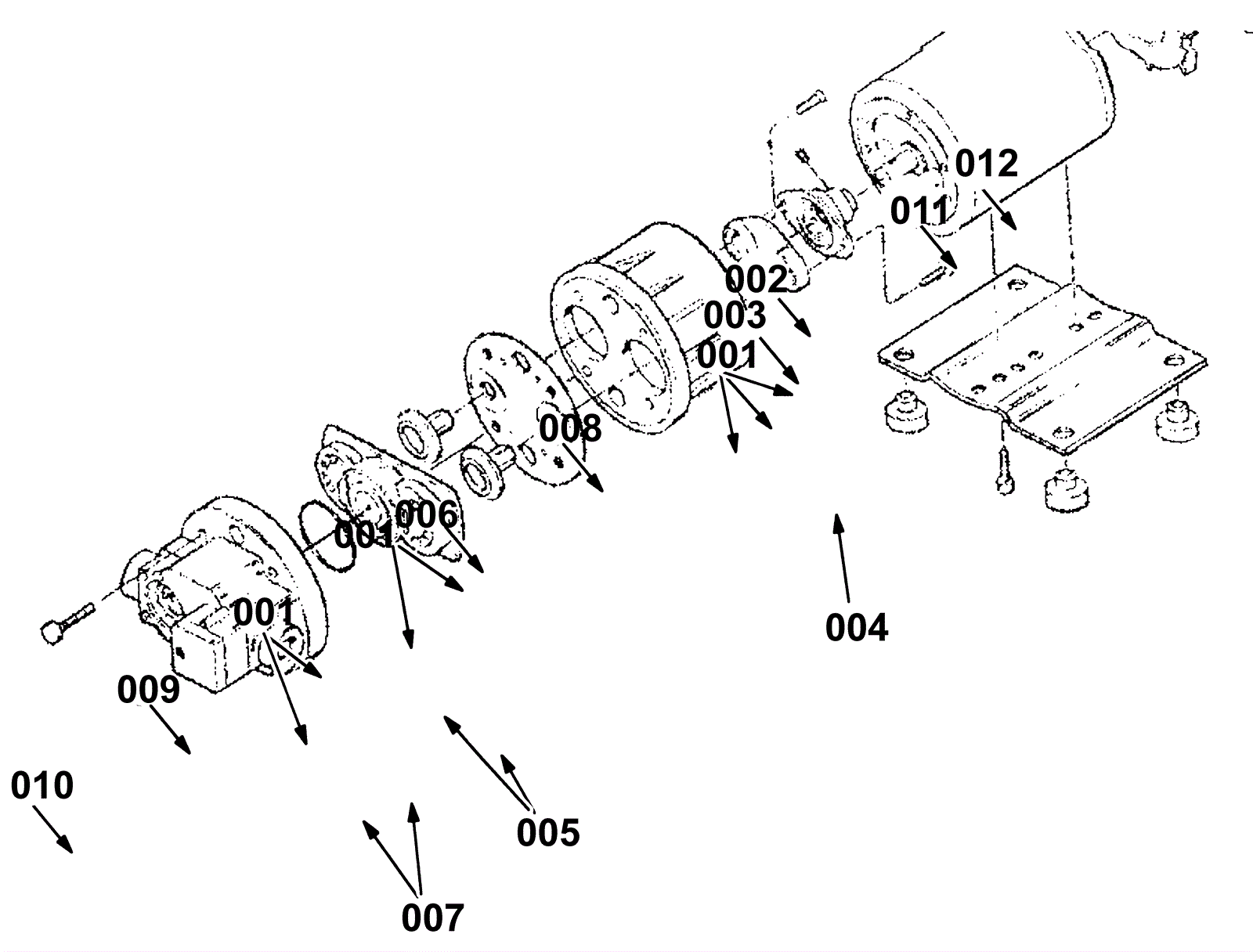

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
N/A
|
Not available |
1 |
Pump assembly |
|
001 |
N/A
|
Not available |
1 |
Seal kit |
|
002 |
N/A
|
Not available |
1 |
Cam/bearing screw |
|
004 |
275-4346
|
Cam, bearing, diaphram kit (Tennant Industrial) (OBSOLETE) |
1 |
|
|
005 |
N/A
|
Not available |
1 |
Piston |
|
006 |
N/A
|
Not available |
1 |
Diaphragm kit |
|
007 |
N/A
|
Not available |
1 |
Valve assembly |
|
008 |
N/A
|
Not available |
1 |
Cover |
|
009 |
275-4351
|
VR, SWITCH ASSY, PUMP, WATER (Tennant Industrial) |
1 |
|
|
010 |
N/A
|
Not available |
1 |
Pump screw |
|
011 |
275-4353
|
VR, MOTOR, ELE, 36VDC, WATER PUMP (Tennant Industrial) |
1 |
|
|
012a |
275-4354
|
VR, BRUSH, MOTOR, WATER PUMP (Tennant Industrial) |
1 |
|
|
012b |
275-4355
|
CONNECTOR, FEM, 2CAV, WP SEALED (Tennant Industrial) |
1 |
|
|
012c |
275-4356
|
TERMINAL, FEM, WP, 16-14GA (Tennant Industrial) |
2 |
|
|
012d |
175-8754
|
14/16 wire seal |
2 |
|
|
