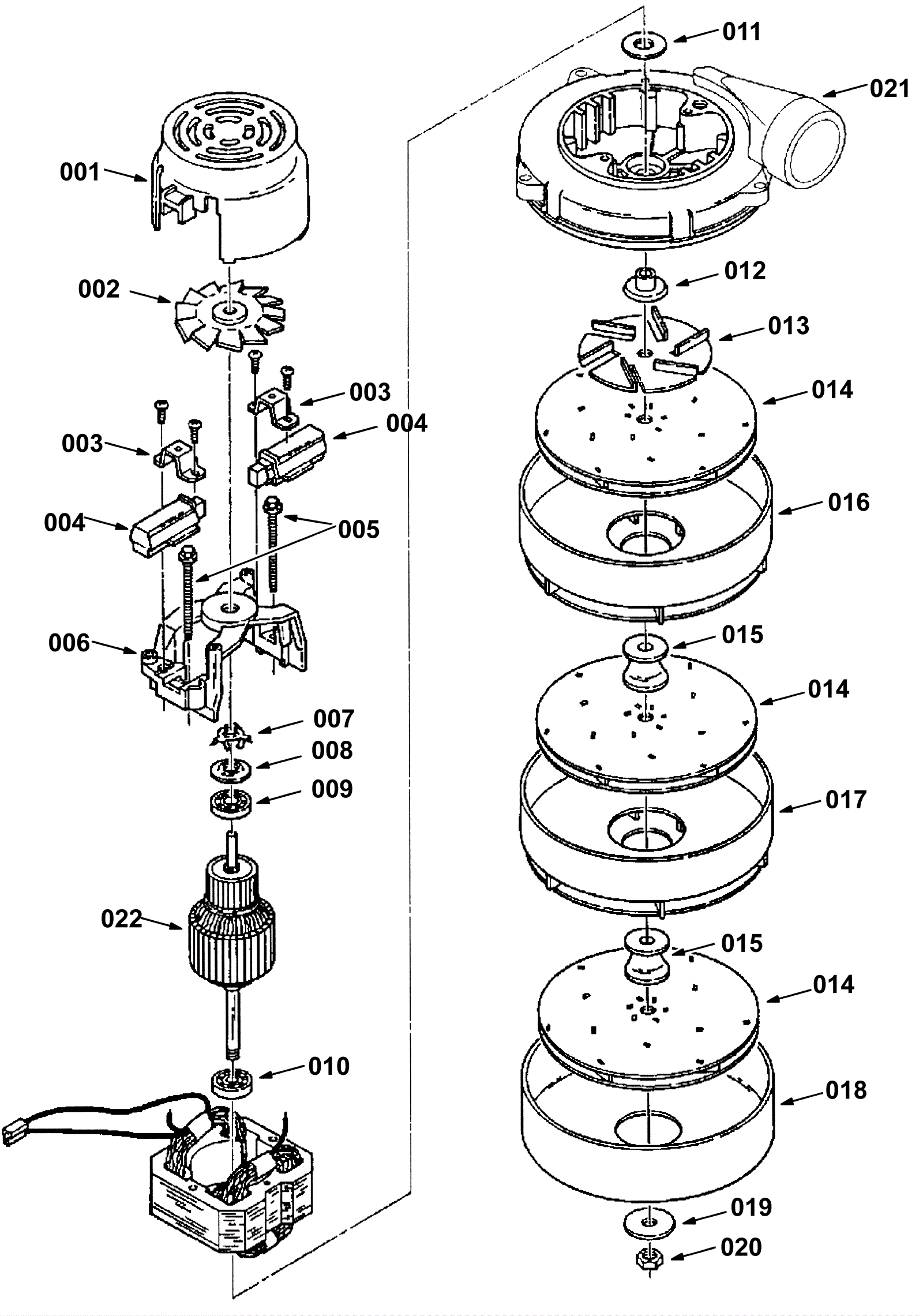

515SS Electric Motor Breakdown, 17363

#PartDescriptionPriceReqNotesAvailability
000 991-1202 36V 3 stage vacuum motor tangential $109.34 1 Includes 001 - 022 ships same day
001 275-0172 Vacuum motor housing $20.46 1 usually ships 5-16 days
002 275-0173 Vacuum motor fan $26.95 1 usually ships 5-16 days
003 275-0174 Brush holder clamp $4.07 2 usually ships 1-5 days
004 991-1222 Plastic covered carbon brush (sold individually) $10.77 2 ships same day
005 275-0175 Vacuum motor screw $7.81 2 usually ships 1-5 days
006 275-0176 Vacuum motor bracket $29.92 1 usually ships 1-5 days
007 175-5279 Spring $2.97 1 usually ships 1-5 days
008 275-0177 Vacuum motor armature disc $4.07 1 usually ships 1-5 days
009 275-0178 Vacuum motor bearing $35.53 1 usually ships 5-16 days
010 175-5281 Bearing $33.66 1 usually ships 5-16 days
011 175-5282 Washer neoprene $4.18 1 usually ships 1-5 days
012 275-0179 Vacuum impeller spacer $12.65 1 usually ships 1-5 days
013 175-5284 Fan $6.38 1 usually ships 1-5 days
014 175-5285 Vacuum fan $13.64 3 usually ships 5-16 days
015 275-0180 Vacuum fan impeller spacer $18.70 2 usually ships 1-5 days
016 175-5287 Stationary fan $24.75 1 usually ships 1-5 days
017 175-5288 Stationary fan $23.32 1 usually ships 1-5 days
018 275-0181 Vacuum fan shell $19.03 1 usually ships 1-5 days
019 275-0182 VR, WASHER (Tennant Industrial) $6.18 1 usually ships 1-5 days
020a 175-5290 Nut $4.18 1 usually ships 1-5 days
020b 175-5293 Female connector $10.01 1 ships same day
020c 175-5294 Female terminal $3.30 2 usually ships 1-5 days
021 175-5291 Fan end bracket $102.63 1 usually ships 1-5 days
022 275-0183 Motor armature $241.12 1 usually ships 1-5 days
N/S 991-1219 Plastic fan cover (for brass covered brushes) $10.90 usually ships 5-16 days
