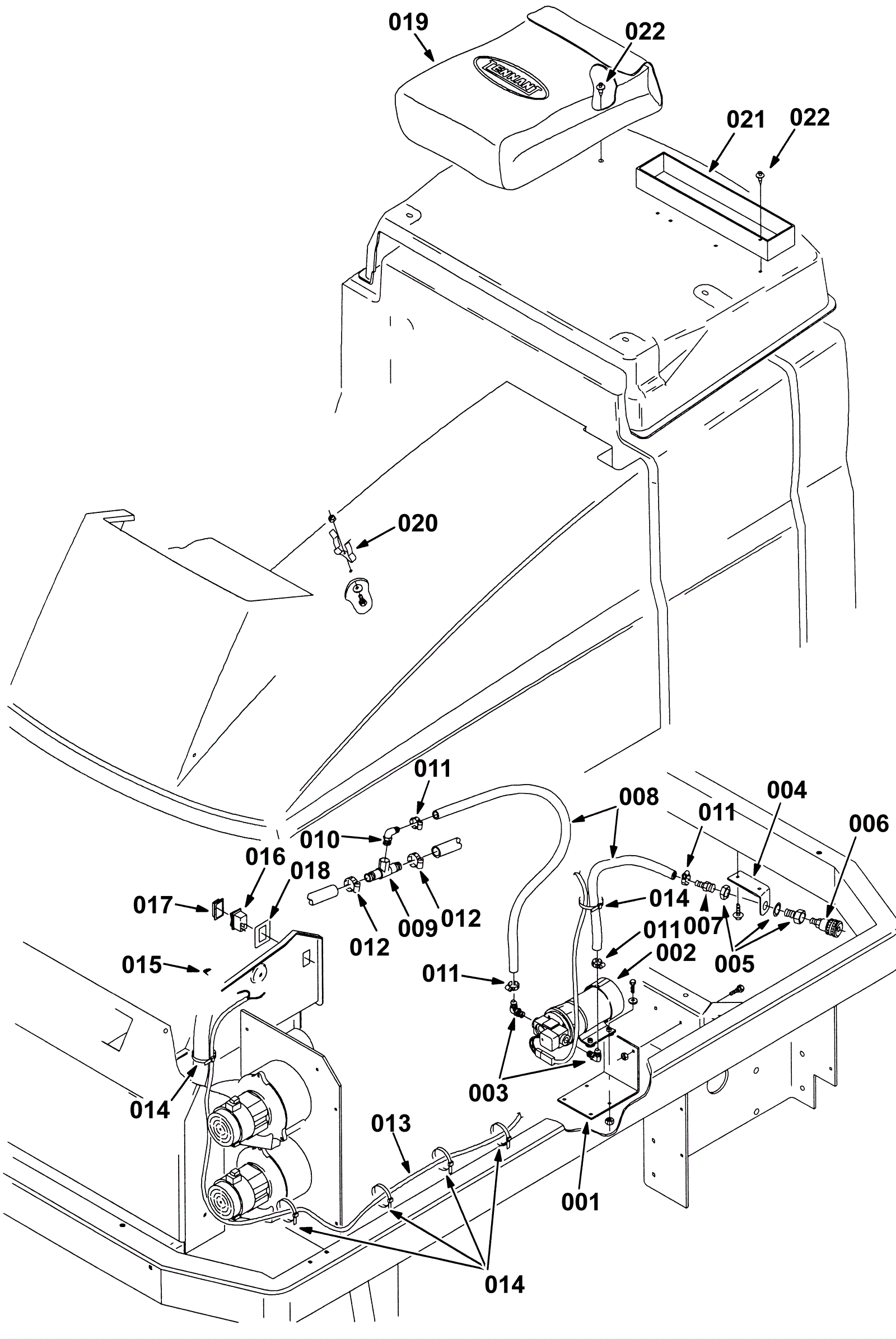

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
N/A
|
Not available |
1 |
Pump bracket |
|
002 |
N/A
|
Not available |
1 |
Pump assembly |
|
003 |
275-4308
|
FITTING, PLSTC, E90, BM08/PM04 (Tennant Industrial) |
2 |
|
|
004 |
275-4309
|
BRACKET, MTG, VALVE (Tennant Industrial) |
1 |
|
|
005 |
175-4814
|
Brass strainer fitting |
1 |
|
|
006 |
175-9723
|
Brass female quick connect fitting |
1 |
|
|
007 |
275-4310
|
FITTING, PLSTC, STR, BM08/PM04 (Tennant Industrial) |
1 |
|
|
008 |
275-4311
|
HOSE, PVC, WIR, 0.50ID 0.74OD 037.0L,CLR (Tennant Industria |
2 |
|
|
009 |
175-9697
|
FITTING, PLSTC, TEE, BM12/BM12/PF08, BR (Tennant Industrial |
1 |
|
|
010 |
175-3430
|
Plastic fitting |
1 |
|
|
011 |
175-6081
|
Hose clamp |
4 |
|
|
012 |
175-0199
|
Hose clamp |
2 |
|
|
013 |
N/A
|
Not available |
1 |
Power wand harness |
|
014 |
175-2162
|
Nylon wire tie |
6 |
|
|
015 |
N/A
|
Not available |
1 |
|
|
016 |
175-9718
|
SPST on-off rocker switch |
1 |
|
|
017 |
175-9946
|
Rocker switch seal cover |
1 |
|
|
018 |
275-4313
|
LABEL, SYMBOL, SOLUTION CNTRL (Tennant Industrial) |
1 |
|
|
019 |
175-9416
|
Power bag |
1 |
|
|
020 |
275-3939
|
CLIP, GRIP, FINGER, 1.00-1.88D,WHITE VYL (Tennant Industria |
1 |
|
|
021 |
275-4314
|
Tray wand |
1 |
|
|
022 |
175-3378
|
Rivet 1/4 x 57/64 plastic |
7 |
|
|
