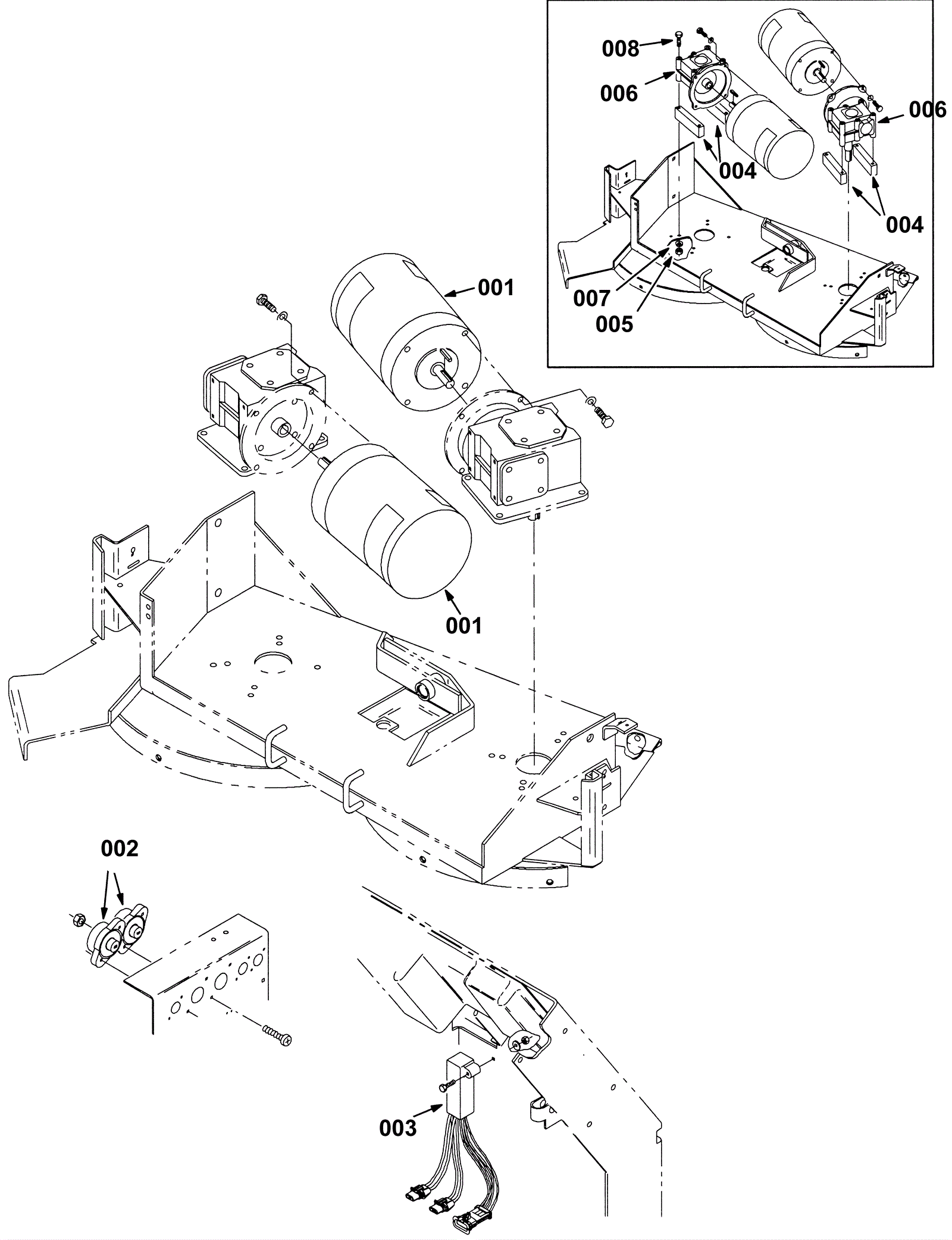

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
N/A
|
Not available |
1 |
MOTOR KIT, HD (Tennant Industrial)
|
|
001 |
275-4273
|
Motor (OBSOLETE) |
2 |
|
|
002 |
175-9141
|
Resetable circuitbreaker 50 amp |
2 |
|
|
003 |
175-0757
|
SHUNT, 2 HD MOTOR, RED [SCB 515] (Tennant Industrial) |
1 |
|
|
004 |
N/A
|
Not available |
4 |
|
|
005 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
8 |
|
|
006 |
N/A
|
Not available |
2 |
|
|
007 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
008 |
175-0723
|
SCREW, HEX, M8 X 1.25 X 160, 8.8 (Tennant Industrial) |
8 |
|
|
