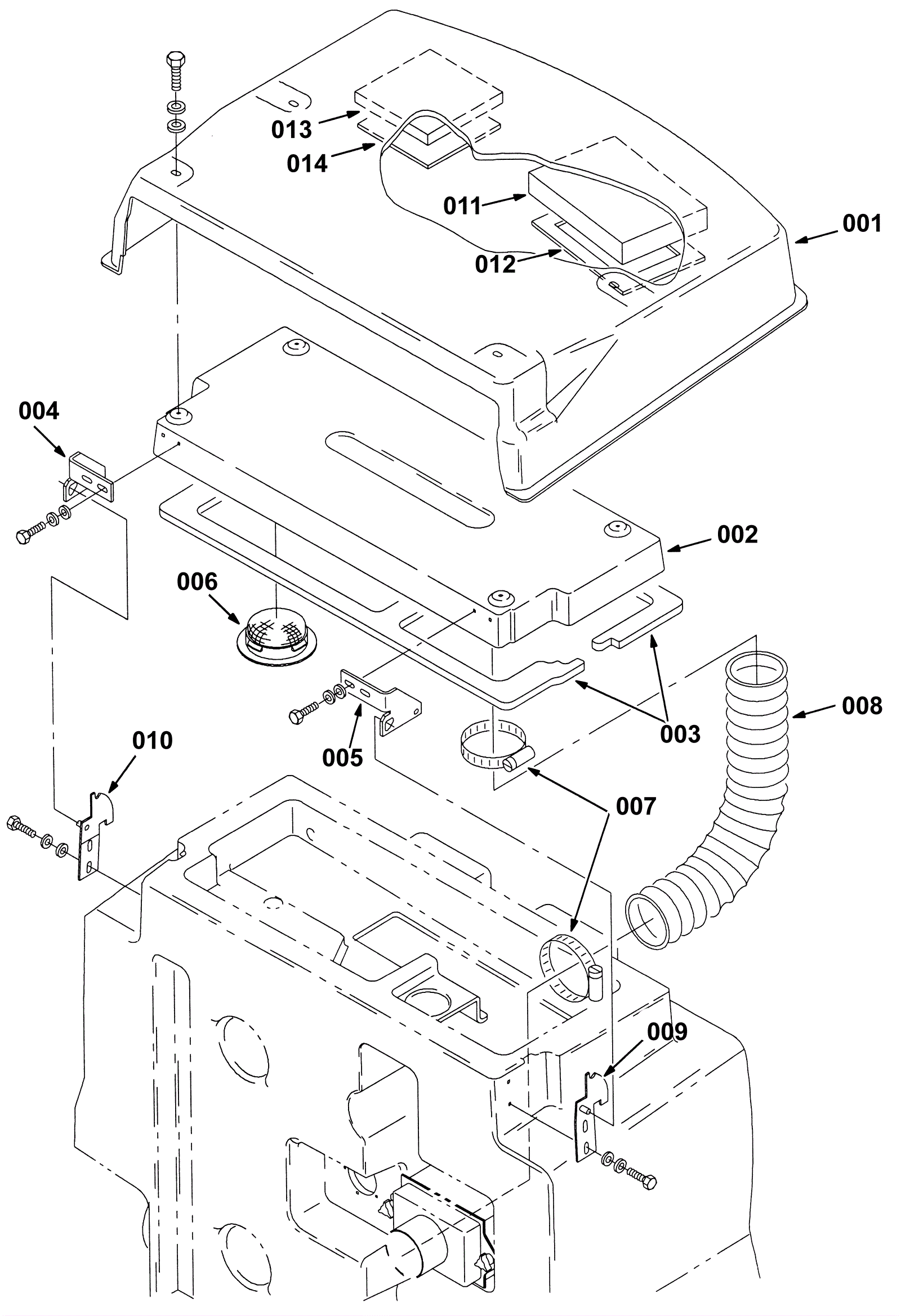

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
N/A
|
Not available |
1 |
Cover and label assembly
|
|
002 |
N/A
|
Not available |
1 |
TANK, DEMISTER (Tennant Industrial)
|
|
003 |
275-4143
|
GASKET, SET, .50TH, NEO CLSD CELL (OBSOLETE) |
1 |
|
|
004 |
N/A
|
Not available |
1 |
HINGE WLDT, TANK, TOP, RH (Tennant Industrial)
|
|
005 |
N/A
|
Not available |
1 |
HINGE WLDT, TANK, TOP, LH (Tennant Industrial)
|
|
006 |
275-4146
|
SCREEN, VACFAN (Tennant Industrial) |
1 |
|
|
007 |
175-5205
|
Wormdrive hose clamp |
2 |
|
|
008 |
275-4147
|
HOSE, FLEX, VACUUM, 03.0D, 023.5L (Tennant Industrial) (OBS |
1 |
|
|
009 |
N/A
|
Not available |
1 |
HINGE WLDT, TANK, BOTTOM, LH (Tennant Industrial)
|
|
010 |
N/A
|
Not available |
1 |
HINGE WLDT, TANK, BOTTOM, RH (Tennant Industrial)
|
|
011 |
275-4150
|
FILTER, FOAM, 1.50, 06.0W 09.0L [PEU] (Tennant Industrial) |
1 |
|
|
012 |
N/A
|
Not available |
1 |
SEAL, RBR, CLSD, 0.25, TANK, SCRBR (Tennant Industrial)
|
|
013 |
275-4152
|
FILTER, FOAM, 0.75, 06.0W 06.0L [PEU] (Tennant Industrial) |
1 |
|
|
014 |
275-4153
|
SEAL, RBR, CLSD, 0.25, 5.80W 05.8L (Tennant Industrial) |
1 |
|
|
