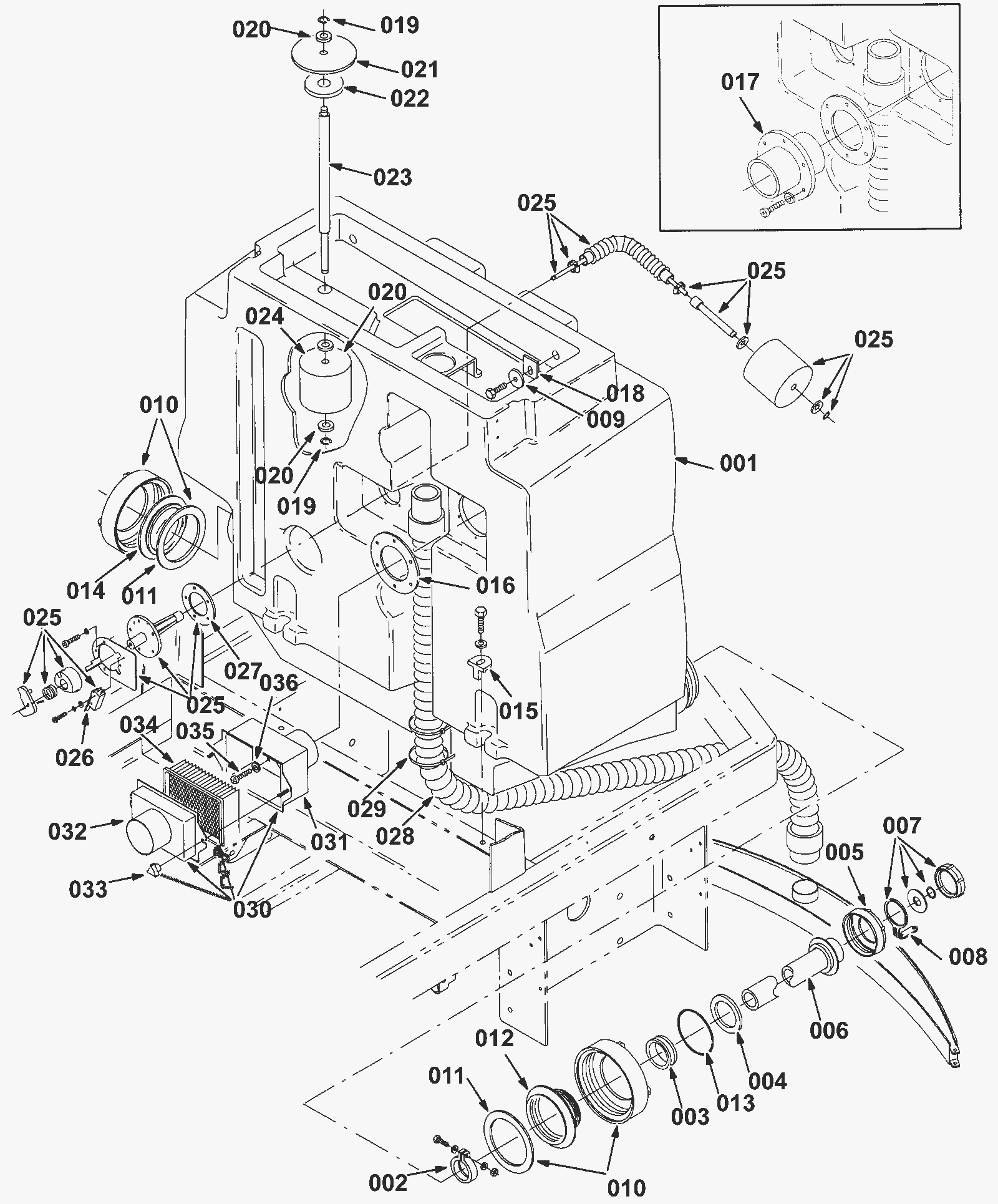

Recovery Tank Group

#PartDescription ReqNotesAvailability
001a N/A Not available 1 TANK, RECVY (Tennant Industrial)
001b N/A Not available 1 Recovery drain hose kit
002 175-3381 Plastic hose clamp 1.6 ID x .62 1
003 175-3387 Seal 1
004 175-3389 Lid gasket 1
005 175-3390 Drain tank cap 3.85 thread pye 1
006 175-0708 HOSE ASSY, DRAIN (Tennant Industrial) 1
007 175-3391 Drain cap kit 1 Includes 008
008 175-3392 Strap 1
010 175-3384 Tank cap 2 Includes 011
011 175-3385 Lid gasket 1
012 175-3386 Insert cover 1
013 175-3388 Drain cap gasket 1
014 175-3414 Tank cover 1
015 N/A Not available 2 Washer
016 N/A Not available 1 GASKET, .19, 3.06ID 5.12OD, 6/4.3BC (Tennant Industrial)
017 275-2274 FILTER KIT, VACFAN, SYN [510/515] (Tennant Industrial) 1
018 N/A Not available 2 Recovery drain hose kit
019 275-1977 RING, RETAINING, EXT, 0.50D, SS (Tennant Industrial) 2
020 275-0055 WASHER, FLAT, 0.52B 1.25D .06, NYL (Tennant Industrial) 3
021 N/A Not available 1 PLATE, PLSTC (Tennant Industrial)
022 N/A Not available 1 GASKET, NEO, .38, 1.00ID 3.00OD (Tennant Industrial)
023 N/A Not available 1 ROD, PLSTC (Tennant Industrial)
024 275-2279 FLOAT, FOAM, PYE (Tennant Industrial) 1
025 275-2280 LEVEL SENSING REC (Tennant Industrial) (OBSOLETE) 1 Includes 026 and 027
026 175-0337 Snap switch 1
027 275-2281 GASKET, NEO, .12, 2.00ID, 5/2.8BC (Tennant Industrial) 1
029b 275-2274 FILTER KIT, VACFAN, SYN [510/515] (Tennant Industrial) 1 Includes 030 - 036
030 275-2284 BOX ASSY, FLTR, AIR (Tennant Industrial) 1 Includes 031 - 033
031 275-2285 HOUSING WLDT [510] (Tennant Industrial) (OBSOLETE) 1
032 275-2286 COVER WLDT, FLTR, AIR (Tennant Industrial) (OBSOLETE) 1
033 275-2287 KNOB, STAR, 1.12D 3EAR 0.8L .25-20,PLSTC (Tennant Industria 2
034a 175-2259 Vacuum fan filter 1 (OEM)
034b 991-9073 Vacuum fan filter 1 (NON-OEM)
