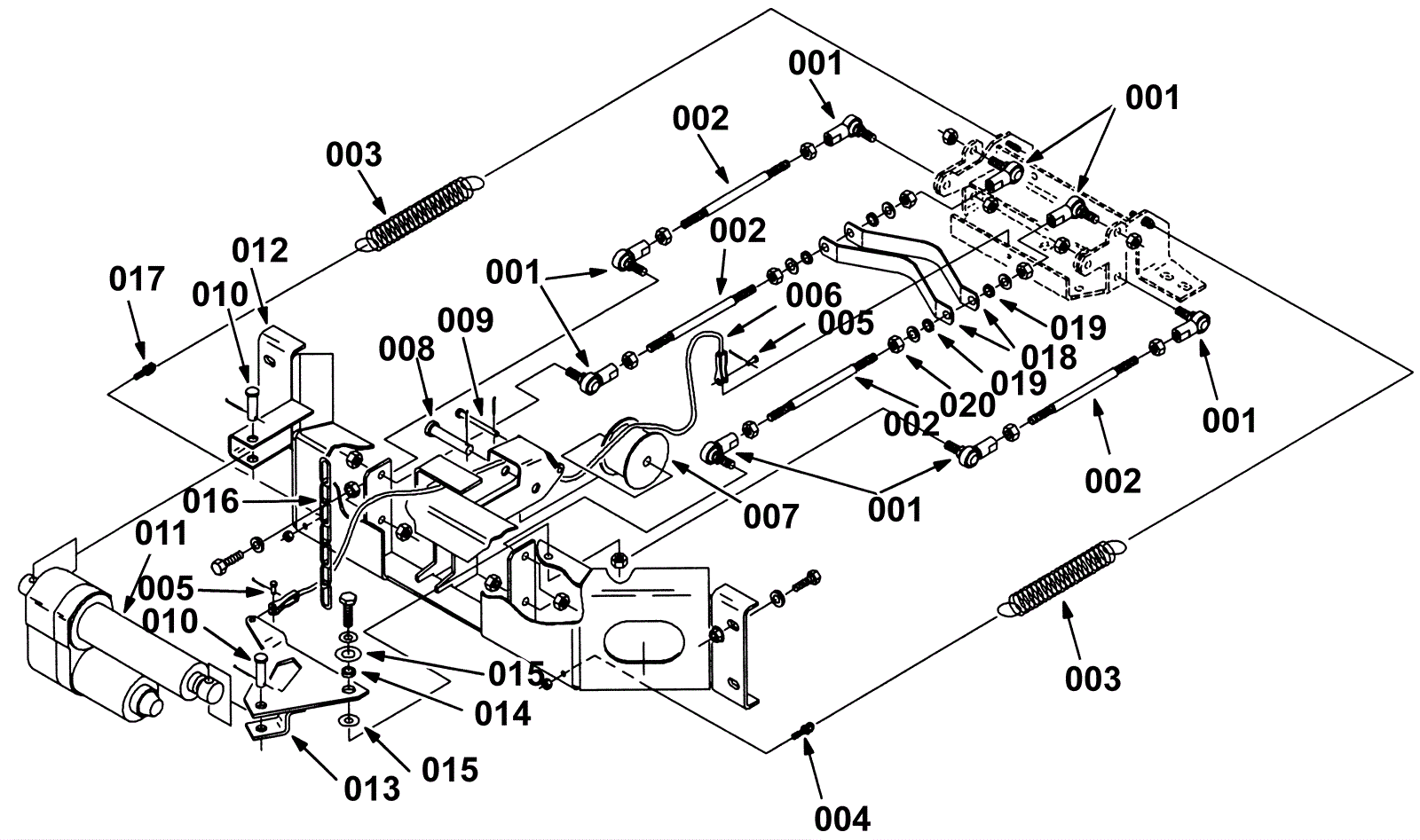

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
275-2260
|
LINK, SQGE (Tennant Industrial) |
4 |
|
|
001 |
175-0779
|
ROD-END, M10 X 1.5RH FEM M10 X 1.5STUD (Tennant Industrial) |
2 |
Includes 001 and 002 |
|
002 |
175-0780
|
ROD, THRD, 2 END, M10 X 1.5 07.4L (Tennant Industrial) |
1 |
|
|
003 |
275-2261
|
Tension spring (Tennant Industrial) |
2 |
|
|
004 |
N/A
|
Not available |
1 |
|
|
005 |
175-9276
|
Clevis pin 3/16 x 3/4 |
2 |
|
|
006 |
275-2262
|
CABLE, GLV .13D 011.5L .2CLEVIS/.2CLEVIS (OBSOLETE) |
1 |
|
|
007 |
175-0798
|
DRUM, CABLE, LIFT (Tennant Industrial) |
1 |
|
|
008 |
175-0716
|
Clevis pin |
1 |
|
|
009 |
175-0799
|
PIN, CLEVIS, 0.25D X 2.44L (Tennant Industrial) |
1 |
|
|
010 |
175-2382
|
Clevis pin |
2 |
|
|
011 |
175-0794
|
ACTUATOR, 36VDC, 02.1STRK, 500LB (Tennant Industrial) |
1 |
|
|
012 |
275-2263
|
BRACKET WLDT, MTG, SQGE (Tennant Industrial) (OBSOLETE) |
1 |
|
|
013 |
N/A
|
Not available |
1 |
BELLCRANK WLDT, LIFT, SQGE (Tennant Industrial)
|
|
014 |
275-2265
|
Bearing sleeve (Tennant Industrial) (OBSOLETE) |
1 |
|
|
015 |
175-3347
|
Washer .61 thrust |
2 |
|
|
016 |
175-2094
|
Chain |
1 |
|
|
017 |
N/A
|
Not available |
1 |
BOLT, EYE, .25-20 X 2.60, 0.21 EYE (Tennant Industrial)
|
|
018 |
275-2267
|
Squeegee centering spring (Tennant Industrial) |
2 |
|
|
019 |
175-2293
|
Washer |
4 |
|
|
020 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
