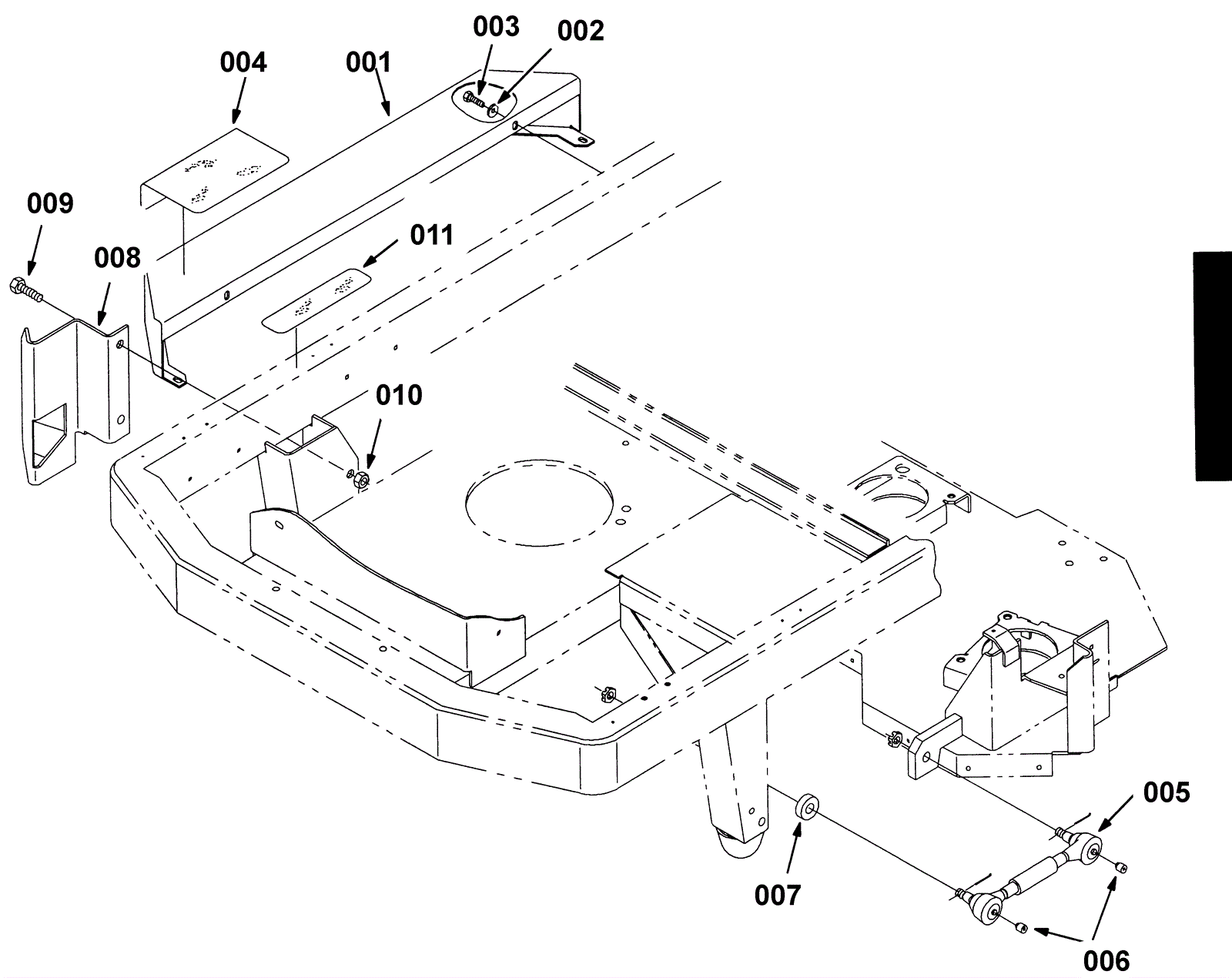

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
275-2222
|
BUMPER, SIDE (Tennant Industrial) (OBSOLETE) |
1 |
|
|
002 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
003 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
|
|
004 |
275-0653
|
Floor tread |
1 |
|
|
005 |
275-2563
|
Rod-end link assembly (Tennant Industrial) |
2 |
|
|
006 |
175-3248
|
Grease fitting |
4 |
|
|
007 |
275-2563
|
Rod-end link assembly (Tennant Industrial) |
2 |
|
|
008 |
275-2224
|
Mounting bracket weldment (Tennant Industrial) (OBSOLETE) |
1 |
|
|
009 |
999-1223
|
Screw M12-1.75 x 25mm hex head stainless steel |
2 |
|
|
010 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
|
011 |
275-2225
|
TREAD, NON-SKID, 01.9W 08.0L (Tennant Industrial) |
1 |
|
|
