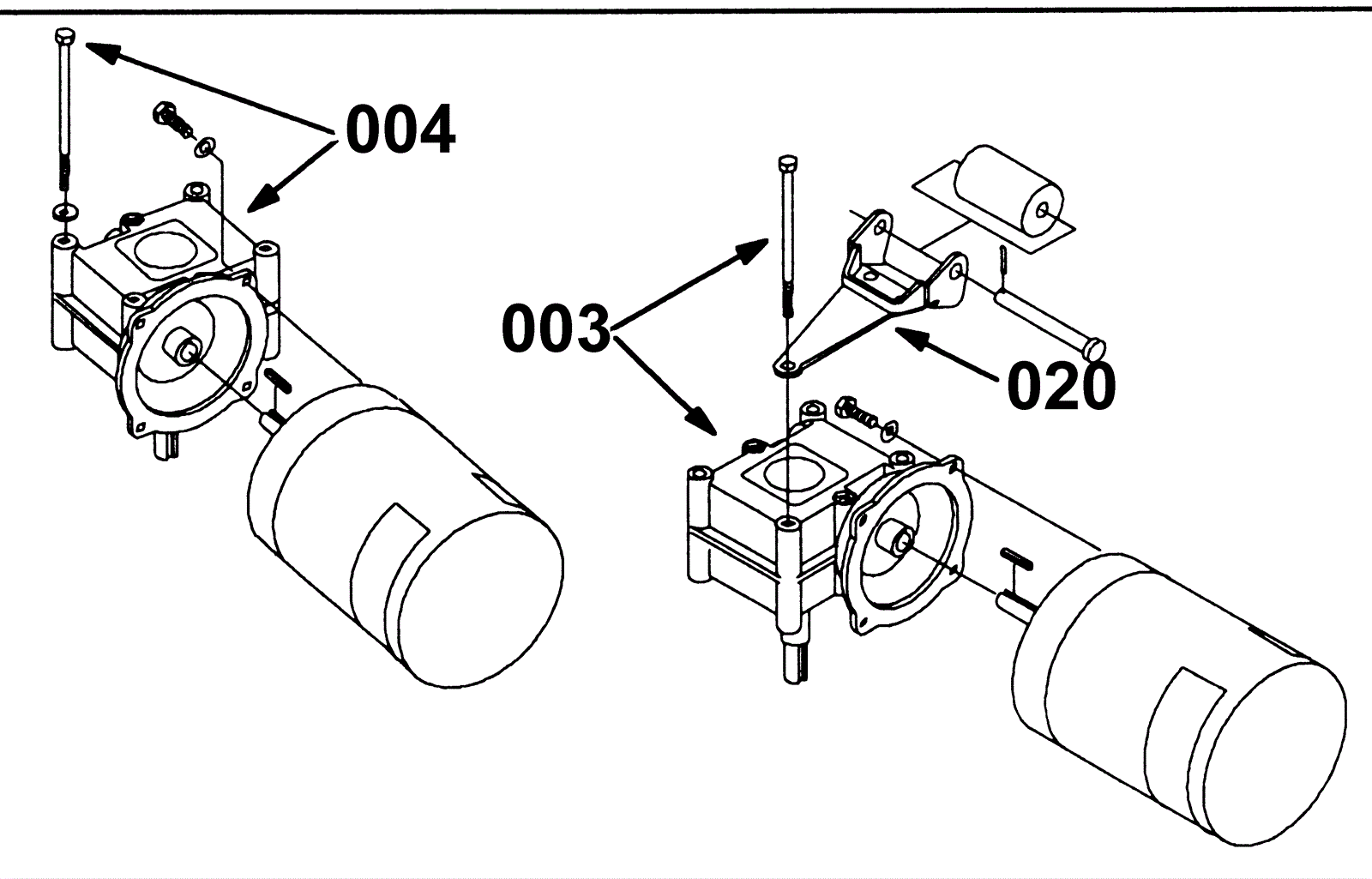

Scrubhead Drive Group

#PartDescription ReqNotesAvailability
001 275-2204 FRAME WLDT, MTG, SCB HEAD (Tennant Industrial) (OBSOLETE) 1
002 275-2160 MOTOR, ELE, 36VDC 2200RPM 1.00HP 28.0A (Tennant Industrial) 3
003 175-4973 Scrubhead kit (OBSOLETE) 2
004 N/A Not available 1
005 275-2205 SCREW, HEX, .38-16 X 0.88, G5 (Tennant Industrial) 12
006 999-0120 Washer 3/8 SAE flat 12
007 175-9525 Brush drive hub 3
008 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 3
009 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 3
010 999-0105 Washer 5/16 external star lock zinc plated 3
011 275-0397 Square keyway 3
012 275-2206 Scrub head front skirt (Tennant Industrial) (OBSOLETE) 1
013 275-2207 RIVET, PLSTC, .325D X 0.79 (Tennant Industrial) 12
014 999-0123 Washer 1/4 SAE flat zinc plated 12
015a 275-2208 WHEEL, 04.0D 0.89W 0.64B 1
015b 991-3067 Wheel 1 (NON-OEM)
016 275-0855 Tube 1
017 999-1297 Screw M8 x 50mm hex head stainless steel 1
018 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
019 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
020 275-2209 Scrub head stop bracket (Tennant Industrial) (OBSOLETE) 1
021 175-2116 Clevis pin 1
022 175-2512 Bumper roller 1
023 175-9371 CIRCUITBREAKER, 40.0A [RESETABLE] (Tennant Industrial) 1
024 N/A Not available 2 (Gearbox)
025 275-2211 Gearbox (Tennant Industrial) (OBSOLETE) 1
026 275-2212 BRACKET, MTG, GEARBOX (Tennant Industrial) (OBSOLETE) 3
027 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 9
028 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 9
029 N/A Not available 12 Screw
030 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 14
031 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2
032 275-2214 STOP WLDT, HEAD, SCB (Tennant Industrial) (OBSOLETE) 1
033 275-2215 PLATE, SPACER (Tennant Industrial) (OBSOLETE) 4
034 275-2216 Spacer (Tennant Industrial) (OBSOLETE) 2
035 175-0736 LABEL SET, INFO/HZRD [MAXPRO] (Tennant Industrial) 1
