| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
275-2201
|

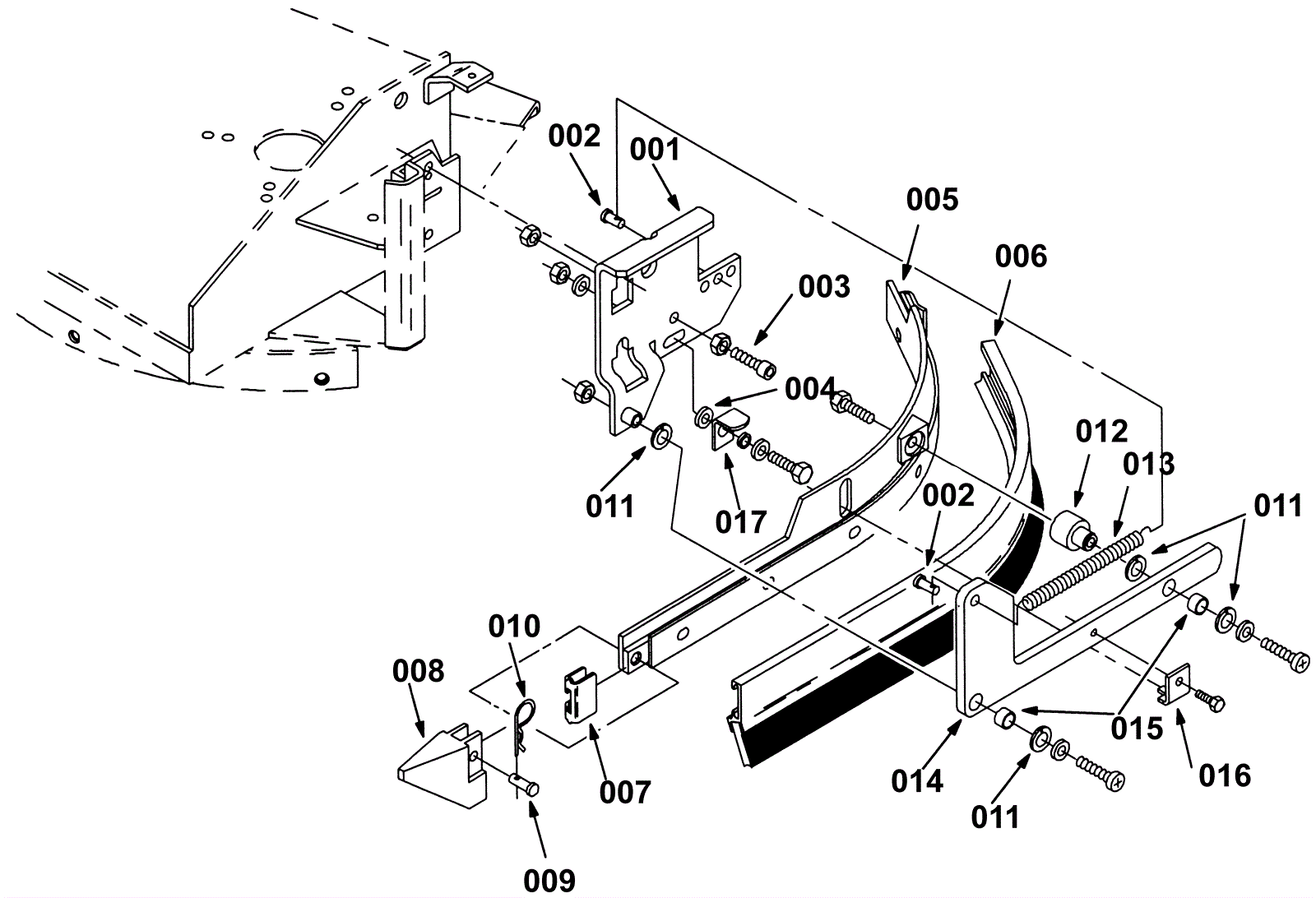

SQUEEGEE ASSY, SIDE, LH (Tennant Industrial) (OBSOLETE) |
1 |
Includes 001 - 017 |
|
001 |
275-2202
|
BRACKET WLDT, LH (Tennant Industrial) |
1 |
|
|
002 |
275-0146
|
PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) |
2 |
|
|
003 |
175-6821
|
SCREW, SOC, M8 X 1.25 X 35, 12.9 (Tennant Industrial) |
1 |
|
|
004 |
275-2194
|
SPACER (Tennant Industrial) |
1 |
|
|
005 |
275-2203
|
FRAME WLDT, SQGE, SIDE, LH (Tennant Industrial) (OBSOLETE) |
1 |
|
|
006b |
275-9740
|
Side squeegee blade gum rubber |
1 |
|
|
007 |
175-3357
|
Squeegee blade retainer |
1 |
|
|
008 |
275-2196
|
GUIDE, SQGE, SIDE (Tennant Industrial) (OBSOLETE) |
1 |
|
|
009 |
175-3351
|
Clevis pin |
1 |
|
|
010 |
175-2117
|
Cotter pin |
1 |
|
|
011 |
175-3354
|
Thrust washer |
4 |
|
|
012 |
275-2197
|
BAR, RND, PIVOT, MTG, SQGE (Tennant Industrial) (OBSOLETE) |
1 |
|
|
013 |
175-3345
|
Extension spring |
1 |
|
|
014 |
275-2198
|
BELLCRANK, LIFT, SQGE, SIDE (Tennant Industrial) |
1 |
|
|
015 |
175-3355
|
Sleeved bushing |
2 |
|
|
016 |
275-2199
|
Stop angle (Tennant Industrial) |
1 |
|
|
017 |
275-2200
|
ANGLE, MTG, STL, .18 1.3 1.0 00.8L (Tennant Industrial) |
1 |
|
|
