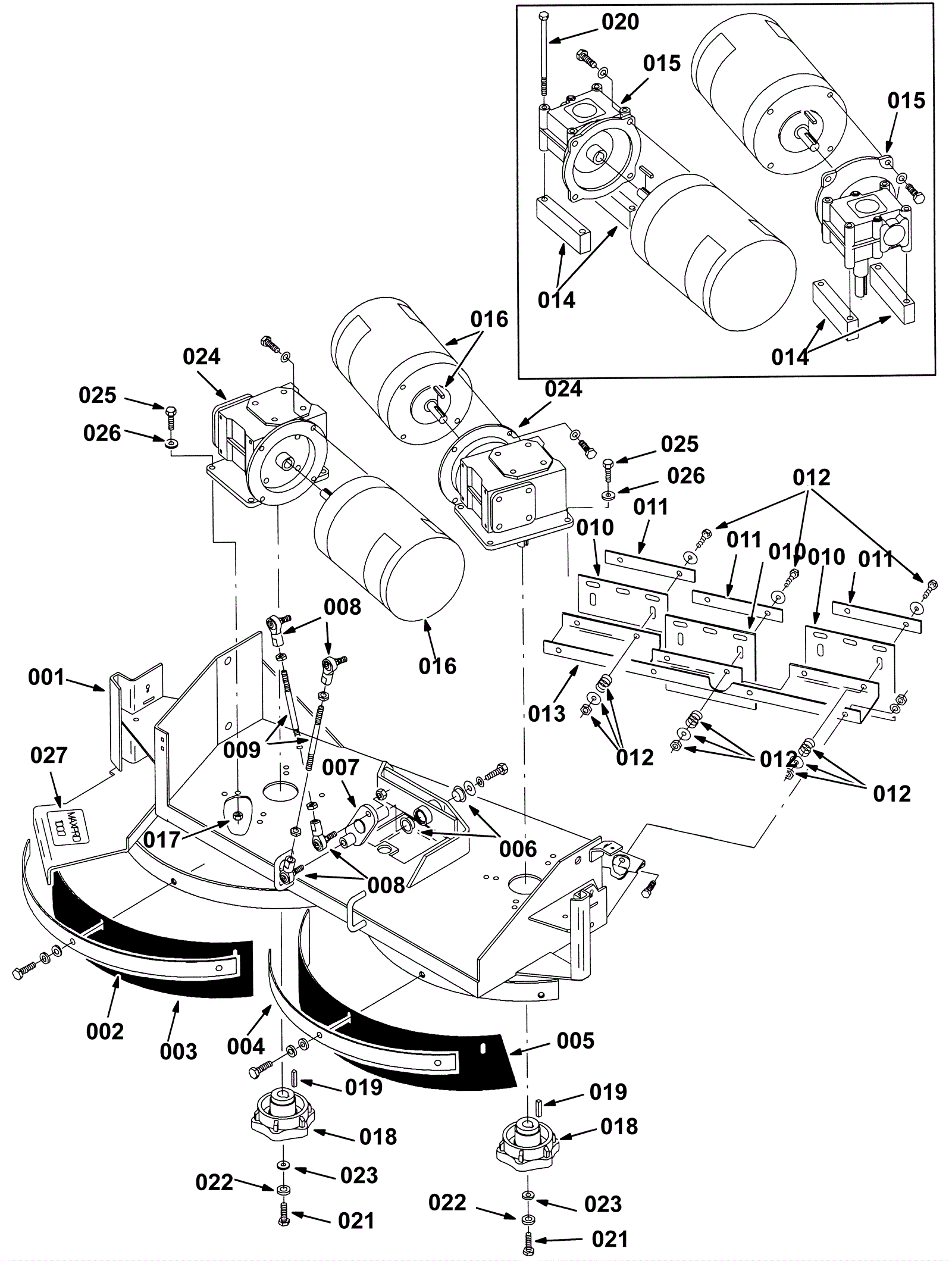

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
N/A
|
Not available |
1 |
FRAME WLDT, HEAD, SCRBR [515] (Tennant Industrial)
|
|
002 |
N/A
|
Not available |
1 |
RETAINER, SKIRT, .12, 1.3W, BLK [CURVED] (Tennant Industria
|
|
003 |
275-2149
|
SKIRT, RBR, .12, 04.50W 25.92L, 03/ SL |
1 |
|
|
004 |
N/A
|
Not available |
1 |
STRIP, RETAINER (Tennant Industrial)
|
|
005 |
N/A
|
Not available |
1 |
SKIRT, RBR, .12, 04.50W 21.86L, 03/ SL (Tennant Industrial)
|
|
006 |
N/A
|
Not available |
1 |
Bushing kit |
|
007 |
N/A
|
Not available |
1 |
SHAFT WLDT, EQUALIZER, HEAD, SCB (Tennant Industrial)
|
|
008 |
175-0779
|
ROD-END, M10 X 1.5RH FEM M10 X 1.5STUD (Tennant Industrial) |
4 |
|
|
009 |
275-2154
|
ROD, THRD, 2 END, M10X1.5 06.0 6DEG BEND (Tennant Industria |
2 |
|
|
010 |
275-2155
|
SKIRT, RBR, .12, 06.31W 06.60L, 05/ SL (Tennant Industrial) |
3 |
|
|
011 |
N/A
|
Not available |
3 |
RETAINER, SKIRT, .12, 1.0W X 06.6L, BLK (Tennant Industrial
|
|
012 |
N/A
|
Not available |
6 |
Skirt spring retaining kit
|
|
013 |
N/A
|
Not available |
1 |
BRACKET, MTG, SKIRT, REAR (510) (Tennant Industrial)
|
|
014 |
N/A
|
Not available |
4 |
Gearbox spacer
|
|
015 |
N/A
|
Not available |
2 |
|
|
016 |
275-2160
|
MOTOR, ELE, 36VDC 2200RPM 1.00HP 28.0A (Tennant Industrial) |
2 |
|
|
017 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
8 |
|
|
018 |
175-9525
|
Brush drive hub |
2 |
|
|
019 |
275-0397
|
Square keyway |
2 |
|
|
020 |
999-9144
|
Screw M8-1.25 x 150mm 8.8 hex |
8 |
|
|
021 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
022 |
999-0105
|
Washer 5/16 external star lock zinc plated |
2 |
|
|
023 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
024 |
275-2161
|
GEARBOX, 90, :1RATIO,[NEMA56C]W/ MTG (Tennant Industrial) |
2 |
|
|
025 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
8 |
|
|
026 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
8 |
|
|
027 |
175-0736
|
LABEL SET, INFO/HZRD [MAXPRO] (Tennant Industrial) |
1 |
|
|
