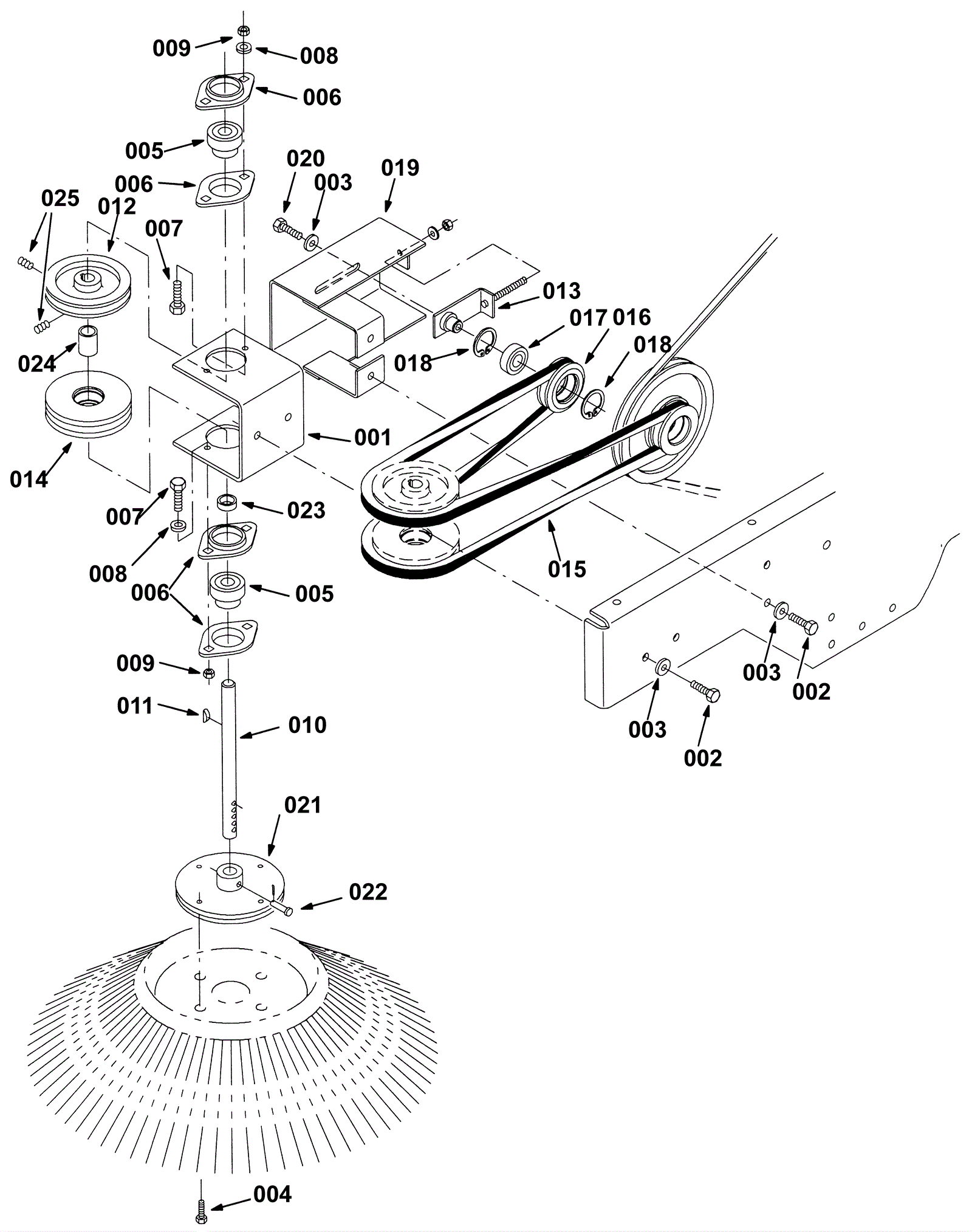

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
275-2089
|
Side brush mounting bracket ( Tennant Industrial) (OBSOLETE) |
1 |
|
|
002 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
4 |
|
|
003 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
5 |
|
|
004 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
4 |
|
|
005 |
175-9080
|
Bearing with collar |
2 |
|
|
006 |
175-9079
|
Bearing flange |
4 |
|
|
007 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
|
008 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
009 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
010 |
275-2090
|
SHAFT, DRIVE, BRUSH (Tennant Industrial) (OBSOLETE) |
1 |
|
|
011 |
175-3198
|
Woodruff key |
1 |
|
|
012 |
275-2091
|
Sheave (Tennant Industrial) (OBSOLETE) |
1 |
|
|
013 |
N/A
|
Not available |
1 |
BRACKET WLDT, PULLEY (Tennant Industrial)
|
|
014 |
275-2093
|
Idler sheave (Tennant Industrial) (OBSOLETE) |
1 |
|
|
015 |
275-2094
|
BELT, V, 63.0L [3V] (Tennant Industrial) |
1 |
|
|
016 |
275-2095
|
Idler sheave (Tennant Industrial) (OBSOLETE) |
1 |
|
|
017 |
175-9094
|
Ball bearing |
1 |
|
|
018 |
175-9098
|
Basic retaining ring (Tennant Industrial) |
2 |
|
|
019 |
275-2096
|
BRACKET WLDT, IDLER (Tennant Industrial) (OBSOLETE) |
1 |
|
|
020 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
021 |
275-2097
|
PLATE, MTG (Tennant Industrial) (OBSOLETE) |
1 |
|
|
022 |
275-2098
|
PIN, CLEVIS, 0.25D X 1.50L (Tennant Industrial) (OBSOLETE) |
1 |
|
|
023 |
275-2099
|
Spacer sleeve (Tennant Industrial) (OBSOLETE) |
1 |
|
|
024 |
275-2100
|
Spacer sleeve (Tennant Industrial) (OBSOLETE) |
1 |
|
|
025 |
175-6783
|
SCREW, SET, SOC, M8 X 1.25 X 12, PL[45H] (Tennant Industria |
2 |
|
|
