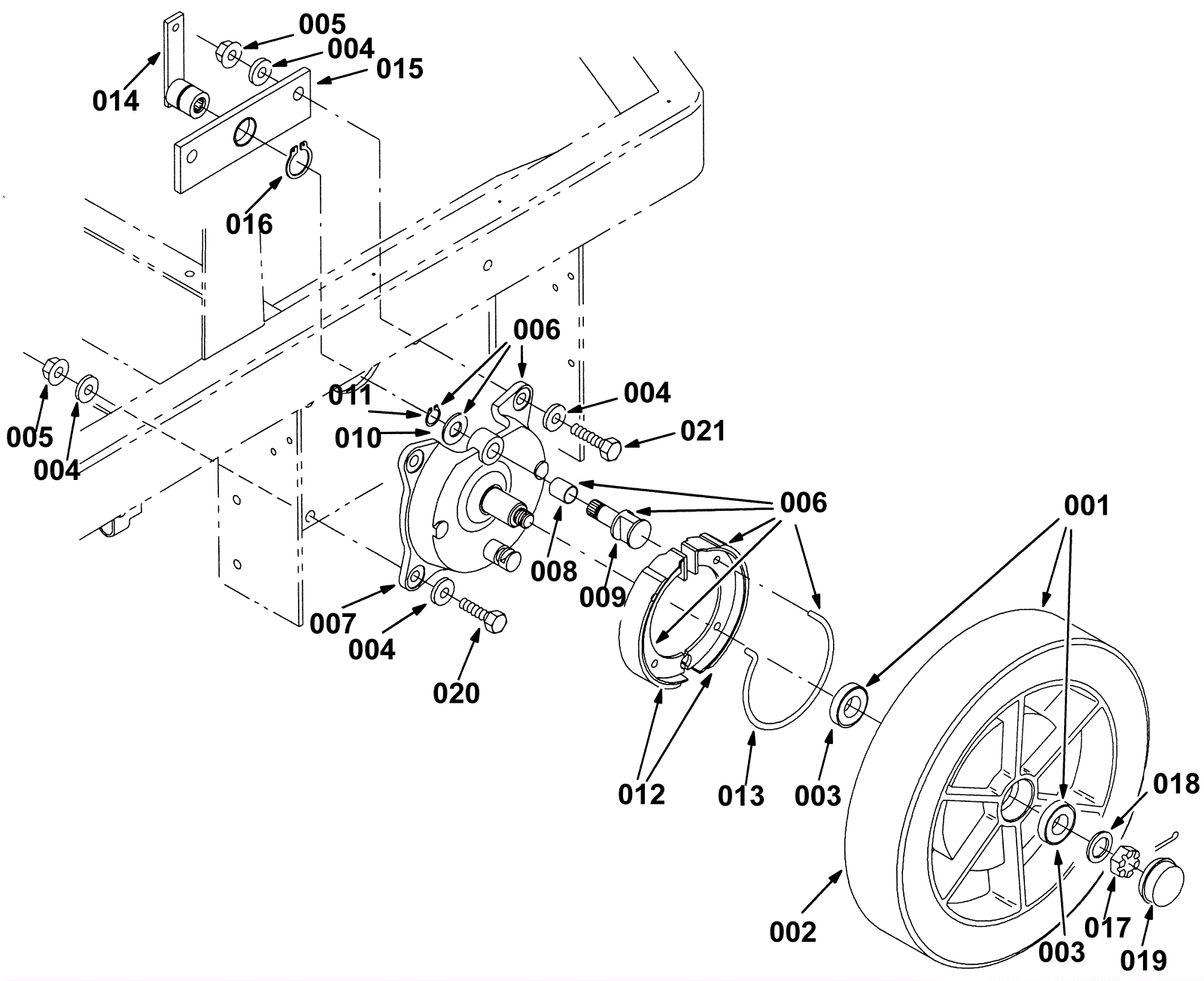

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
275-2030
|
Rear wheel assembly (Tennant Industrial) (OBSOLETE) |
2 |
Includes 002 and 003 |
|
002 |
275-2031
|
TIRE, SOLID, 16.0 X 3.5 X 12.1 (Tennant Industrial) |
1 |
|
|
003 |
275-2032
|
BEARING, BALL, 1.18B 2.44D 0.63W (Tennant Industrial) |
2 |
|
|
004 |
999-0114
|
Washer 1/2 SAE flat |
16 |
|
|
005 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
8 |
|
|
006 |
275-2033
|
BRAKE ASSY (Tennant Industrial) |
2 |
Includes 007 -013 |
|
007 |
275-2034
|
VR, PLATE, BACKING, BRAKE (Tennant Industrial) |
1 |
|
|
008 |
175-9960
|
Bushing |
1 |
|
|
009 |
275-2035
|
VR, CAM, PLT, BRAKE [NICKEL] (Tennant Industrial) |
1 |
|
|
010 |
175-9990
|
Washer M21-37 x 3 flat |
1 |
|
|
011 |
175-9991
|
Retainer ring |
1 |
|
|
012 |
175-9992
|
Brake shoe |
2 |
|
|
013 |
175-9993
|
Brake return spring |
1 |
|
|
014 |
275-2036
|
ARM WLDT, BRAKE (Tennant Industrial) (OBSOLETE) |
2 |
|
|
015 |
275-2037
|
Mounting bracket plate assembly (Tennant Industrial) (OBS) |
2 |
|
|
016 |
275-2038
|
RETAINER, RING (Tennant Industrial) |
2 |
|
|
017 |
275-2039
|
NUT, HEX, SLTD, .75-16 (Tennant Industrial) |
2 |
|
|
018 |
275-0810
|
Washer |
2 |
|
|
019 |
175-0641
|
CAP, HUB, DUST, 2.57D 0.77L (Tennant Industrial) |
2 |
|
|
020 |
175-0647
|
SCREW, HEX, M12 X 1.75 X 40, 8.8 (Tennant Industrial) |
4 |
|
|
021 |
275-2834
|
SCREW, HEX, M12 X 1.75 X 50, 8.8 (Tennant Industrial) |
4 |
|
|
