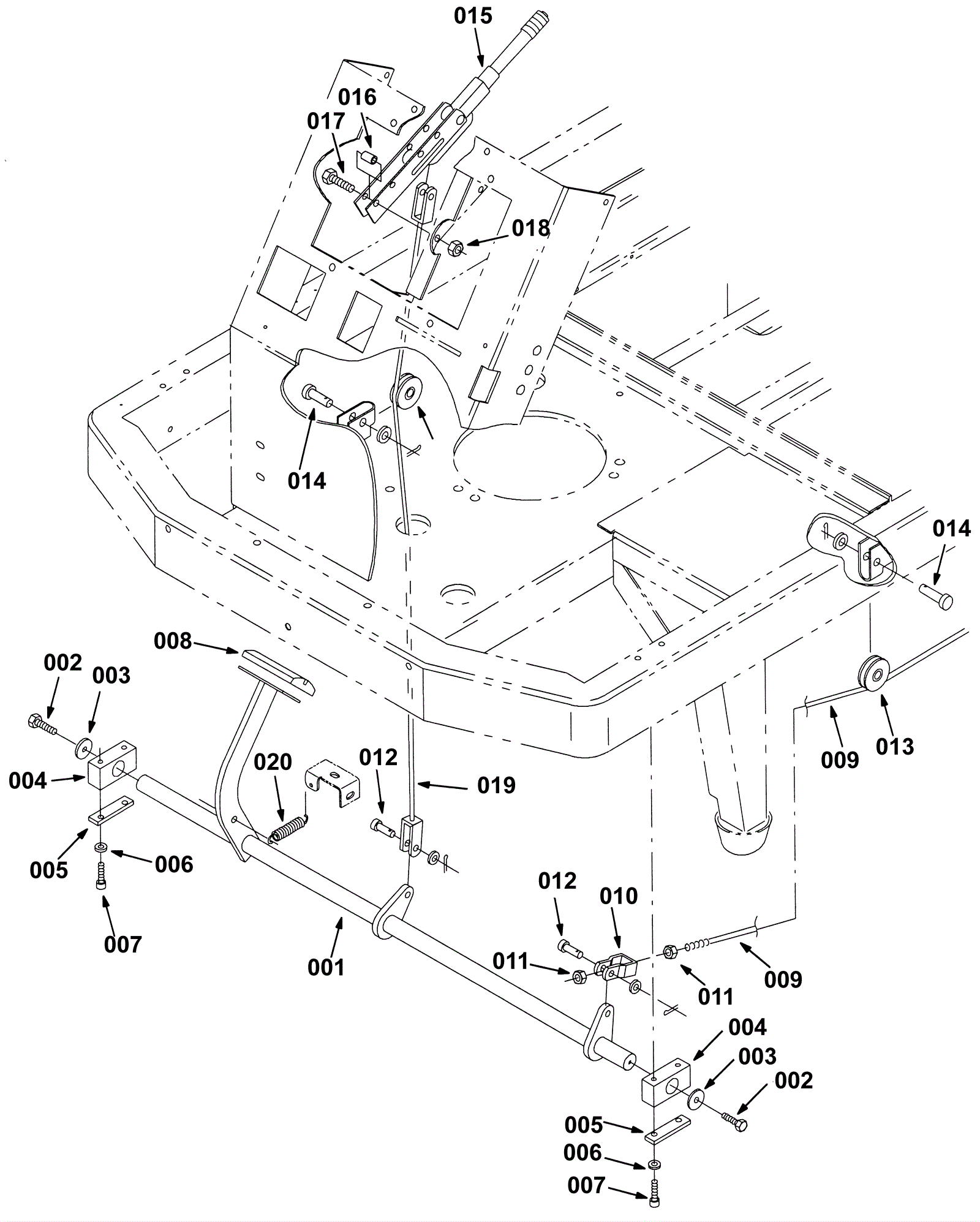

515SS Front Brake Linkage Group

#PartDescriptionPriceReqNotesAvailability
001 275-2016 Front brake shaft weldment (Tennant Industrial) (OBSOLETE) $604.10 1 usually ships 1-5 days
002 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
003 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
004 275-2017 BEARING, PILLOWBLOCK, 1.02B [SOLID PYE] (Tennant Industrial $31.23 2 usually ships 1-5 days
005 275-2018 Support bar (Tennant Industrial) (OBSOLETE) $91.10 2 usually ships 1-5 days
006 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
007 175-0614 Screw M8-1.25 x 60mm socket head (Tennant Industrial) $8.52 4 usually ships 5-16 days
008 175-3279 Pedal pad $29.92 1 usually ships 5-16 days
009 N/A Not available Call for price 1 Cable usually ships 3-26 days
010 N/A Not available Call for price 1 CLEVIS, ADJ, 0.38PIN, 0.39B (Tennant Industrial) usually ships 3-26 days
011 999-0170 Nut 3/8-16 hex plain finish $0.99 2 ships same day
012 175-0637 Clevis pin $3.30 2 usually ships 5-16 days
013 275-0912 Pulley $25.08 2 usually ships 1-5 days
014 N/A Not available Call for price 2 Clevis pin usually ships 3-26 days
015 275-2022 LEVER, BRAKE, PARKING (Tennant Industrial) $223.78 1 usually ships 1-5 days
016 275-2023 TUBE, 0.33ID 0.51OD 00.8L, STL, PL (Tennant Industrial) $13.86 2 usually ships 1-5 days
017 175-3436 Bolt 8mm-1.25 x 40mm hex head $3.30 2 usually ships 1-5 days
018 999-0665 Nut M8-1.25 flange lock $0.99 2 ships same day
019 N/A Not available Call for price 1 Cable usually ships 3-26 days
020 N/A Not available Call for price 1 Extension spring usually ships 3-26 days
