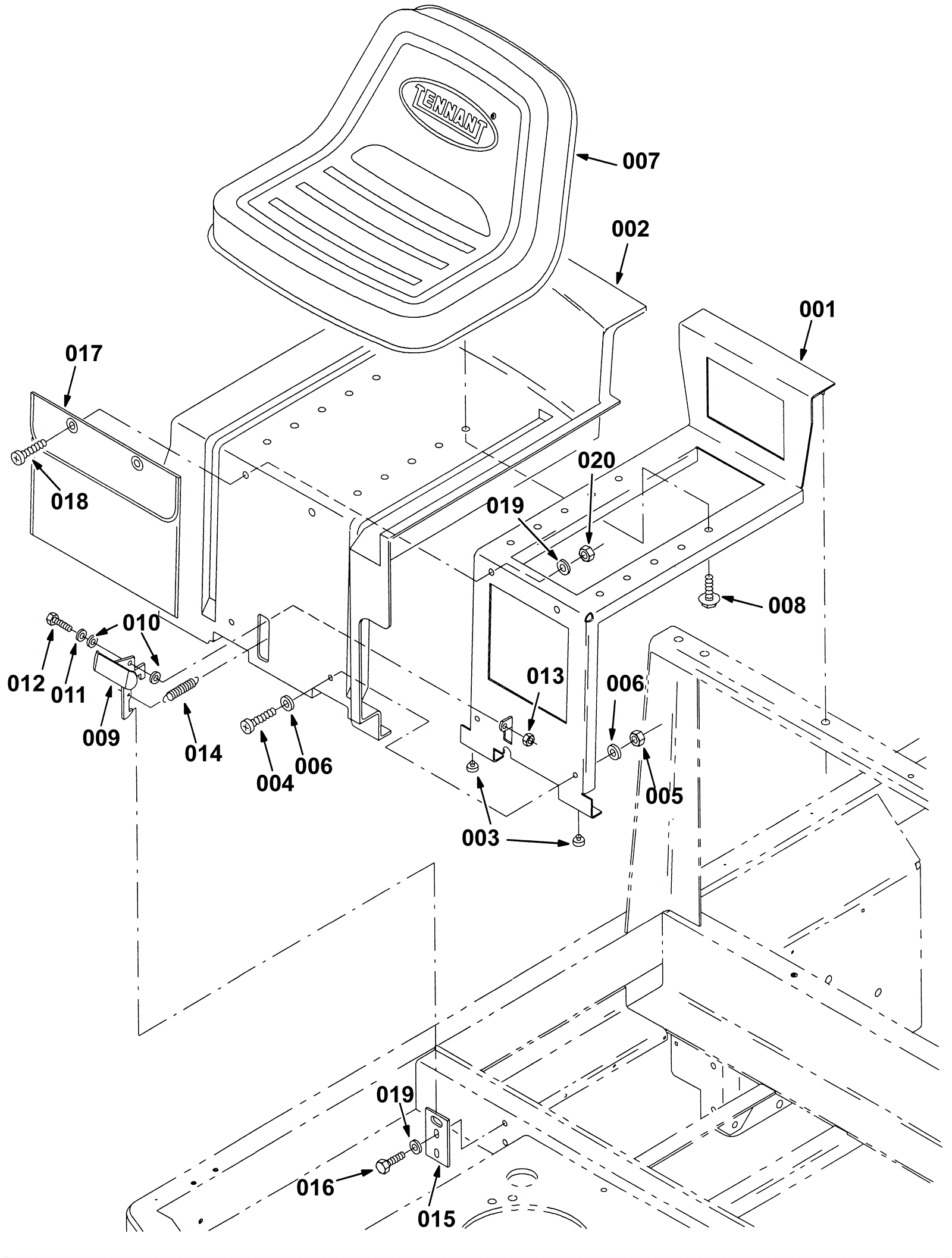

515SS Seat Assembly

#PartDescriptionPriceReqNotesAvailability
000 N/A Not available Call for price 1 Seat kit assembly usually ships 3-26 days
001 N/A Not available Call for price 1 FRAME WLDT, SPPT, SEAT (Tennant Industrial) usually ships 3-26 days
002 N/A Not available Call for price 1 PANEL, SHRD, SEAT SPPT (Tennant Industrial) usually ships 3-26 days
003 275-1992 BUMPER, REAR, RH, 0.09IN MATL (Tennant Industrial) $4.60 2 usually ships 1-5 days
004 275-1993 SCREW, PAN, PHL, M8 X 1.25 X 30, 4.8 (Tennant Industrial) $5.51 2 usually ships 1-5 days
005 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
006 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
007 275-1994 Seat assembly (TENNANT INDUSTRIAL) $512.69 1 usually ships 5-16 days
008 N/A Not available Call for price 4 Screw usually ships 3-26 days
009 N/A Not available Call for price 1 LATCH, SPPT, SEAT (Tennant Industrial) usually ships 3-26 days
010 175-8945 Washer 9/32 x 5/8 x 1/16 nylon $2.31 2 usually ships 1-5 days
011 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
012 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 1 ships same day
013 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
014 275-1997 SPRING, EXTN, 0.96OD 0.05WIR 01.4L (Tennant Industrial) $11.36 1 usually ships 1-5 days
015 N/A Not available Call for price 1 PLATE, STRIKE, LATCH (Tennant Industrial) usually ships 3-26 days
016 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
017 175-9796 Pouch $31.90 1 usually ships 1-5 days
018 275-1993 SCREW, PAN, PHL, M8 X 1.25 X 30, 4.8 (Tennant Industrial) $5.51 2 usually ships 1-5 days
019 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
020 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
