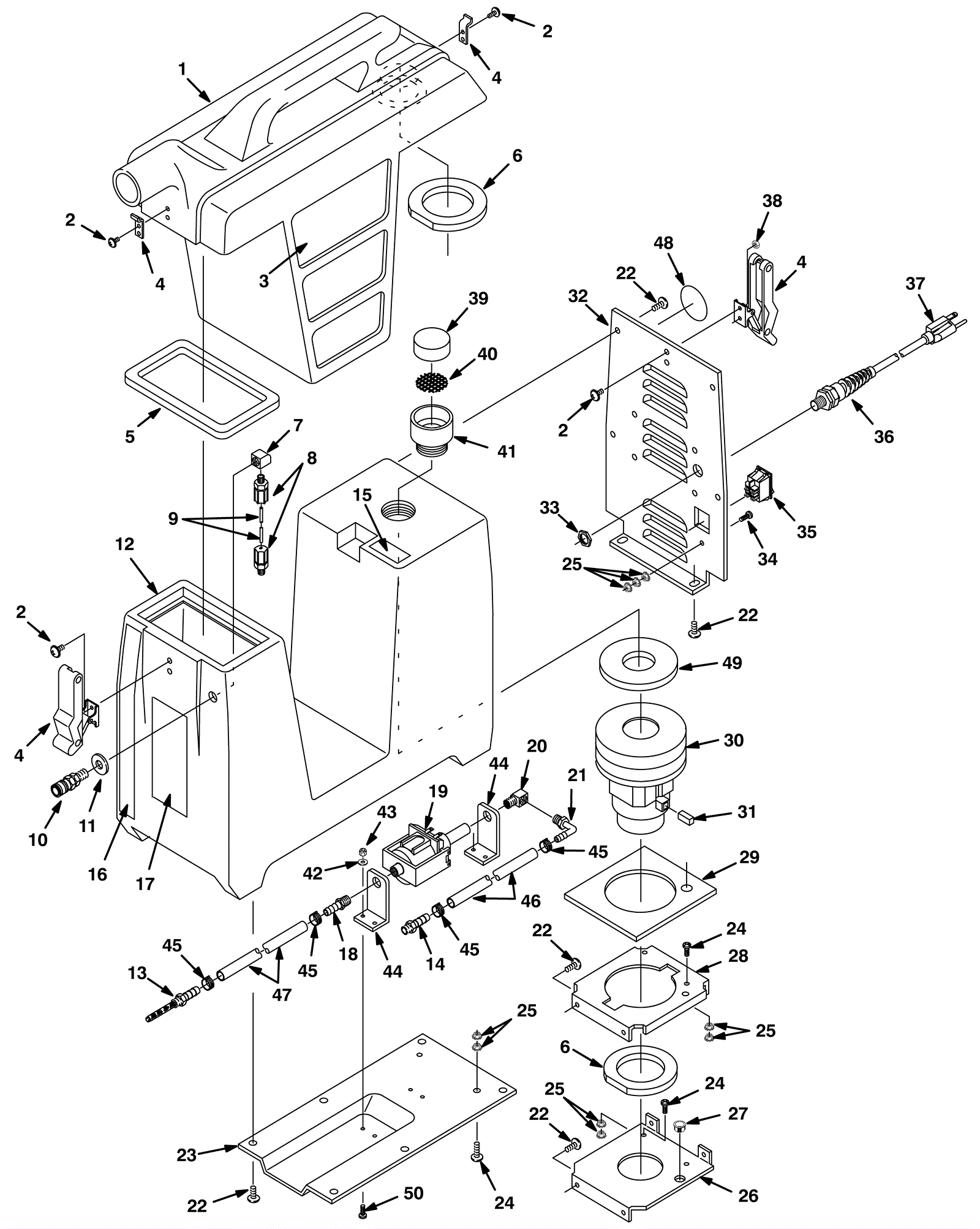

PX-2 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-1646 Recovery tank (white) (OBSOLETE) $232.32 1 usually ships 10-16 days
2 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 8 ships same day
3 N/A Not available Call for price 2 (Castex decal) usually ships 3-26 days
4 175-3369 Hood latch $32.78 2 usually ships 10-16 days
5 175-1647 Solution tank gasket $9.57 1 ships same day
6 175-1648 Gasket $6.49 2 usually ships 10-16 days
7 175-1649 90 degree elbow $6.05 1 ships same day
8 175-1650 1/8 inch male connector with nut $9.02 2 ships same day
9 175-1651 Nylon tubing .17 x 12 inch $11.77 1 usually ships 10-16 days
10 175-1652 1/8 inch female brass quick coupler $35.97 1 ships same day
11 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
12 175-1653 Solution tank (white) $307.78 1 usually ships 10-16 days
13 175-1654 Solution tank filter $26.73 1 ships same day
14 175-1655 Adapter fitting $12.21 1 usually ships 10-16 days
15 175-6107 Always drain decal $6.49 1 usually ships 10-16 days
16 175-1675 Gallon mark decal $4.75 1 usually ships 10-16 days
17 175-3906 Warning decal $10.12 1 usually ships 1-5 days
18 175-1659 Fitting $4.88 1 usually ships 10-16 days
19 175-1660 Solution pump $112.42 1 usually ships 10-16 days
20 175-1661 90 degree elbow fitting $5.50 1 usually ships 10-16 days
21 175-1662 90 degree elbow fitting $4.88 1 usually ships 10-16 days
22 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 14 ships same day
23 175-1663 Bottom panel (black) (OBSOLETE) $54.67 1 usually ships 10-16 days
24 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated $0.99 3 ships same day
25 999-0356 Nut 10-24 lock stainless steel $0.99 9 ships same day
26 175-1664 Baffle plate $31.35 1 usually ships 10-16 days
27 175-3134 Snap bushing $2.64 1 usually ships 1-5 days
28 175-1665 Vacuum motor mounting plate $42.35 1 usually ships 10-16 days
29 175-1666 Vacuum motor plate gasket $8.69 1 usually ships 10-16 days
30 275-5853 120V 2 stage vacuum motor $317.02 1 ships same day
31 175-0251 Carbon brush (pkg of 2) $39.05 2 usually ships 10-16 days
32 175-1668 Rear cover panel (black) $76.89 1 usually ships 10-16 days
33 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
34 999-1008 Screw 10-32 x 3/4 round head phillips stainless steel $0.99 1 ships same day
35 175-0006 Rocker switch $15.62 1 usually ships 10-16 days
36 175-6063 Strain relief $21.01 1 usually ships 10-16 days
37 175-1669 18/3 power cord 25 foot $77.33 1 usually ships 10-16 days
38 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
39 175-1670 Vacuum filter $7.04 1 ships same day
40 175-1671 Screen filter $12.21 1 usually ships 10-16 days
41 175-1672 Male adapter $11.44 1 usually ships 10-16 days
42 999-0393 Washer 3/16 flat aluminum $0.99 4 ships same day
43 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 ships same day
44 175-1673 Pump mounting bracket $23.21 2 usually ships 10-16 days
45 175-1656 Hose clamp $4.88 4 usually ships 10-16 days
46 175-1657 Hose 1/4 x 5 1/4 inch $9.46 1 ships same day
47 175-1658 Hose 1/4 x 10 1/2 inch $13.64 1 ships same day
49 175-3910 Vacuum motor gasket $9.57 1 usually ships 10-16 days
50 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated $0.99 4 ships same day
