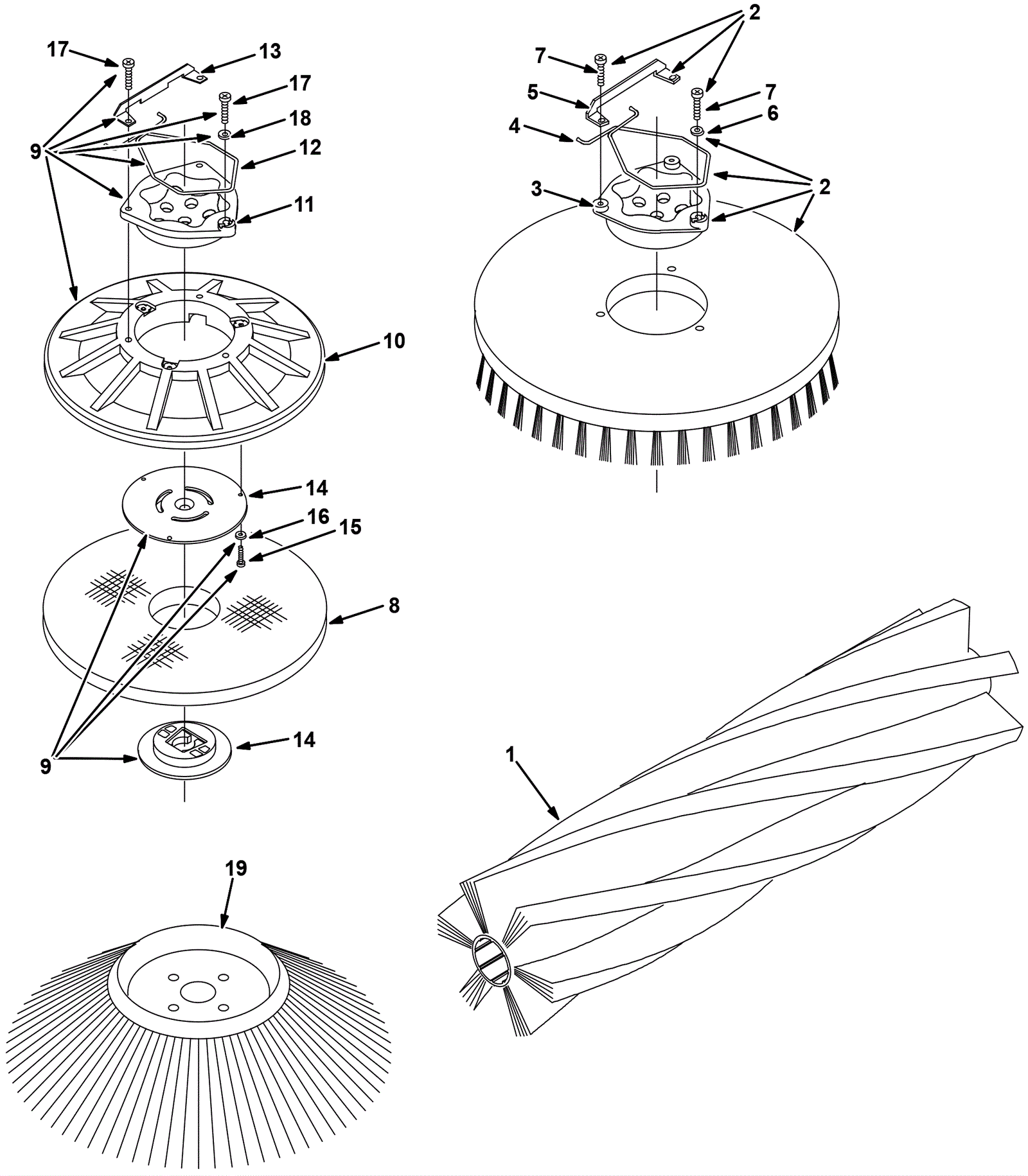

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-8282
|
BRUSH, SCB, 47L, 20SR, PYP, SPL (Tennant Industrial) |
2 |
|
|
1b |
275-8283
|
BRUSH, SCB, 47L, 20SR, SAB, SPL (Tennant Industrial) |
2 |
|
|
1c |
275-8284
|
BRUSH, SCB, 47L, 20SR, NYL, SPL (Tennant Industrial) |
2 |
|
|
2a |
275-6002
|
16 inch super abrasive scrubbing brush |
3 |
(includes 3-7) |
|
2b |
996-1034
|
16 inch nylon scrubbing brush |
3 |
(includes 3-7) |
|
2c |
996-1037
|
16 inch polypropelene scrubbing brush |
3 |
(includes 3-7) |
|
3 |
275-4936
|
Brush hub 3 hole |
1 |
|
|
4 |
175-2071
|
Brush retaining spring |
1 |
|
|
5 |
175-2072
|
Spring retainer bracket |
1 |
|
|
6 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
7 |
175-0505
|
Screw M6-1 x 35mm pan head stainless steel |
3 |
|
|
8a |
255-1692
|
16 inch premium brown stripping pad (pkg of 5) |
3 |
|
|
8b |
175-0518
|
16 inch scrubbing pad (blue)(each) |
3 |
|
|
8c |
175-0519
|
16 inch buffing pad (red)(each) |
3 |
|
|
8d |
255-1620
|
16 inch premium white polishing pad (pkg of 5) |
3 |
|
|
8e |
175-4909
|
Black strip head pad |
3 |
|
|
8f |
255-1647
|
16 inch Redwood maroon floor prep pad (pkg of 10) |
3 |
|
|
9 |
175-2405
|
Pad driver assembly |
3 |
(includes 10-18) |
|
10 |
996-1389
|
Pad driver |
1 |
|
|
11 |
175-2335
|
Brush adaptor |
1 |
|
|
12 |
175-2071
|
Brush retaining spring |
1 |
|
|
13 |
175-2072
|
Spring retainer bracket |
1 |
|
|
14 |
275-6264
|
Pad centering device |
1 |
|
|
15 |
175-2079
|
Screw M4-.07 x 35mm pan head stainless steel |
3 |
|
|
16 |
999-0266
|
Washer #8 SAE flat stainless steel |
3 |
|
|
17 |
175-0505
|
Screw M6-1 x 35mm pan head stainless steel |
3 |
|
|
18 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
19 |
275-1971
|
Polypropylene side broom (Tennant Industrial) |
1 |
(option) |
|
