| # | Part | Description |
Req | Notes | Availability |
|---|

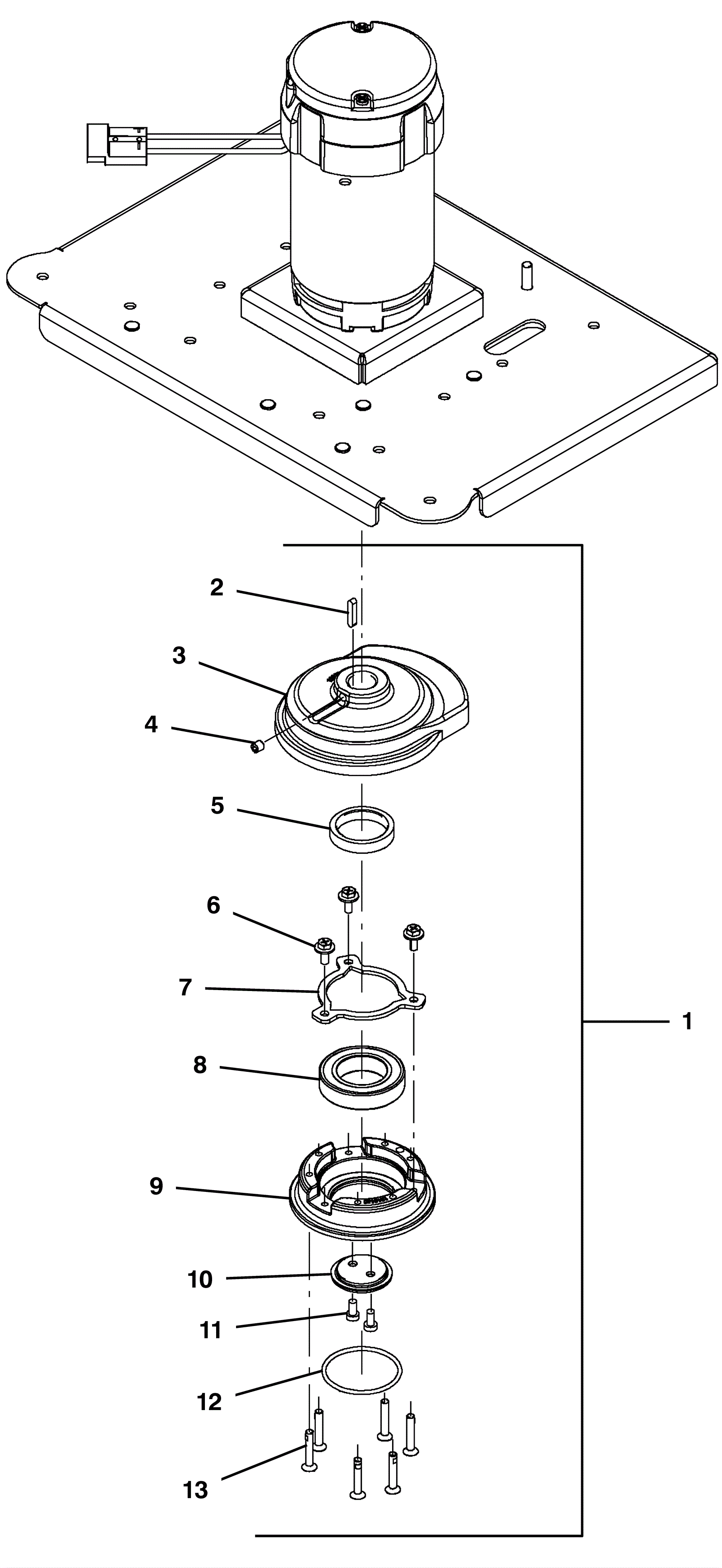

1 |
375-0104
|
Eccentric assembly |
1 |
(includes 2-13) |
usually ships 16-21 days |
2 |
275-1468
|
Square keyway |
1 |
|
usually ships 16-21 days |
3 |
N/A
|
Not available |
1 |
(eccentric balance step) |
usually ships 3-26 days |
4 |
999-1339
|
Screw M8-1.25 x 8mm set cup point |
1 |
|
usually ships 11-14 days |
5 |
N/A
|
Not available |
1 |
(eccentric spacer) |
usually ships 3-26 days |
6 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
3 |
|
usually ships 8-9 days |
7 |
N/A
|
Not available |
1 |
(outer retainer plate) |
usually ships 3-26 days |
8 |
375-0286
|
Ball bearing |
1 |
|
usually ships 16-21 days |
9 |
N/A
|
Not available |
1 |
(outer housing bearing) |
usually ships 3-26 days |
10 |
N/A
|
Not available |
1 |
(retainer) |
usually ships 3-26 days |
11 |
999-1268
|
Screw M6-1 x 12mm socket head stainless steel |
2 |
|
usually ships 11-14 days |
12 |
375-0287
|
O-ring |
1 |
|
usually ships 16-21 days |
13 |
375-0288
|
Screw M6-1 x 35mm flat socket |
6 |
|
usually ships 16-21 days |
