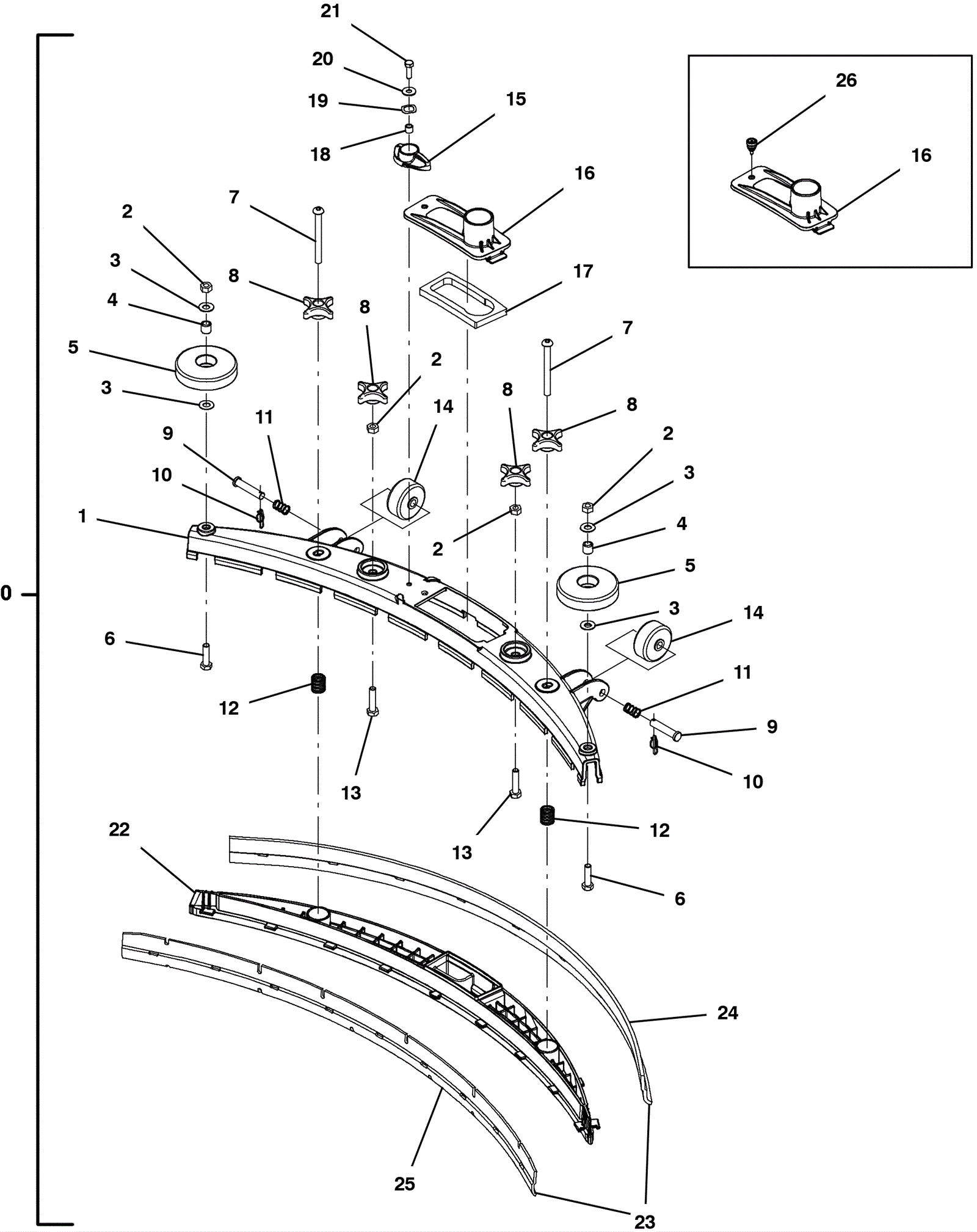

T300E Squeegee Assembly

#PartDescription ReqNotesAvailability
0 375-0196 20 inch (500mm) squeegee assembly 1 (includes 1-23a, 24a, 25a) usually ships 16-21 days
1 375-0197 20 inch squeegee weldment 1 usually ships 16-21 days
2 999-1424 Nut M8-1.25 hex stainless steel 2 usually ships 11-14 days
3 999-0024 Washer 5/16 flat stainless steel 4 usually ships 11-14 days
4 175-2249 Sleeve 2 usually ships 16-21 days
5 175-7919 Guide wheel 2 usually ships 16-21 days
6 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 2 usually ships 11-14 days
7 375-0262 Screw M8-1.25 x 80mm button socket stainless steel 2 usually ships 16-21 days
8 375-0261 Star knob M8-1.25 4 usually ships 16-21 days
9 175-2592 Clevis Pin 0.37 D X 1.75 L 2 usually ships 16-21 days
10 375-0071 Cotter hair pin 2 usually ships 16-21 days
11 175-7931 Compression spring 2 usually ships 16-21 days
12 275-0143 Compression spring 2 usually ships 16-21 days
13 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2 usually ships 11-14 days
14 991-2013 Wheel 2 usually ships 14-22 days
15 375-3281 Squeegee knob 1 usually ships 16-21 days
16 375-0263 Squeegee water trap cover 1 usually ships 16-21 days
17 375-0265 Squeegee water trap gasket 1 usually ships 16-21 days
18 175-0152 Spacer 1 usually ships 16-21 days
19 175-3058 Washer 3/4 wave 1 usually ships 16-21 days
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1 usually ships 11-14 days
21 999-1312 Screw M6-1 x 20mm hex head stainless steel 1 usually ships 11-14 days
22 375-0198 20 inch (500mm) squeegee retainer 1 usually ships 16-21 days
23a 375-3274 Squeegee blade kit 20 inch (500mm) linatex 1 (includes 24a, 25a) usually ships 16-21 days
23b 375-1342 Squeegee blade 20 inch (500mm) urethane front 1 (includes 24b, 25b) usually ships 16-21 days
23c 375-1343 Squeegee blade 20 inch (500mm) gum rubber front 1 (includes 24c, 25c) usually ships 16-21 days
24a 375-0260 Squeegee blade 20 inch (500mm) linatex rear 1 usually ships 16-21 days
24b 375-1344 Squeegee blade 20 inch (500mm) urethane rear 1 usually ships 16-21 days
24c 375-1212 Squeegee blade 20 inch (500mm) gum rubber rear 1 usually ships 16-21 days
24d 991-9224 BLADE,SQGE,REAR RED(500MM) 1 (NON-OEM_ usually ships 13-17 days
25a 375-0199 Squeegee blade 20 inch (500mm) linatex front 1 usually ships 16-21 days
25b 375-1342 Squeegee blade 20 inch (500mm) urethane front 1 usually ships 16-21 days
25c 375-1343 Squeegee blade 20 inch (500mm) gum rubber front 1 usually ships 16-21 days
N/S 375-0264 Screw M5 captive 1 (20 inch model) usually ships 16-21 days
