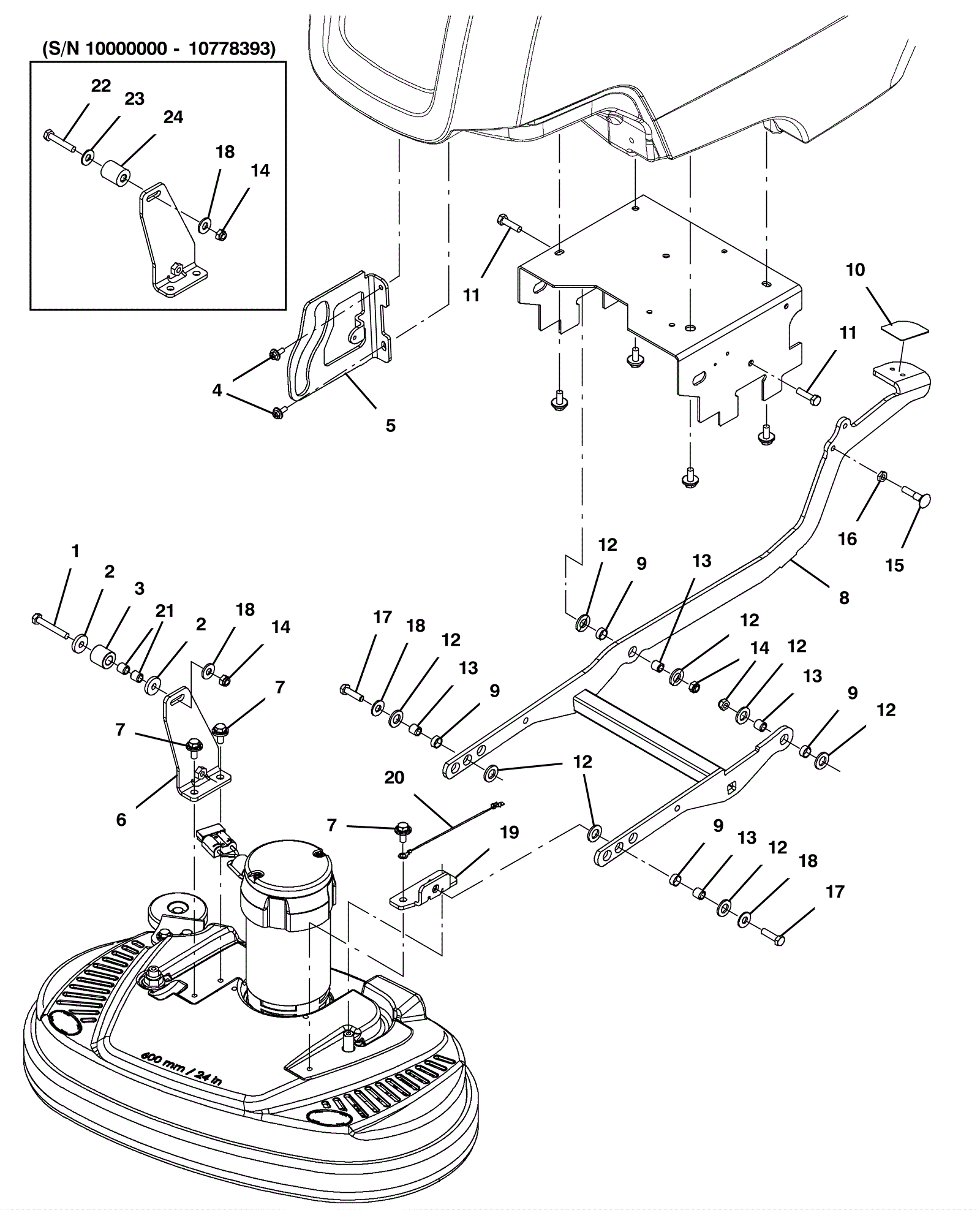

T300E Scrub Head Lift Assembly - Dual Disk

#PartDescription ReqNotesAvailability
1 999-0788 Screw M8-1.25 x 55mm hex head stainless steel 1 (after SN 10778393) usually ships 11-14 days
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2 (after SN 10778393) usually ships 11-14 days
3 175-7911 Roller 1 (after SN 10778393) usually ships 16-21 days
4 999-1383 Screw M6-1 x 16mm hex head stainless steel 2 usually ships 8-9 days
5 375-0252 Guide bracket 1 usually ships 16-21 days
6 375-0187 Bracket weldment (tall) 1 usually ships 16-21 days
7 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 3 usually ships 16-21 days
8 275-6649 Scrub head lift kit 1 (includes 9) usually ships 16-21 days
9 175-4720 Bearing 8 usually ships 16-21 days
10 375-1347 Pedal pad 1 usually ships 16-21 days
11 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2 usually ships 11-14 days
12 999-9214 Washer M8 flat nylon 8 usually ships 11-14 days
13 175-2249 Sleeve 4 usually ships 16-21 days
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel 3 usually ships 11-14 days
15 275-6648 Bolt 1 usually ships 16-21 days
16 175-4006 Nut M8 x 1.25 hex jam 1 usually ships 16-21 days
17 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 2 usually ships 11-14 days
18 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 3 usually ships 11-14 days
19 375-0188 Bracket weldment (short) 1 usually ships 1-5 days
20 375-0108 Electrical harness 4 usually ships 16-21 days
21 175-2249 Sleeve 2 (after SN 10778393) usually ships 16-21 days
22 999-1297 Screw M8 x 50mm hex head stainless steel 1 (before SN 10778394) usually ships 11-14 days
23 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1 (before SN 10778394) usually ships 11-14 days
24 375-0251 Roller 1 (before SN 10778394) usually ships 16-21 days
