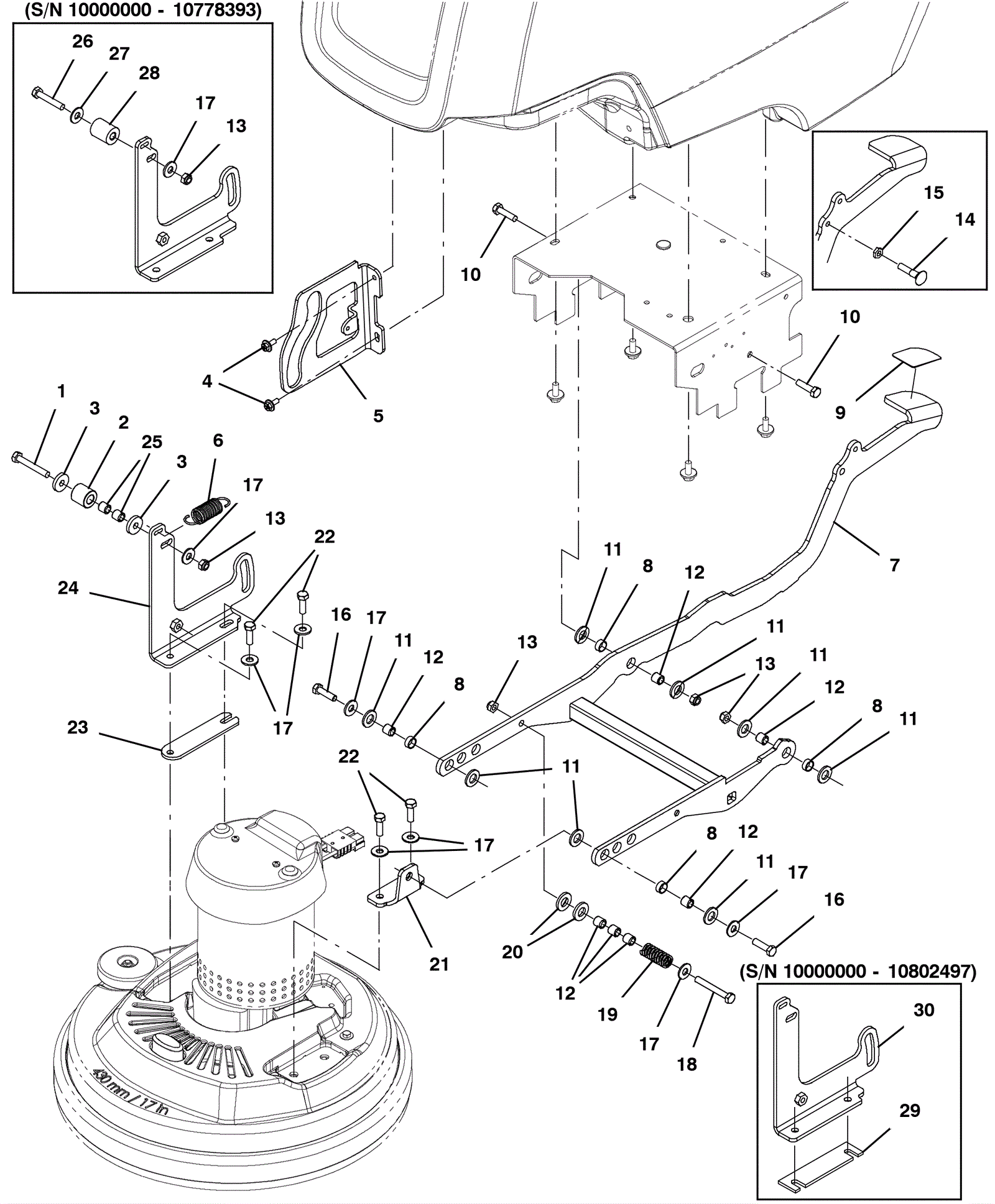

T300E Scrub Head Lift Assembly - Disk

#PartDescription ReqNotesAvailability
1 999-0788 Screw M8-1.25 x 55mm hex head stainless steel 1 (after SN 10778393) usually ships 11-14 days
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2 (after SN 10778393) usually ships 11-14 days
3 175-7911 Roller 1 (after SN 10778393) usually ships 16-21 days
4 999-1383 Screw M6-1 x 16mm hex head stainless steel 2 usually ships 8-9 days
5 375-0252 Guide bracket 1 usually ships 16-21 days
6 275-5918 Extension spring 1 usually ships 16-21 days
7 275-6649 Scrub head lift kit 1 (includes 8) usually ships 16-21 days
8 175-4720 Bearing 8 usually ships 16-21 days
9 375-1347 Pedal pad 1 usually ships 16-21 days
10 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2 usually ships 11-14 days
11 999-9214 Washer M8 flat nylon 8 usually ships 11-14 days
12 175-2249 Sleeve 7 usually ships 16-21 days
13 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4 usually ships 11-14 days
14 275-6648 Bolt 1 usually ships 16-21 days
15 175-4006 Nut M8 x 1.25 hex jam 1 usually ships 16-21 days
16 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 2 usually ships 11-14 days
17 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 8 usually ships 11-14 days
18 999-1155 Screw M8-1.25 x 60mm hex head 1 usually ships 11-14 days
19 175-0944 Spring 1 usually ships 16-21 days
20 175-0939 Thrust washer 2 usually ships 16-21 days
21 375-0255 Mounting bracket 1 usually ships 1-5 days
22 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 4 usually ships 11-14 days
23 375-3187 Spacer head 1 (after SN 10802497) (push model) usually ships 16-21 days
24 375-3188 Bracket weldment 1 (after SN 10802497) usually ships 16-21 days
25 175-2249 Sleeve 2 (after SN 10778393) usually ships 16-21 days
26 999-1297 Screw M8 x 50mm hex head stainless steel 1 (before SN 10778394) usually ships 11-14 days
27 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1 (before SN 10778394) usually ships 11-14 days
28 375-0251 Roller 1 (before SN 10778394) usually ships 16-21 days
29 275-5917 Spacer plate 1 (before SN 10802498) usually ships 16-21 days
30 375-3188 Bracket weldment 1 usually ships 16-21 days
