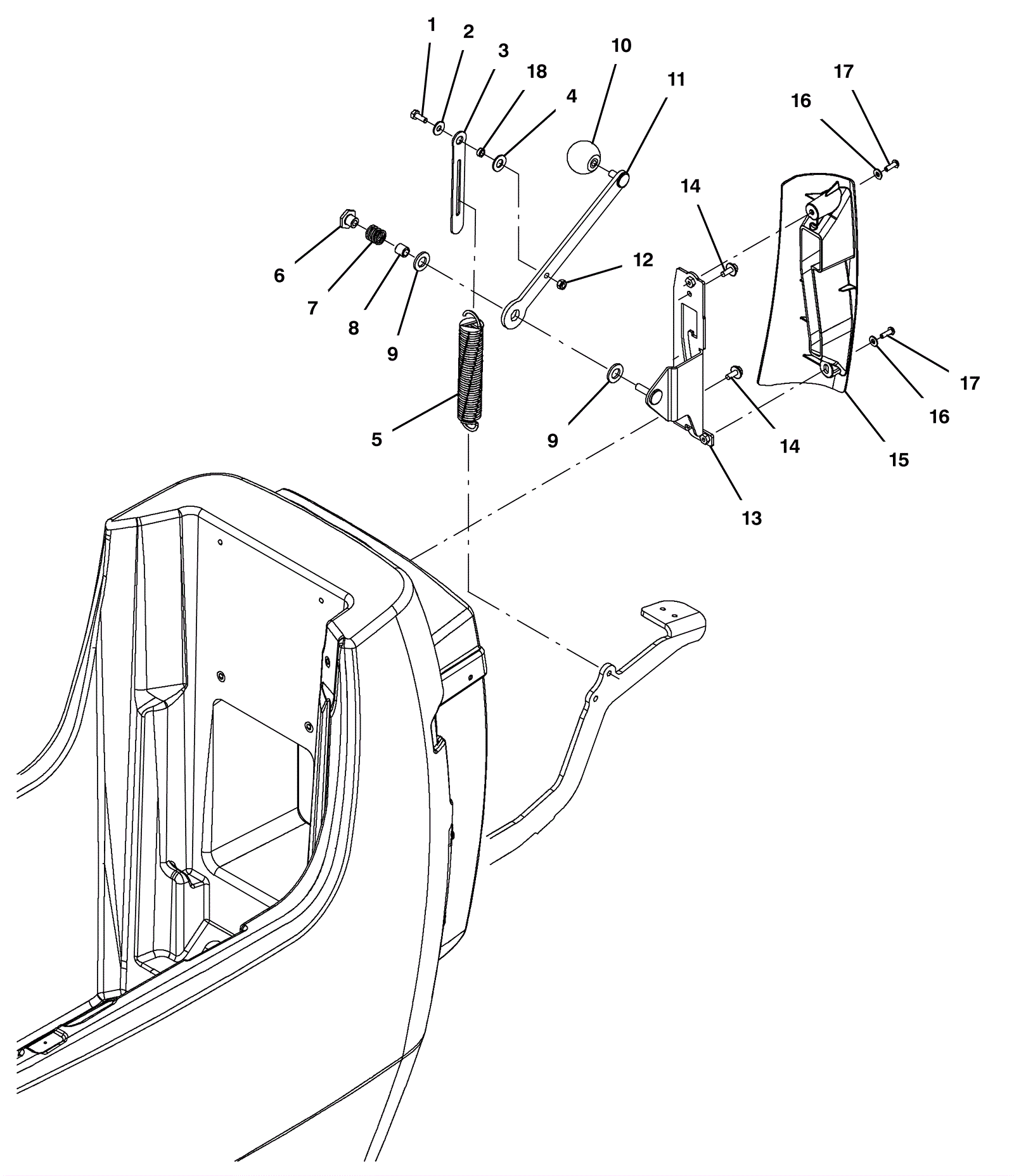

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
(manual down pressure) |
usually ships 11-14 days |
2 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
usually ships 11-14 days |
3 |
375-1358
|
Plate link |
1 |
(manual down pressure) |
usually ships 16-21 days |
4 |
375-1359
|
Washer flat nylon (Tennant Industrial) |
1 |
(manual down pressure) |
usually ships 16-21 days |
5a |
375-0126
|
Extension spring |
1 |
(manual down pressure) (disk and orbital models) |
usually ships 16-21 days |
5b |
375-0127
|
Extension spring |
1 |
(manual down pressure) (cylindrical model) |
usually ships 16-21 days |
6 |
175-7816
|
Nut M8 x 1.25mm |
1 |
(manual down pressure) |
usually ships 16-21 days |
7 |
175-7815
|
Compression spring |
1 |
(manual down pressure) |
usually ships 16-21 days |
8 |
175-2249
|
Sleeve |
1 |
(manual down pressure) |
usually ships 16-21 days |
9 |
999-9214
|
Washer M8 flat nylon |
2 |
(manual down pressure) |
usually ships 11-14 days |
10 |
175-7813
|
Knob |
1 |
(manual down pressure) |
usually ships 16-21 days |
11 |
375-1360
|
Down pressure weldment lever |
1 |
(manual down pressure) |
usually ships 16-21 days |
12 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
(manual down pressure) |
usually ships 11-14 days |
13a |
375-1361
|
Down pressure weldment bracket |
1 |
(manual down pressure) |
usually ships 16-21 days |
13b |
375-1363
|
Weldment bracket |
1 |
(single down pressure) |
usually ships 1-5 days |
14 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
usually ships 8-9 days |
15a |
375-1362
|
Down pressure lever cover |
1 |
(manual down pressure) |
usually ships 16-21 days |
15b |
375-0125
|
Down press pulley assembly cover |
1 |
(single down pressure) |
usually ships 1-5 days |
16 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
usually ships 11-14 days |
17 |
999-1403
|
Screw M8 x 16mm torx head |
2 |
|
usually ships 11-14 days |
18 |
175-0777
|
P/M sleeve |
1 |
(manual down pressure) |
usually ships 16-21 days |
N/S |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
(single down pressure) |
usually ships 11-14 days |
N/S |
375-3178
|
Down press pulley assembly cover |
1 |
(single down pressure) |
usually ships 16-21 days |
N/S |
375-3179
|
Washer |
2 |
(single down pressure) |
usually ships 16-21 days |
