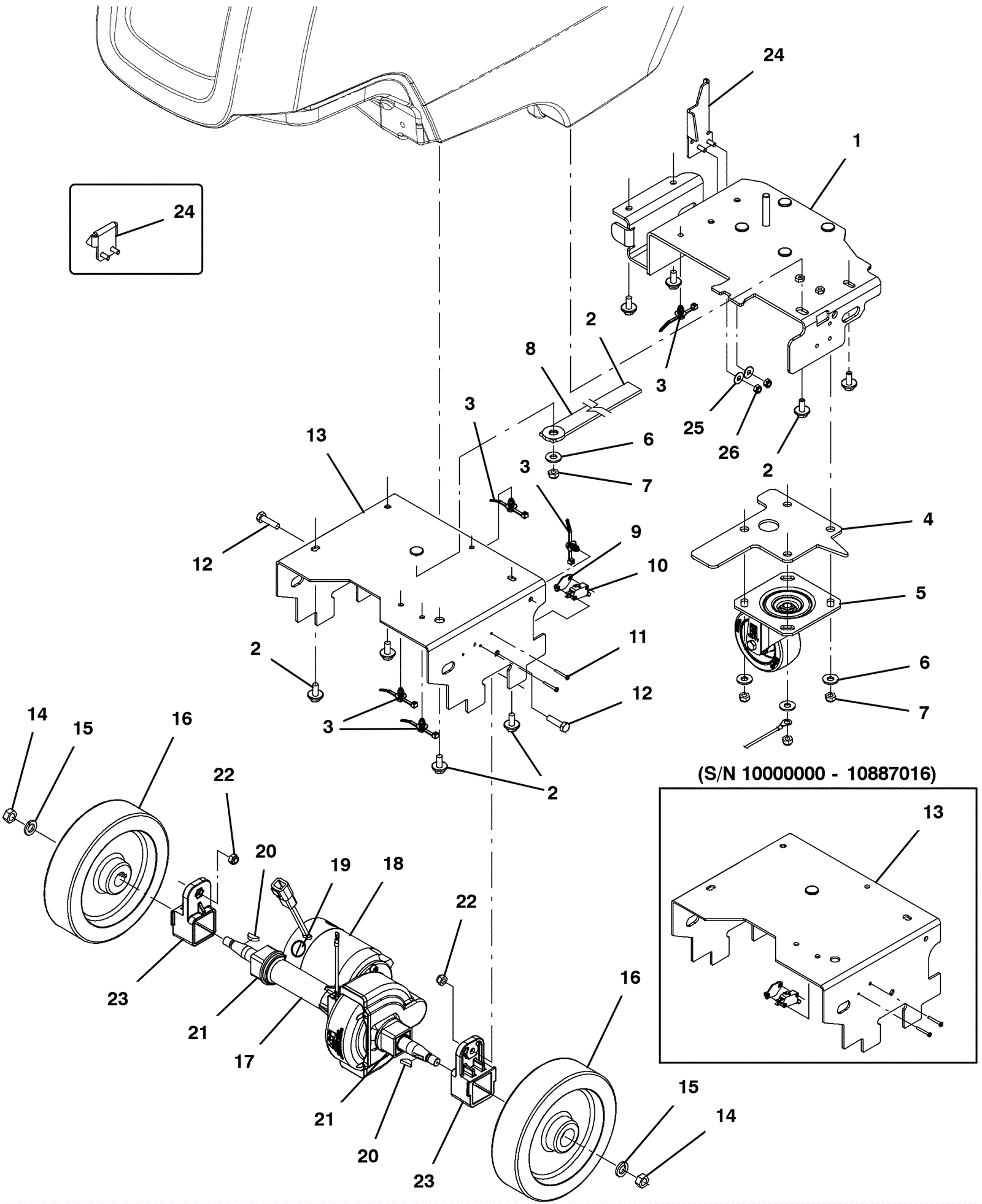

T300E Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-0221 Rear frame weldment $211.75 1 usually ships 5-16 days
2 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 8 ships same day
3 275-5197 Fir tree clip $2.11 5 usually ships 5-16 days
5 375-0225 Swivel caster wheel $76.12 1 ships same day
6 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 5 ships same day
7 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 5 ships same day
8 275-9261 Static strip with grommet $26.29 1 usually ships 5-16 days
9 175-7839 Switch plate $33.66 1 usually ships 5-16 days
10 375-0226 Mircroswitch $10.34 1 ships same day
11 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 ships same day
12 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
13a 275-9879 Front frame weldment $72.27 1 (after SN 10887016) usually ships 5-16 days
13b 375-0227 Front frame weldment $96.80 1 (before SN 10887017) usually ships 5-16 days
14 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 2 (propel model) ships same day
15 175-1825 Washer $4.75 2 (propel model) ships same day
16a 375-3173 Wheel with taper $152.68 2 (propel model) ships same day
16b 375-3176 Wheel with bearing $160.82 2 (push model) ships same day
17a 375-0229 Transaxle assembly $1,715.67 1 (includes 17b-21) (propel model) usually ships 1-5 days
17b 175-7899 Transaxle coupling kit $34.87 1 (propel model) ships same day
18 375-0230 Transaxle motor $664.73 1 (includes 19) (propel model) ships same day
19 175-4019 Carbon brush kit (pkg of 4) $128.15 1 (propel model) usually ships 5-16 days
20 275-1448 Square keyway $4.09 2 (propel model) ships same day
21 175-3660 Transaxle sleeve $10.34 2 (propel model) usually ships 5-16 days
22 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
23 275-5900 Axle mount $15.29 2 usually ships 5-16 days
24a 375-3174 Bracket latch $76.12 1 (after 12/2019) usually ships 5-16 days
24b 475-2171 LATCH KIT, PEDAL, RLR, CI [T300/E/SS] $201.63 1 (before SN 10778394) usually ships 5-16 days
25 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
26 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
N/S 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 2 (push model) ships same day
N/S 275-7133 Washer .34B x 1.25D x .11 flat stainless steel $5.50 2 (push model) ships same day
N/S 275-5901 Grommet $8.25 2 (push model) usually ships 5-16 days
N/S 375-7838 Wheel axle $43.56 1 (push model) usually ships 5-16 days
N/S 275-1406 Retaining ring $19.58 2 (push model) usually ships 5-16 days
