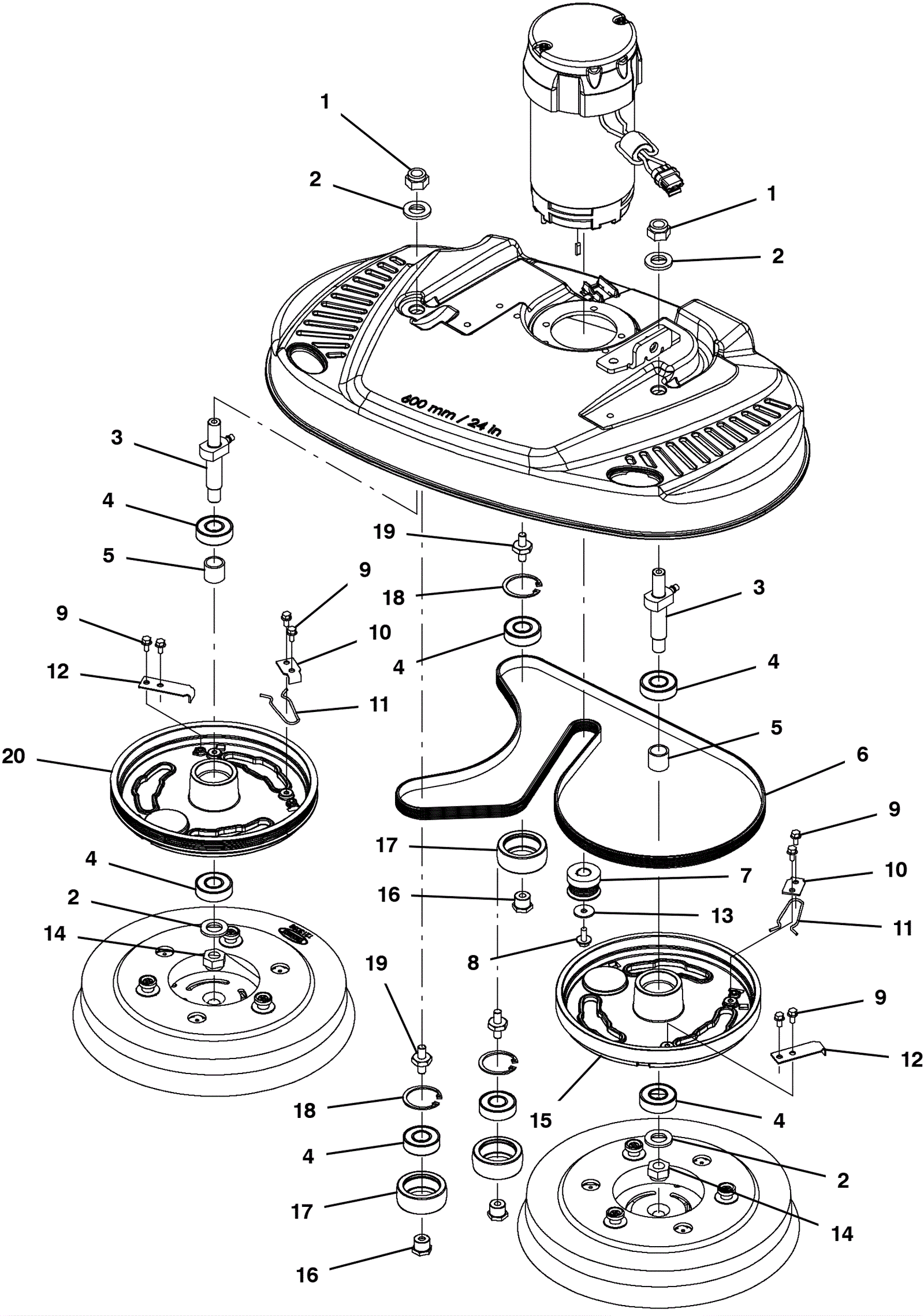

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0063
|
Nut M14 x 2mm hex lock (Tennant Industrial) |
2 |
|
usually ships 16-21 days |
2 |
275-1469
|
Shaft spacer |
4 |
|
usually ships 16-21 days |
3 |
375-0064
|
Pulley shaft weldment |
2 |
|
usually ships 16-21 days |
4 |
375-0036
|
Ball bearing |
7 |
|
usually ships 16-21 days |
5 |
275-9918
|
Tube |
2 |
|
usually ships 16-21 days |
6 |
275-9917
|
Drive belt |
1 |
|
usually ships 16-21 days |
7 |
375-0065
|
Sheave |
1 |
|
usually ships 16-21 days |
8 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
1 |
|
usually ships 8-9 days |
9 |
999-1228
|
Screw M5-.8 x 10mm hex head stainless steel |
8 |
|
usually ships 11-14 days |
10 |
175-7921
|
Brush plate clamp |
2 |
|
usually ships 16-21 days |
11 |
175-7924
|
Spring clip |
2 |
|
usually ships 16-21 days |
12 |
275-9920
|
Release stop |
2 |
|
usually ships 16-21 days |
13 |
175-1424
|
Washer flat |
1 |
|
usually ships 16-21 days |
14 |
375-0063
|
Nut M14 x 2mm hex lock (Tennant Industrial) |
2 |
|
usually ships 16-21 days |
15a |
275-9919
|
Drive hub |
1 |
(3 lug hub) |
usually ships 16-21 days |
15b |
375-0066
|
Magnetic drive hub |
1 |
(magnetic hub) |
usually ships 16-21 days |
16 |
275-9916
|
Spacer |
3 |
|
usually ships 16-21 days |
17 |
275-9915
|
Idler pulley |
3 |
|
usually ships 16-21 days |
18 |
275-9914
|
Retaining ring |
3 |
|
usually ships 16-21 days |
19 |
375-0067
|
Stud |
3 |
|
usually ships 16-21 days |
20a |
275-9921
|
Drive hub |
1 |
(3 lug hub) |
usually ships 16-21 days |
20b |
375-0069
|
Grooved magnetic drive hub |
1 |
(magnetic hub) |
usually ships 16-21 days |
N/S |
375-0068
|
Magnetic hub ring |
2 |
(magnetic hub) |
usually ships 16-21 days |
N/S |
175-4251
|
Screw M4 x 8mm flat head phillips |
6 |
(magnetic hub) |
usually ships 16-21 days |
