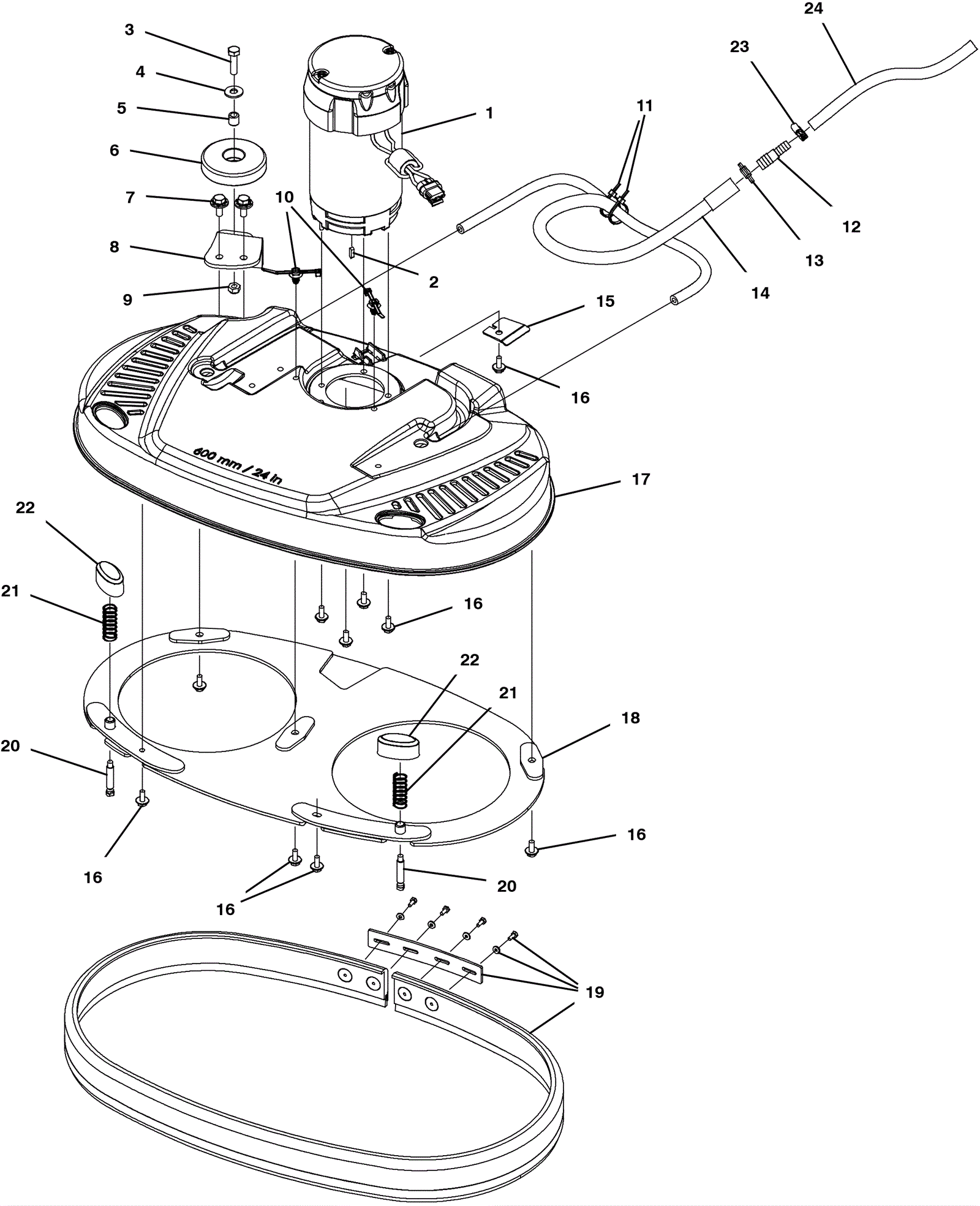

T300E 24 Inch Scrub Head Assembly - Dual Disk - Upper

#PartDescriptionPriceReqNotesAvailability
1a 375-3157 24V brush motor $1,007.05 1 (after SN 10835153) (includes 1b, 2) usually ships 5-16 days
1b 275-9904 Carbon brush (pkg of 4) $87.34 1 usually ships 5-16 days
1c 375-0051 24V brush motor $1,281.39 1 (before SN 10835154) (includes 1b, 2) usually ships 5-16 days
2 375-0052 Square keyway $4.49 1 ships same day
3 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
4 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
5 175-2249 Sleeve $3.83 1 ships same day
6 175-7919 Guide wheel $5.50 1 ships same day
7 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 2 ships same day
8 375-0053 Bracket $30.36 1 usually ships 1-5 days
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
10 275-5197 Fir tree clip $2.11 2 usually ships 5-16 days
11 175-7795 Cable tie $4.75 2 ships same day
12 175-6956 Plastic strainer fitting $4.88 1 usually ships 5-16 days
13 375-0291 Hose clamp $4.88 1 ships same day
14 375-0056 Water distribution manifold $126.61 1 usually ships 5-16 days
15 375-0057 Belt guide bracket $14.63 1 usually ships 1-5 days
16 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 10 ships same day
17 375-0058 24 inch scrub head housing $597.96 1 usually ships 5-16 days
18 375-0059 Splash guard bracket weldment $227.15 1 usually ships 5-16 days
19 275-1466 24 inch (600mm) bumper skirt assembly $285.56 1 ships same day
20 375-0060 Short stop pin $22.00 2 (magnetic hub) usually ships 5-16 days
21 375-0061 Spring $11.44 2 (magnetic hub) ships same day
22 375-0062 Plunger pad button $11.22 2 (magnetic hub) ships same day
23 175-3594 Hose clamp $4.88 1 ships same day
24 175-2222 PVC hose $21.34 1 ships same day
N/S 375-3156 Hole plug $59.84 2 (3 lug hub) ships same day
