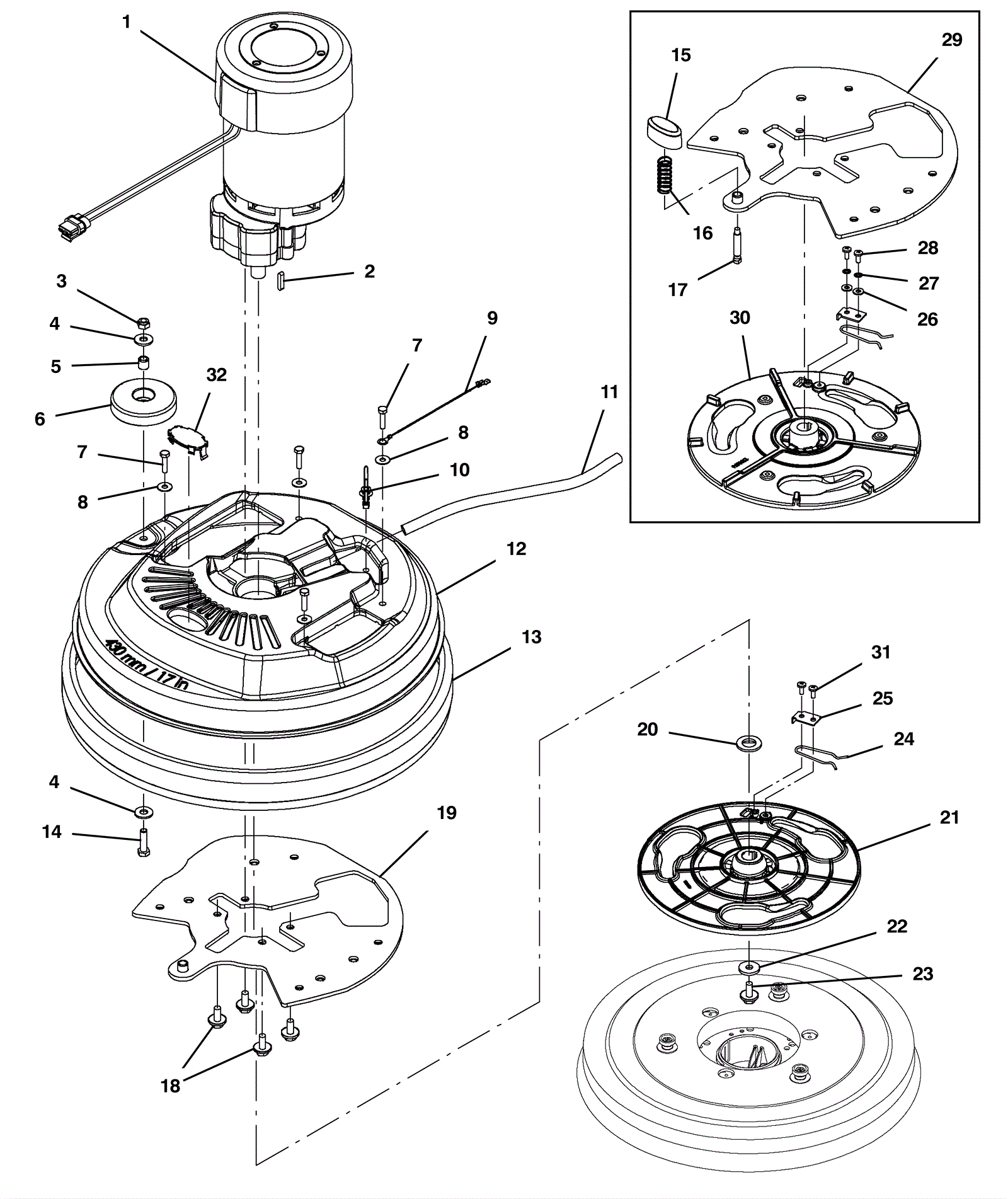

T300E Scrub Head Assembly - Single Disk

#PartDescriptionPriceReqNotesAvailability
1a 475-2816 MOTOR, ELE, 24VDC 150RPM 0.68HP, 17MM $1,379.51 1 (includes 2a-2b) (after SN 10978978) usually ships 5-16 days
1b 375-3152 24V electric motor $1,157.75 1 (includes 2a-2b) (between SN 10834387-10978978) usually ships 5-16 days
1c 375-0203 24V 1 HP brush motor $1,612.71 1 (includes 2c-2e) (before SN 10834387) ships same day
2a 375-3153 Carbon brush kit (pkg of 4) $40.04 1 (after SN 10834386) usually ships 5-16 days
2b 275-1468 Square keyway $4.88 1 ships same day
2c 175-5352 Carbon brush (pkg of 4) $188.32 1 (before SN 10834387) ships same day
2d 275-5907 Carbon brush replacement kit (pkg of 4) $12.10 1 (before SN 10834387) usually ships 5-16 days
2e 275-1468 Square keyway $4.88 1 ships same day
3 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
4 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
5 175-2249 Sleeve $3.83 1 ships same day
6 175-7919 Guide wheel $5.50 1 ships same day
7 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 4 ships same day
8 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
9 375-0108 Electrical harness $6.49 1 usually ships 5-16 days
10 275-5197 Fir tree clip $2.11 1 usually ships 5-16 days
11 175-2222 PVC hose $21.34 1 ships same day
12a 375-0209 20 inch (500mm) brush housing $132.55 1 ships same day
12b 375-0205 17 inch (430mm) brush housing $125.84 1 usually ships 5-16 days
13a 175-7916 20 inch (500mm) bumper with bristle skirt $144.76 1 ships same day
13b 175-7923 17 inch (430mm) bumper with bristle skirt $93.96 1 usually ships 5-16 days
14 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 1 ships same day
15 375-0062 Plunger pad button $11.22 1 ships same day
16 375-0061 Spring $11.44 1 ships same day
17a 375-0060 Short stop pin $22.00 1 usually ships 5-16 days
17b 375-0206 Stop pin $25.63 1 (magnetic hub) usually ships 5-16 days
18 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 4 ships same day
19a 375-3154 Plate weldment $94.71 1 usually ships 5-16 days
19b 475-2157 BRACKET KIT, HEAD 43D/50D, CI $200.09 1 (magnetic hub) usually ships 5-16 days
20 275-1469 Shaft spacer $8.25 1 usually ships 5-16 days
21a 675-9914 Drive hub 3 lug $127.73 1 (3 lug hub) usually ships 5-16 days
21b 375-0208 Drive hub $244.64 1 (magnetic hub) ships same day
22 175-7920 Washer M8 flat stainless steel $4.09 1 ships same day
23 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 1 ships same day
24 175-7924 Spring clip $6.82 1 (3 lug hub) ships same day
25 175-7921 Brush plate clamp $21.23 1 (3 lug hub) ships same day
26 999-0998 Washer #10 flat stainless steel $0.99 2 (3 lug hub) ships same day
27 999-1026 Washer #10 internal lock stainless steel $0.99 2 (3 lug hub) ships same day
28 999-1225 Screw M5-.8 x 12mm pan head phillips zinc $0.99 2 (3 lug hub) ships same day
29 475-2157 BRACKET KIT, HEAD 43D/50D, CI $200.09 1 (3 lug hub) usually ships 5-16 days
30 275-9256 Drive hub $242.00 1 (3 lug hub) usually ships 5-16 days
31 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 2 (3 lug hub) ships same day
32 375-3156 Hole plug $59.84 1 (3 lug hub) ships same day
N/S 375-0068 Magnetic hub ring $24.64 1 (magnetic hub) ships same day
N/S 175-4251 Screw M4 x 8mm flat head phillips $3.96 3 (magnetic hub) ships same day
N/S 375-4183 Magnetic drive hub (OBSOLETE) $159.28 1 (included in KIT1) (magnetic hub) usually ships 5-16 days
N/S 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 (included in KIT1) (magnetic hub) ships same day
N/S 375-0068 Magnetic hub ring $24.64 1 (included in KIT1) (magnetic hub) ships same day
N/S 375-4184 Screw M4-0.7 x 14mm flat head socket stainless steel $1.19 3 (included in KIT1) (magnetic hub) usually ships 5-16 days
KIT1 375-0208 Drive hub $244.64 1 (magnetic hub) ships same day
