| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

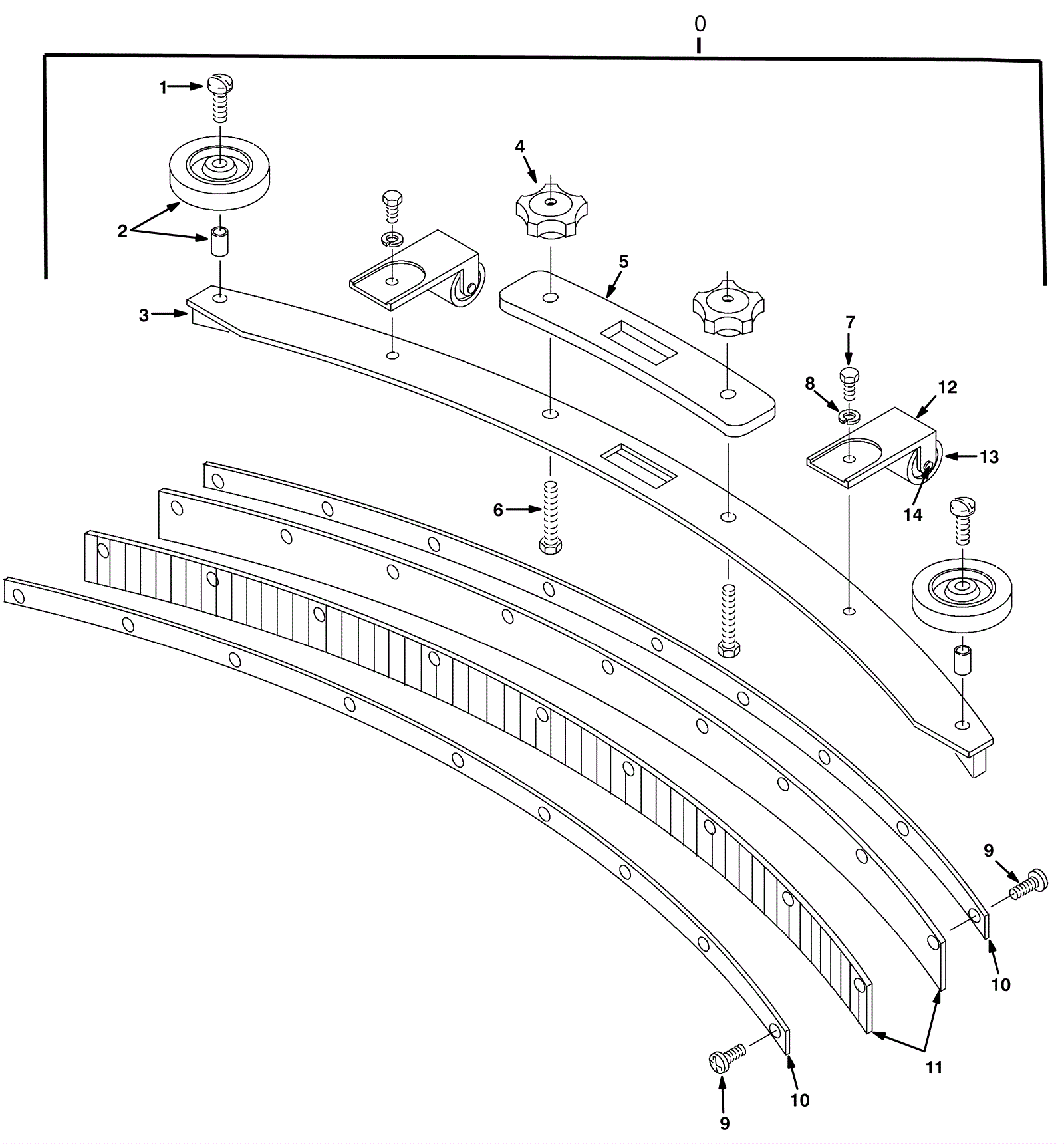

275-9090
|
32 inch (800mm) squeegee assembly |
1 |
(includes 1-14) |
|
1 |
999-1039
|
Screw 5/16-18 x 1 1/2 truss head phillips stainless steel |
2 |
|
|
2 |
175-0117
|
Guide wheel with bushing |
2 |
|
|
3 |
275-9091
|
Squeegee weldment |
1 |
|
|
4 |
175-2812
|
Knob |
2 |
|
|
5 |
175-2027
|
Curved squeegee gasket |
1 |
|
|
6 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
2 |
|
|
7 |
999-0030
|
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
8 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
10 |
275-9092
|
Squeegee retaining plate |
2 |
|
|
11a |
175-2026
|
Squeegee blade 40 inch (1010mm) urethane |
2 |
|
|
11b |
275-9089
|
Squeegee blade 32 inch gum rubber rear |
2 |
|
|
11c |
275-9095
|
Squeegee blade 32 inch linatex rear |
2 |
|
|
12 |
175-3092
|
Squeegee roller bracket |
2 |
|
|
13 |
175-0061
|
Roller wheel |
2 |
|
|
14 |
175-0062
|
Axle rivet |
2 |
|
|
KIT 2 |
175-3091
|
Squeegee roller assembly |
2 |
(includes 12-14) |
|
