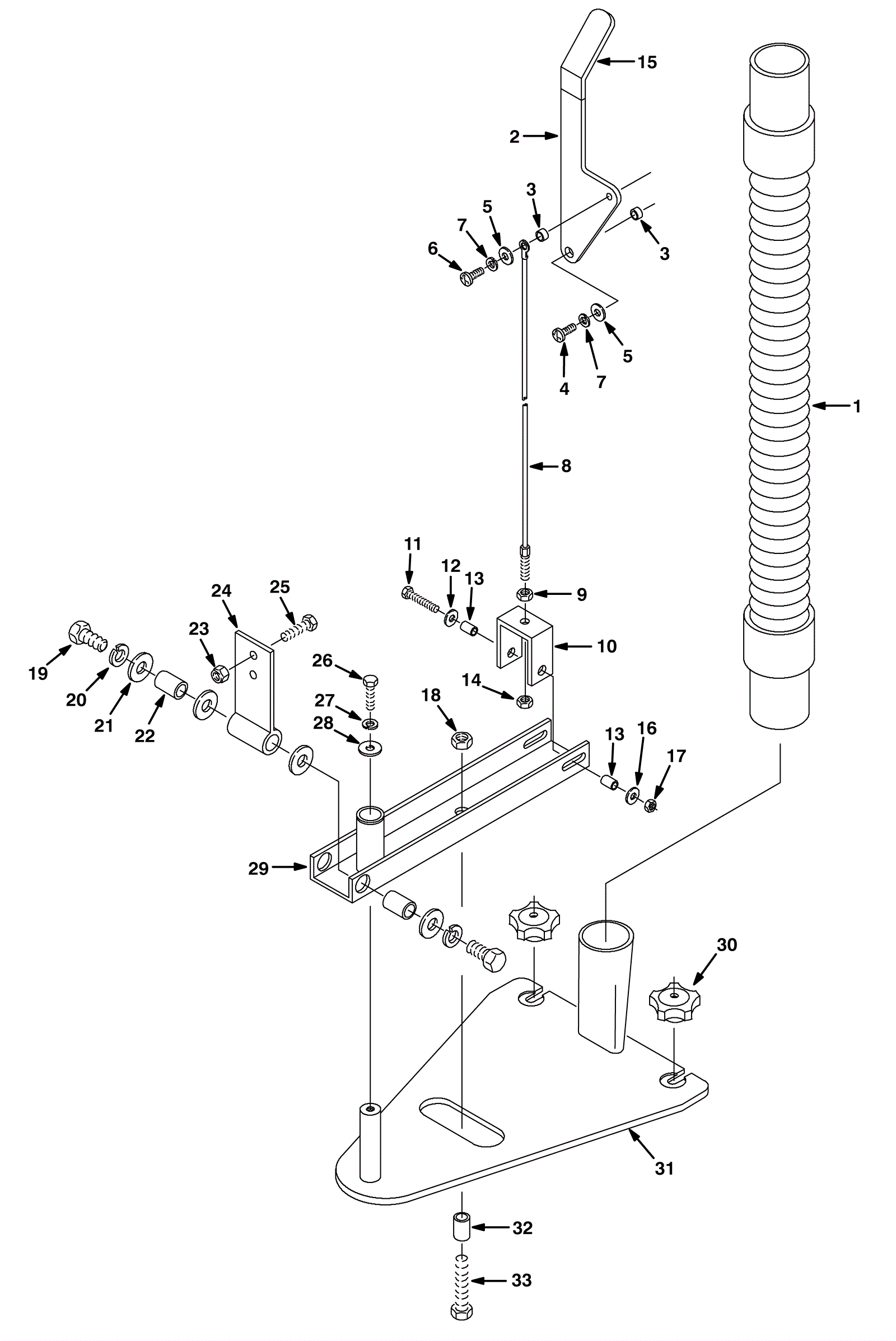

Squeegee Control Assembly

#PartDescription ReqNotesAvailability
1 175-3067 Vacuum hose 1 1/2 x 30 inch with cuffs 1
2 N/A Not available 1 (Squeegee lift handle)
3 175-2726 Sleeved bushing 2
4 999-1312 Screw M6-1 x 20mm hex head stainless steel 1
5 999-0016 Washer 1/4 flat plain finish 2
6 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 1
7 999-0632 Washer 1/4 split lock stainless steel 2
8 175-6607 Squeegee cable (OBSOLETE) 1
9 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
10 N/A Not available 1 (Squeegee lift bracket)
11 999-0244 Bolt 1/4-20 x 2 1/2 hex head grade 5 zinc plated cap 1
12 999-0016 Washer 1/4 flat plain finish 1
13 175-6427 Flange bearing (OBSOLETE) 2
14 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
15 175-2723 Handle grip (rubber) 1
16 999-0016 Washer 1/4 flat plain finish 1
17 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
18 999-0050 Nut 1/2-13 hex jam plain finish 1
19 999-0561 Bolt 1/2-13 x 1 hex head stainless steel 2
20 999-0126 Washer 1/2 split lock 2
21 999-0114 Washer 1/2 SAE flat 4
22 175-2743 Sleeved bushing 2
23 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
24 N/A Not available 1 (Squeegee mount bracket)
25 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2
26 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel 1
27 999-0632 Washer 1/4 split lock stainless steel 1
28 999-1119 Washer 1/4 x 1 fender zinc plated 1
29 175-2811 Squeegee pivot bracket 1
30 175-2812 Knob 2
31 175-8599 Squeegee weldment mount plate 1
32 175-7422 5/8 Inch sleeve bushing 1
33 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel 1
