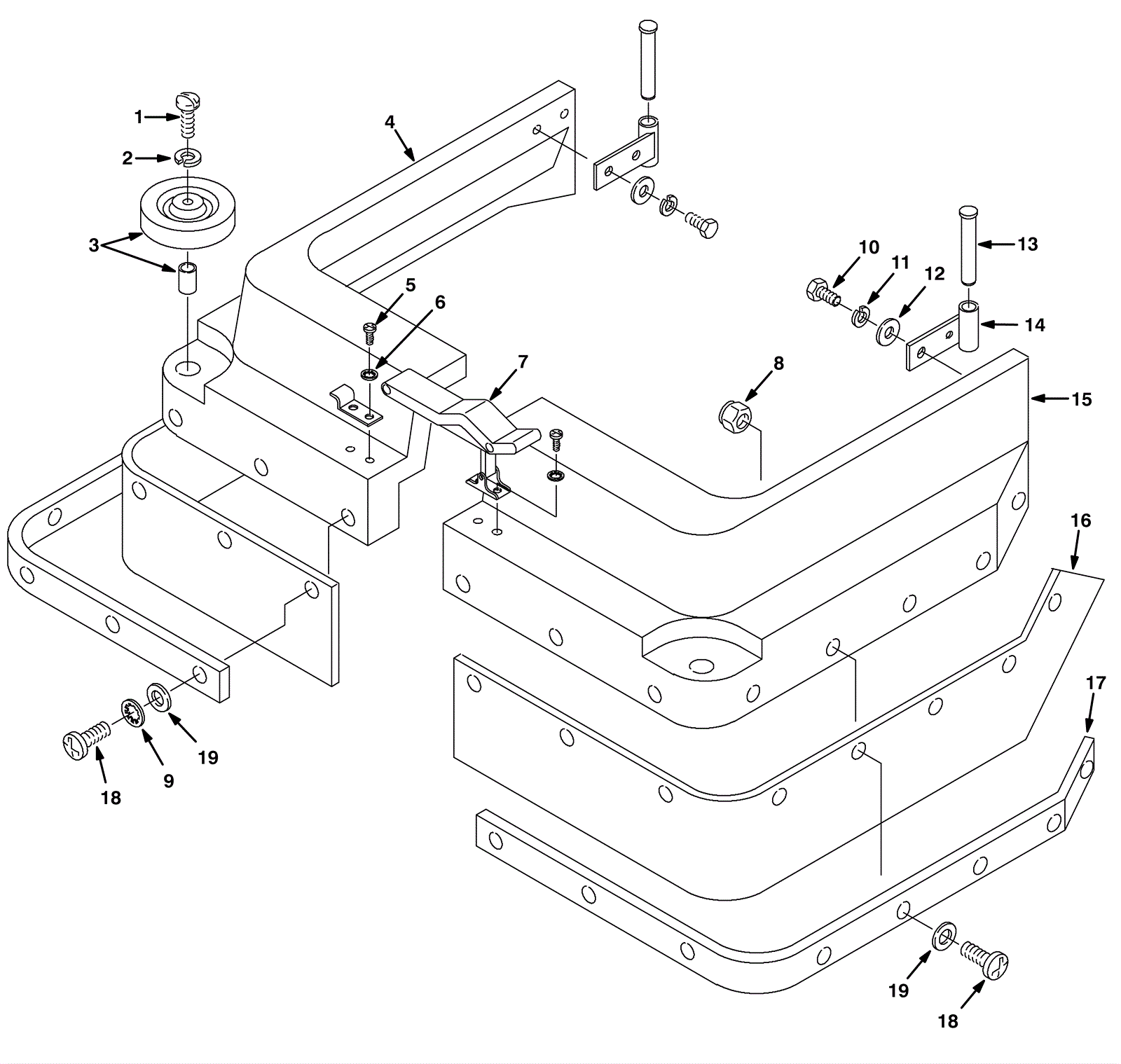

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0742
|
Screw M8-1.25 x 40mm pan head phillips zinc |
2 |
|
|
2 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
3 |
175-0117
|
Guide wheel with bushing |
2 |
|
|
4 |
375-1409
|
33 inch right hand side skirt |
1 |
|
|
5 |
999-0530
|
Screw M4-.7 x 8mm pan head slotted zinc |
4 |
|
|
6 |
999-1083
|
Washer #8 internal star lock stainless steel |
4 |
|
|
7 |
175-3369
|
Hood latch |
1 |
|
|
8 |
999-0740
|
Nut M5-.8 hex stainless steel |
12 |
|
|
9 |
999-1026
|
Washer #10 internal lock stainless steel |
16 |
|
|
10 |
999-0900
|
Screw M8-1.25 x 18mm hex head stainless steel |
4 |
|
|
11 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
4 |
|
|
12 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
13 |
175-2795
|
Skirt pin (OBSOLETE) |
2 |
|
|
14 |
175-2796
|
Skirt mounting bracket |
2 |
|
|
15 |
375-1410
|
33 inch left hand side skirt |
1 |
|
|
16 |
175-2802
|
Splash guard |
2 |
|
|
17 |
175-2804
|
Splash guard strap |
2 |
|
|
18 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
24 |
|
|
19 |
999-0393
|
Washer 3/16 flat aluminum |
24 |
|
|
