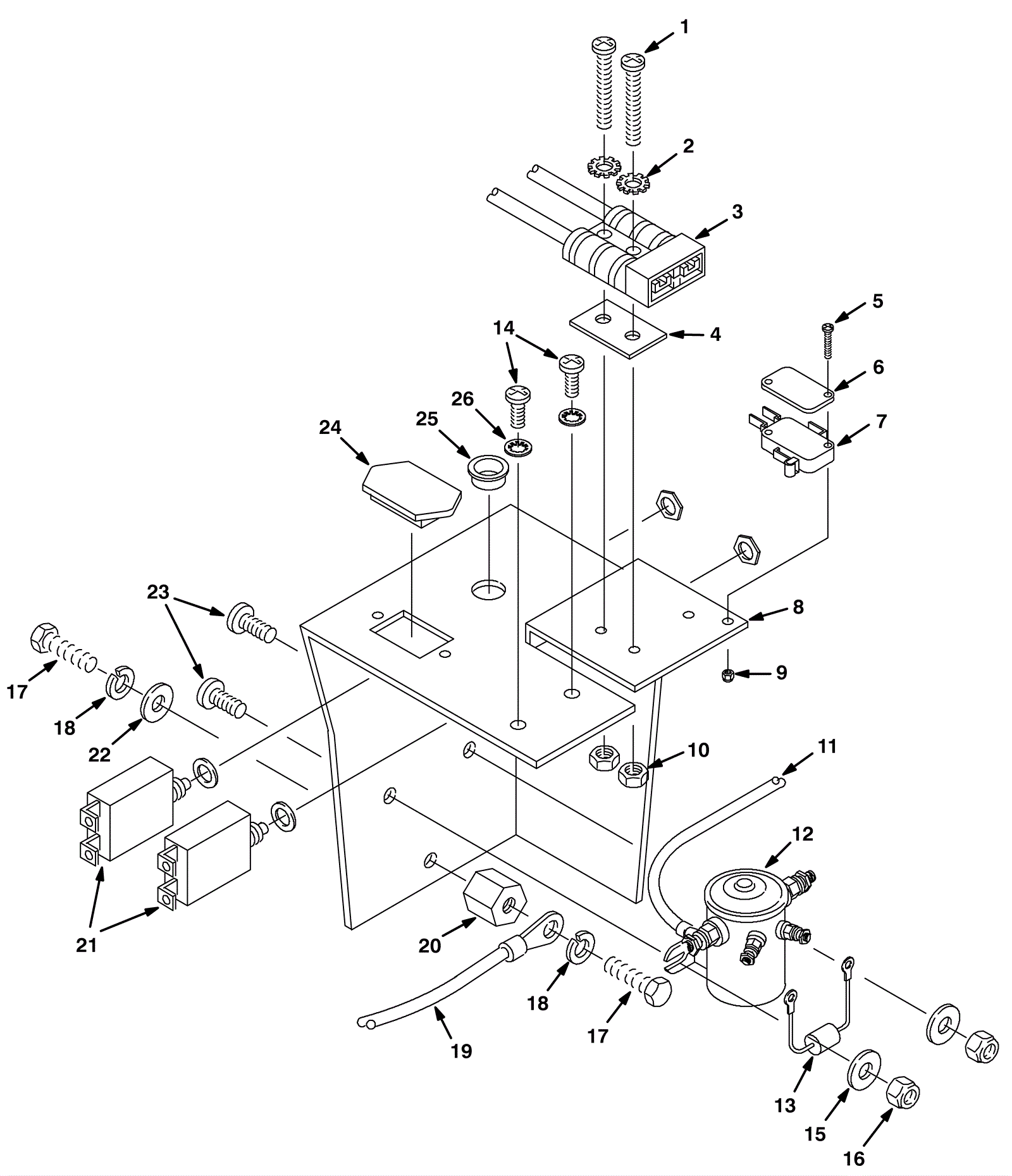

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0511
|
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
|
2 |
999-0148
|
Washer #6 external star lock zinc plated |
2 |
|
|
3 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
4 |
175-1197
|
Plate |
1 |
|
|
5 |
175-1201
|
Screw M3 x 20mm pan head phillips |
2 |
|
|
6 |
175-1200
|
Switch backing plate |
1 |
|
|
7 |
175-1199
|
Snap switch |
1 |
|
|
8 |
175-3135
|
Bracket (OBSOLETE) |
1 |
|
|
9 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
2 |
|
|
10 |
999-0144
|
Nut 6-32 k-lock zinc plated |
2 |
|
|
11 |
N/A
|
Not available |
1 |
(Wire assembly) |
|
12 |
175-2023
|
24V solenoid contactor |
1 |
|
|
13 |
175-2757
|
Diode with ring terminals (small) |
1 |
|
|
14 |
999-1090
|
Screw M5-.8 x 10mm pan head phillips zinc plated |
2 |
|
|
15 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
16 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
17 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
2 |
|
|
18 |
999-0632
|
Washer 1/4 split lock stainless steel |
2 |
|
|
19 |
175-2689
|
Wire assembly 29 inch black #6 |
1 |
|
|
20 |
175-3226
|
Insulated stand off |
1 |
|
|
21 |
375-1406
|
35amp circuit breaker (OBSOLETE) |
2 |
|
|
22 |
999-0016
|
Washer 1/4 flat plain finish |
1 |
|
|
23 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
2 |
|
|
24 |
175-3646
|
Hour meter plug |
1 |
|
|
25 |
175-3134
|
Snap bushing |
1 |
|
|
26 |
999-1026
|
Washer #10 internal lock stainless steel |
2 |
|
|
