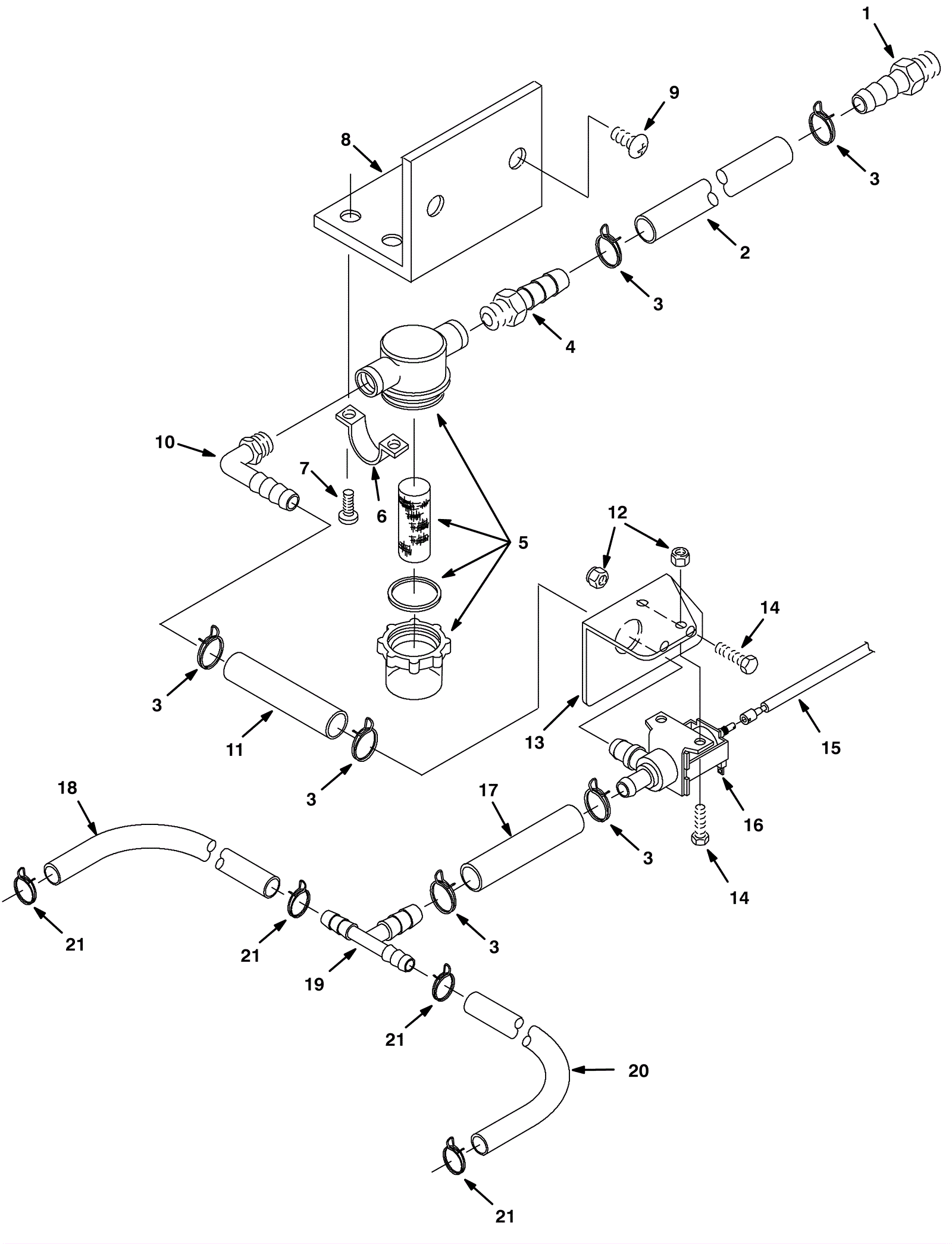

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-8668
|
Plastic fitting |
1 |
|
|
2a |
275-1454
|
12 inch vinyl hose |
1 |
(OEM) |
|
2b |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
10 in |
(NON-OEM) |
|
3 |
375-0291
|
Hose clamp |
6 |
|
|
4 |
175-1025
|
Straight brass fitting |
1 |
|
|
5 |
175-9025
|
In-line screen filter assembly |
1 |
|
|
6 |
175-3690
|
U clamp |
2 |
|
|
7 |
999-0999
|
Screw 10-24 x 3/8 truss head phillips stainless steel |
4 |
|
|
8 |
N/A
|
Not available |
1 |
(Filter bowl bracket) |
|
9 |
999-0999
|
Screw 10-24 x 3/8 truss head phillips stainless steel |
2 |
|
|
10 |
175-6016
|
Elbow |
1 |
|
|
11 |
275-7538
|
Hose 1/2 x 3/4 |
1 |
|
|
12 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
|
13 |
N/A
|
Not available |
1 |
(Solution valve bracket) |
|
14 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
15 |
375-1404
|
Solution control cable |
1 |
|
|
16a |
175-3063
|
24V solenoid valve |
1 |
|
|
16b |
175-8698
|
Solenoid valve rebuild kit (internal parts) |
1 |
|
|
17 |
275-7538
|
Hose 1/2 x 3/4 |
1 |
|
|
18 |
275-4688
|
PVC hose (sold by the foot) |
1 |
|
|
19 |
175-5591
|
Tee fitting 3/8 x 3/8 x 1/2 |
1 |
|
|
20 |
375-1408
|
Hose 3/8 x 14.5 |
1 |
|
|
21 |
175-3671
|
Hose clamp |
4 |
|
|
