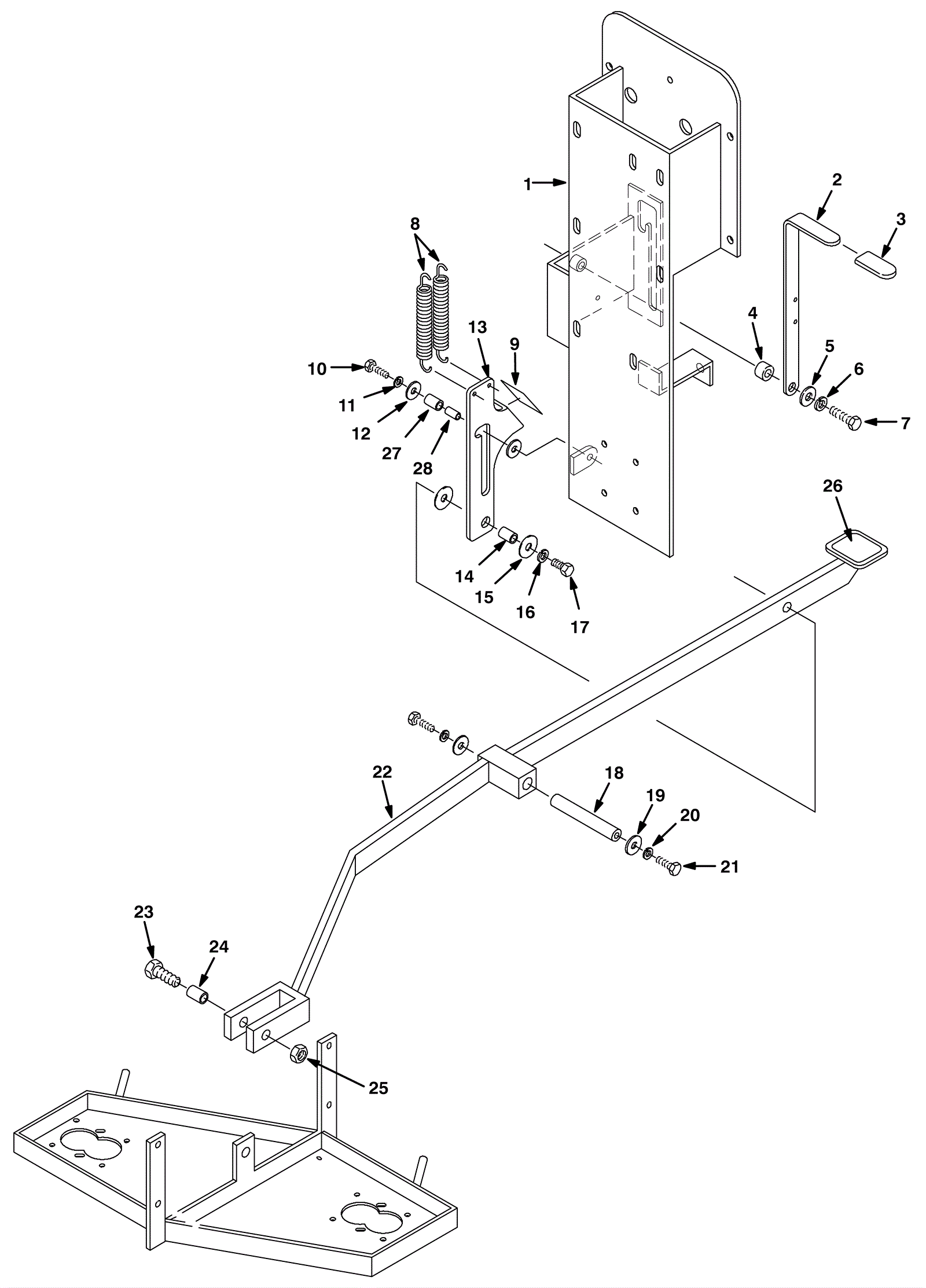

Brush Lift Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 1 (Rear weldment panel)
2 175-2730 Brush pressure handle (OBSOLETE) 1
3 175-2723 Handle grip (rubber) 1
4 175-2731 Bushing 1
5 999-0617 Washer 3/8 x 1 flat stainless steel 1
6 999-0034 Washer 3/8 split lock plain finish 1
7 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish 1
8 175-2748 Spring 2
9 175-2745 Non-slip pad 1
10 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 1
11 999-0034 Washer 3/8 split lock plain finish 1
12 999-0617 Washer 3/8 x 1 flat stainless steel 2
13 175-2744 Brush lift pedal latch 1
14 175-2743 Sleeved bushing 1
15 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
16 999-0126 Washer 1/2 split lock 1
17 999-0561 Bolt 1/2-13 x 1 hex head stainless steel 1
18 175-2788 Lift arm pivot pin 1
19 999-1119 Washer 1/4 x 1 fender zinc plated 2
20 999-0632 Washer 1/4 split lock stainless steel 2
21 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
22 N/A Not available 1 (Brush lift weldment arm)
23 999-0657 Bolt 1/2-13 x 2 18-8 hex head stainless steel 1
24 275-5752 Sleeve 1
25 999-1208 Nut 1/2-13 nylon insert lock stainless steel 1
26 175-2745 Non-slip pad 1
27 175-2747 Bushing 1
28 175-2725 Bushing 1
