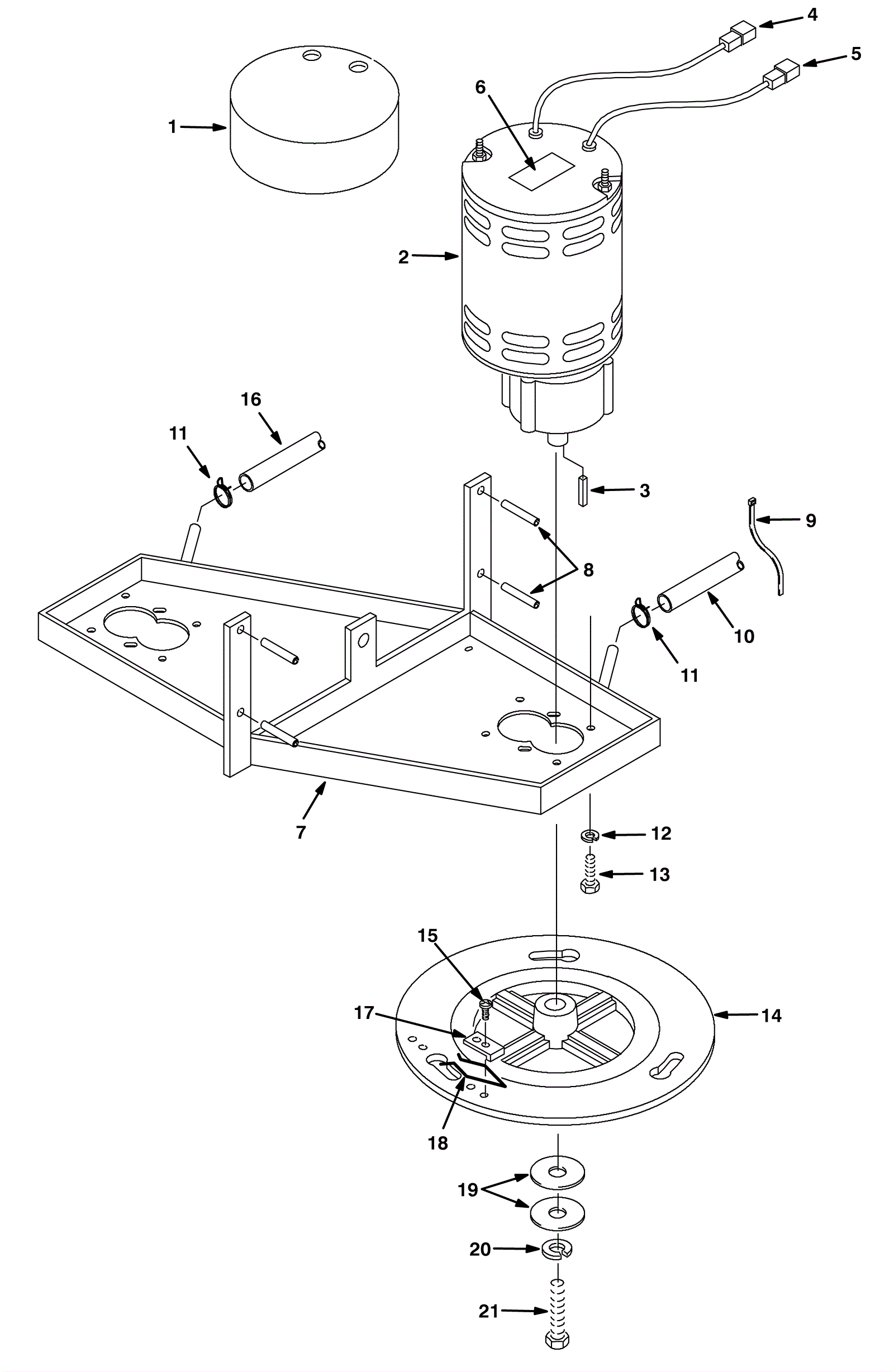

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-2598
|
Brush motor cover |
2 |
|
|
2a |
175-2599
|
24V brush motor with gearbox |
2 |
(includes 2b and 3) |
|
2b |
175-2600
|
Carbon brush |
4 |
|
|
3 |
175-2601
|
Square keyway |
1 |
|
|
4 |
175-2602
|
Female terminal |
2 |
|
|
5 |
175-3032
|
Positive terminal ring |
2 |
|
|
6 |
175-0287
|
Acrylic foam tape 1 inch x 1 foot |
1 |
|
|
7 |
175-2605
|
Motor mounting bracket |
1 |
|
|
8 |
175-2606
|
Roll pin |
4 |
|
|
9 |
175-0921
|
Wire tie |
1 |
|
|
10 |
375-1408
|
Hose 3/8 x 14.5 |
1 |
|
|
11 |
175-3671
|
Hose clamp |
2 |
|
|
12 |
999-0034
|
Washer 3/8 split lock plain finish |
8 |
|
|
13 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
8 |
|
|
14 |
175-2609
|
Drive plate |
2 |
|
|
15 |
999-1114
|
Screw 10-16 x 3/8 pan head phillips hi-lo self tapping zinc |
4 |
|
|
16 |
275-4688
|
PVC hose (sold by the foot) |
1 |
|
|
17 |
175-2611
|
Brush plate clamp |
2 |
|
|
18 |
175-2612
|
Spring clip |
2 |
|
|
19 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
4 |
|
|
20 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
21 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
