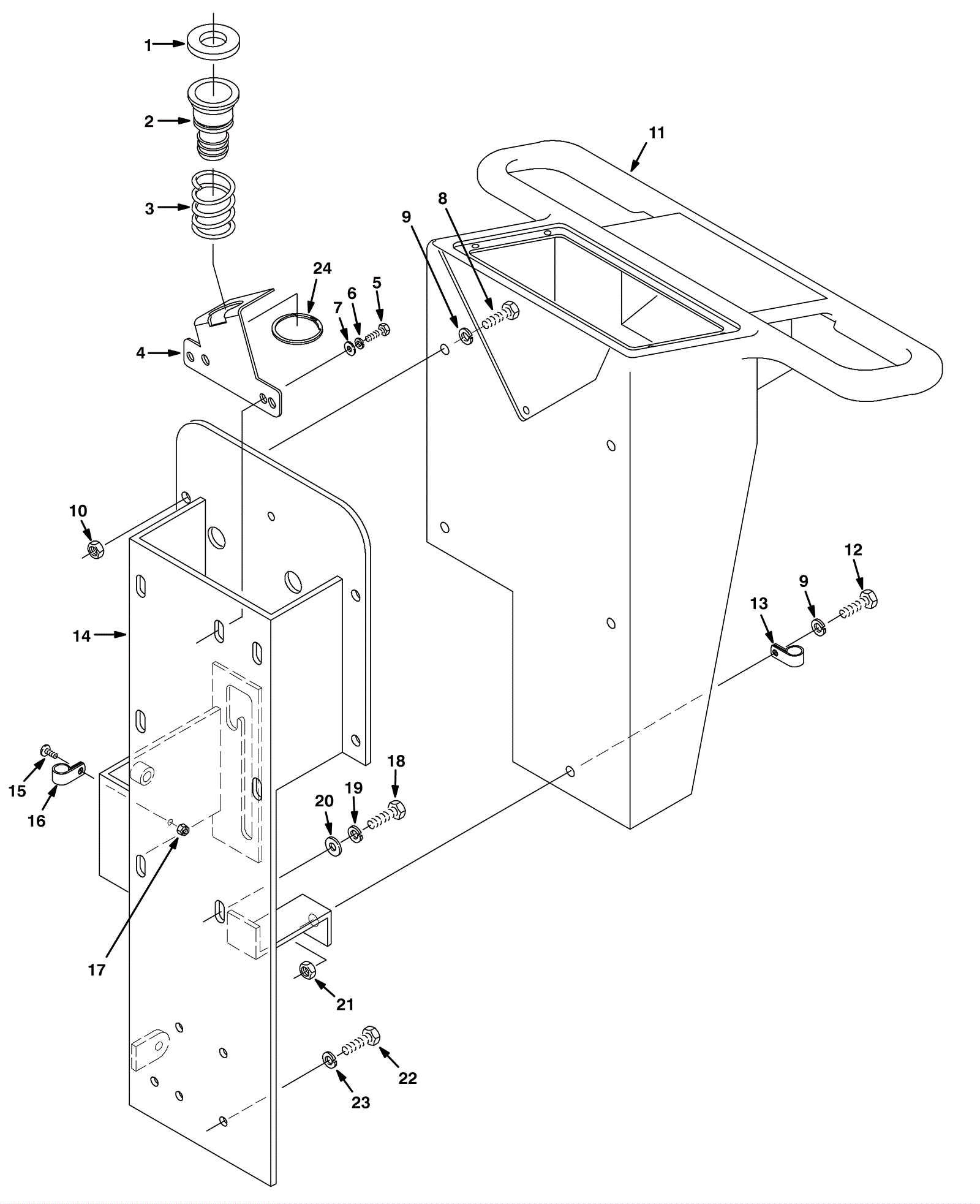

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-9895
|
Vacuum motor gasket |
1 |
|
|
2 |
175-3635
|
Transition tube |
1 |
|
|
3 |
175-4353
|
Compression spring |
1 |
|
|
4 |
175-3636
|
Vacuum tube bracket |
1 |
|
|
5 |
999-0900
|
Screw M8-1.25 x 18mm hex head stainless steel |
2 |
|
|
6 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
7 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
8 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
4 |
|
|
9 |
999-0024
|
Washer 5/16 flat stainless steel |
5 |
|
|
10 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
|
11 |
375-1407
|
Control housing (OBSOLETE) |
1 |
|
|
12 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
13 |
175-3005
|
P clamp |
1 |
|
|
14 |
N/A
|
Not available |
1 |
(Rear weldment panel) |
|
15 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
1 |
|
|
16 |
175-0339
|
P clamp |
1 |
|
|
17 |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
18 |
999-0900
|
Screw M8-1.25 x 18mm hex head stainless steel |
5 |
|
|
19 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
5 |
|
|
20 |
999-0024
|
Washer 5/16 flat stainless steel |
5 |
|
|
21 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
22 |
999-0900
|
Screw M8-1.25 x 18mm hex head stainless steel |
5 |
|
|
23 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
5 |
|
|
24 |
175-4355
|
Retaining ring |
1 |
|
|
