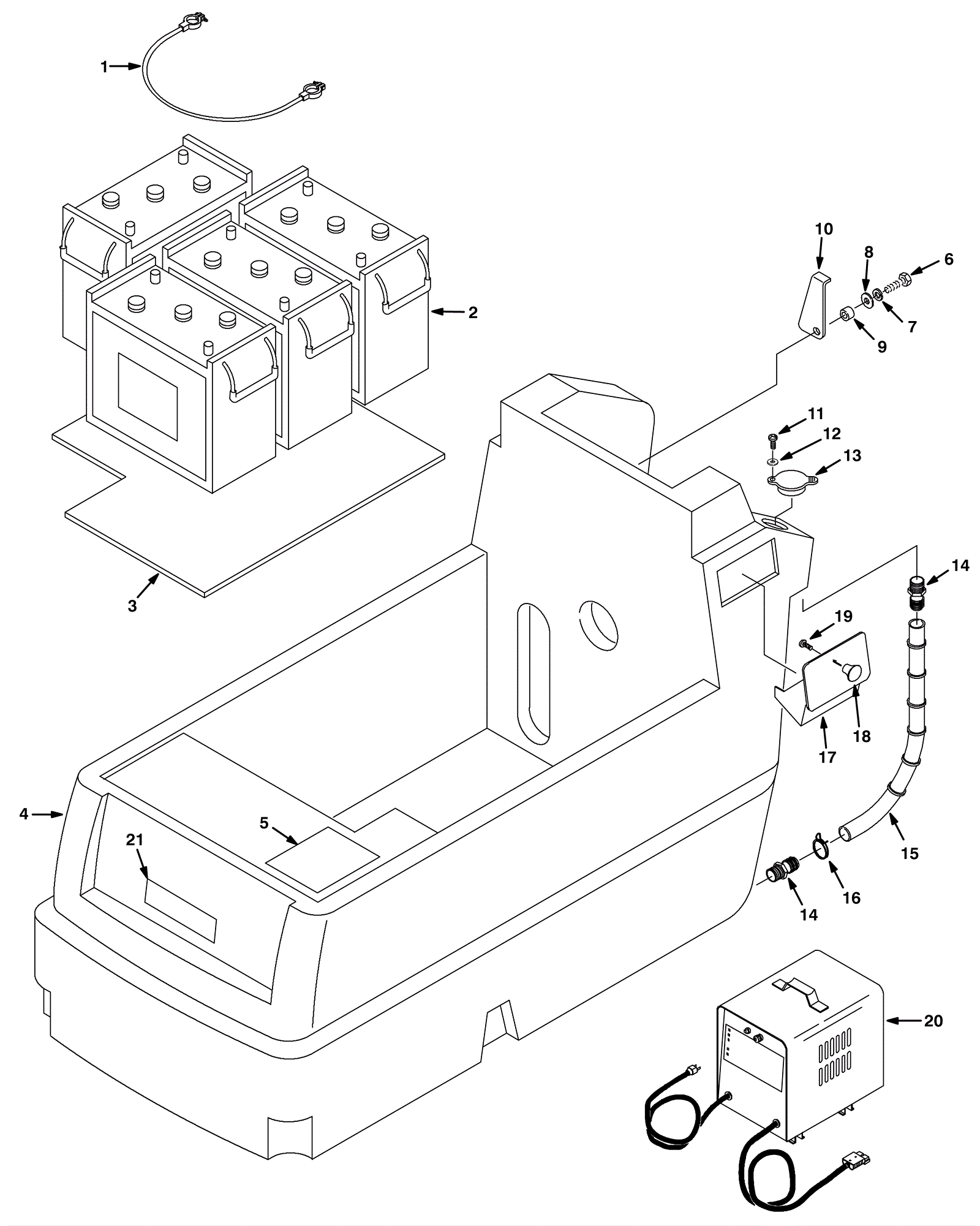

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-2659
|
Battery cable 15 inch x 6 gauge - clamp style |
3 |
|
|
2 |
162-0005
|
6V 305Ah wet battery (SNSR) |
4 |
|
|
4 |
175-2660
|
Battery support plate |
1 |
|
|
5 |
N/A
|
Not available |
1 |
(Battery warning label) |
|
6 |
175-2669
|
Battery warning decal (OBSOLETE) |
1 |
|
|
7 |
999-0900
|
Screw M8-1.25 x 18mm hex head stainless steel |
1 |
|
|
8 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
1 |
|
|
9 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
10 |
175-2673
|
Bushing |
1 |
|
|
11 |
175-2672
|
Recovery tank support |
1 |
|
|
12 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
1 |
|
|
13 |
175-7825
|
Solution fill port cap |
1 |
|
|
14 |
175-2676
|
Barbed fitting |
2 |
|
|
15 |
175-2677
|
Drain hose with level indicator |
1 |
|
|
16 |
175-2678
|
Hose clamp |
1 |
|
|
18 |
175-5821
|
Latch knob |
1 |
|
|
19 |
999-0821
|
Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc |
1 |
|
|
20 |
175-2687
|
24V 25amp battery charger |
1 |
|
|
21 |
N/A
|
Not available |
1 |
(Bluestar label) |
|
KIT 1 |
N/A
|
Not available |
1 |
(Rear fill assembly) (includes 17-19) |
|
