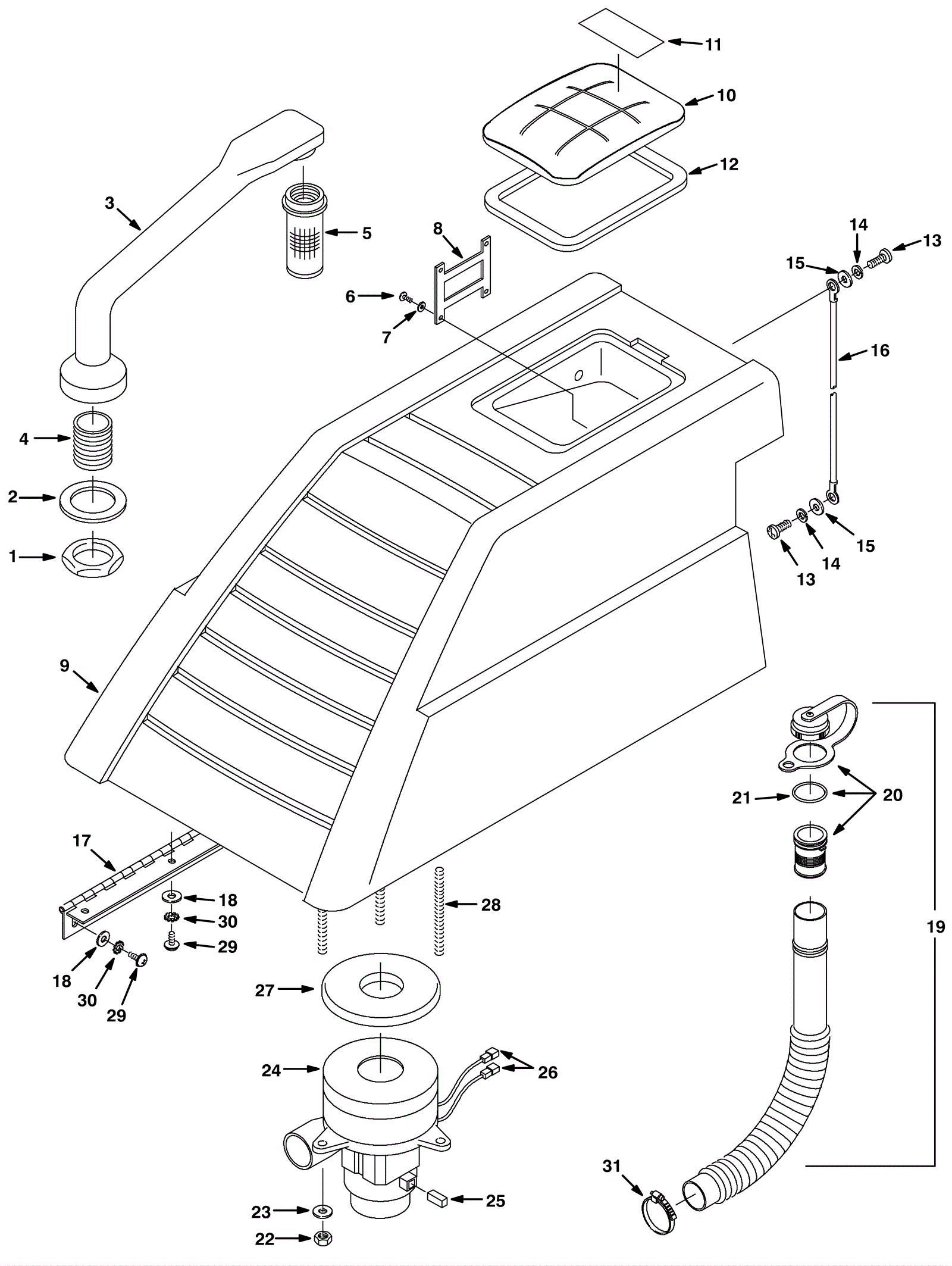

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-2907
|
Nut 1 1/2 flanged hex |
1 |
|
|
2 |
175-2640
|
Gasket |
1 |
|
|
3 |
175-2637
|
Standpipe with nipple assembly |
1 |
(includes 4) |
|
4 |
175-2639
|
1 1/2 inch nipple fitting |
1 |
|
|
5 |
675-9887
|
Shut-off float |
1 |
|
|
6 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
4 |
|
|
7 |
175-5797
|
Washer 1/6 flat zinc |
4 |
|
|
8 |
175-1803
|
Tank lid hinge |
1 |
|
|
9 |
375-1402
|
Recovery tank (OBSOLETE) |
1 |
|
|
10 |
175-5796
|
Recovery tank lid and decal assembly |
1 |
(includes 11 and 12) |
|
11 |
175-2868
|
Warning decal |
1 |
|
|
12 |
175-4673
|
Recovery tank lid gasket |
1 |
|
|
13 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
2 |
|
|
14 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
15 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
16 |
175-2651
|
Support cable |
1 |
|
|
17 |
175-2641
|
Recovery tank hinge |
1 |
|
|
18 |
999-0016
|
Washer 1/4 flat plain finish |
11 |
|
|
19 |
175-1153
|
Drain hose assembly |
1 |
(includes 20) |
|
20 |
175-4214
|
Drain plug assembly |
1 |
(includes 21 and 22) |
|
21 |
175-5804
|
O-ring |
1 |
|
|
22 |
175-4214
|
Drain plug assembly |
1 |
|
|
23 |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
24 |
275-5736
|
24V 3 stage vacuum motor |
1 |
(includes 25) |
|
25 |
175-2658
|
Carbon brush (pkg of 2) |
1 |
|
|
26 |
175-0923
|
Male terminal |
2 |
|
|
27 |
675-9893
|
Vacuum motor gasket |
1 |
|
|
28 |
175-3641
|
Stud |
3 |
|
|
29 |
999-1041
|
Screw M6-1 x 12mm pan head phillips stainless steel |
11 |
|
|
30 |
999-1024
|
Washer 1/4 external tooth lock stainless steel |
11 |
|
|
31 |
175-2057
|
Hose clamp |
1 |
|
|
32 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
|
|
