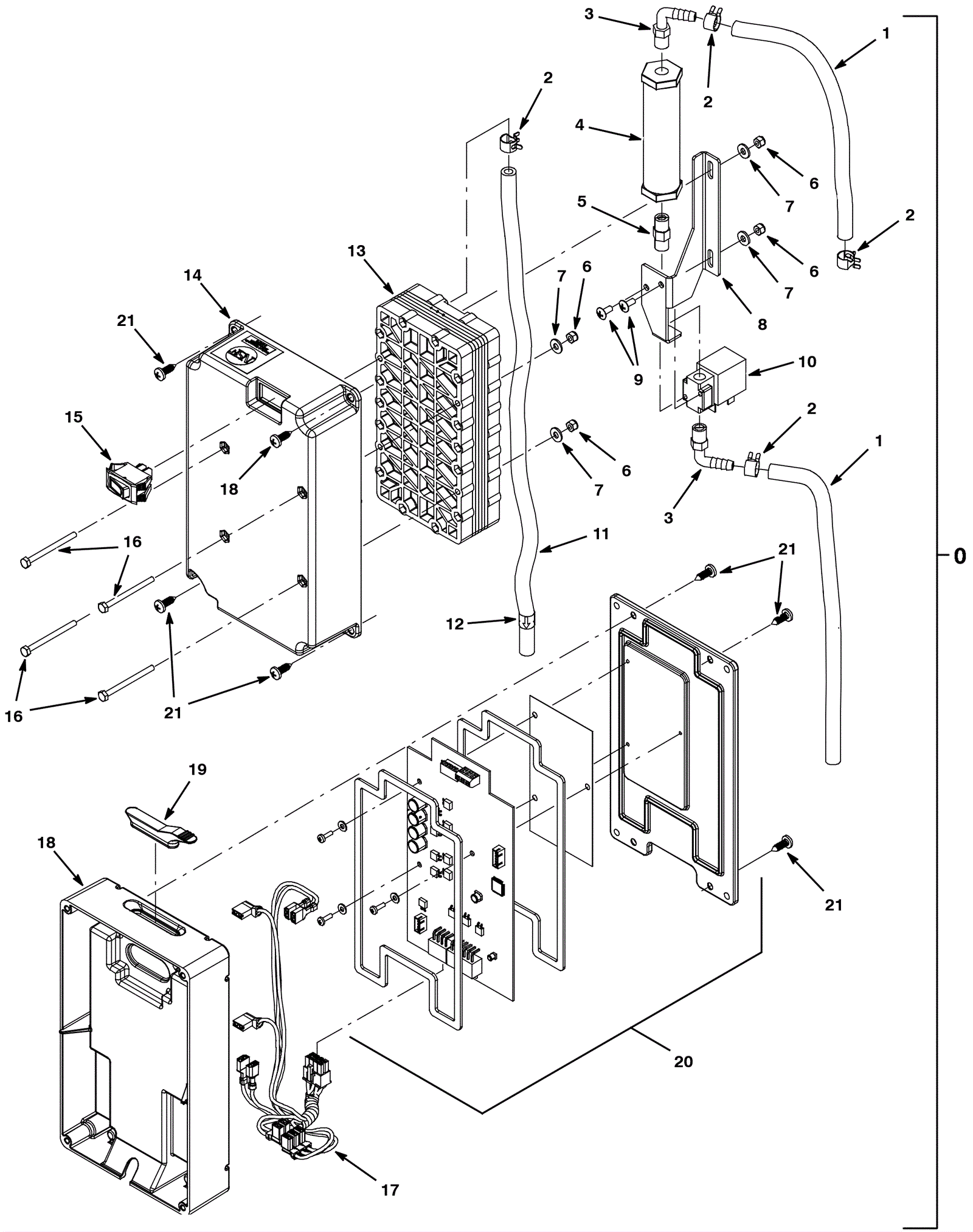

7100 ec-H2O Module Assembly

#PartDescriptionPriceReqNotesAvailability
0a 275-9935 ec-H20 module $1,871.40 1 (includes 0b-21) usually ships 5-16 days
0b 275-4953 Module plumbing kit $1,461.80 1 (includes 1-17) usually ships 1-5 days
1 175-6347 Hose 1/4 inch x 13 foot $25.10 1 usually ships 5-16 days
2 175-1656 Hose clamp $3.60 4 usually ships 5-16 days
3 175-1662 90 degree elbow fitting $3.60 2 usually ships 5-16 days
4 275-9936 Cylindrical electrode $39.30 1 usually ships 5-16 days
5 275-4770 Straight brass fitting $13.70 1 usually ships 5-16 days
6 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
7 999-0266 Washer #8 SAE flat stainless steel $0.99 4 ships same day
8 275-4954 Valve bracket $13.60 1 usually ships 1-5 days
9 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 2 ships same day
10 275-4769 24V solenoid valve $144.50 1 ships same day
11 275-4955 PVC hose $88.80 1 usually ships 1-5 days
12 275-5731 Direction decal $2.80 1 usually ships 5-16 days
13 275-4956 5 plate electrode $927.20 1 usually ships 1-5 days
14 275-4957 Front module housing $10.90 1 usually ships 1-5 days
15 275-4773 Rocker switch $6.80 1 ships same day
16 999-1947 Screw M4-.7 x 50 hex stainless steel $1.47 4 usually ships 11-24 days
17 275-4958 Main wiring harness $24.80 1 usually ships 5-16 days
18 275-4761 Rear module housing $9.20 1 usually ships 1-5 days
19 275-5946 Grommet $4.50 1 usually ships 5-16 days
20 275-4775 Controller replacement kit (ec-H2O) $422.90 1 usually ships 5-16 days
21 999-0531 Screw M5-.8 x 16mm pan head slotted zinc $0.99 8 ships same day
