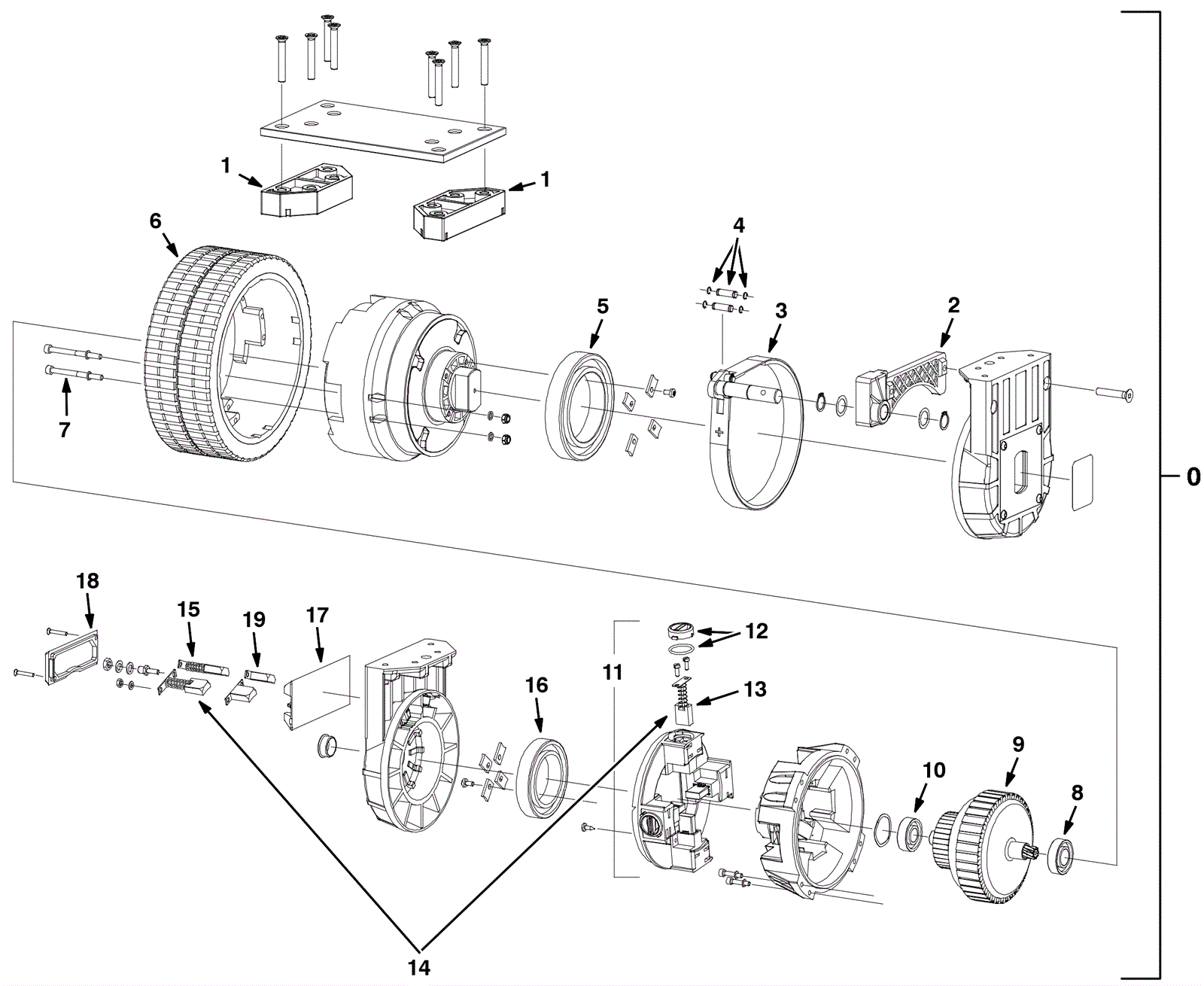

7100 Front Wheel Gearbox Breakdown Assembly - Part 2

#PartDescriptionPriceReqNotesAvailability
0 175-4952 Break wheel gearbox $4,021.80 1 (Includes 1-19) usually ships 5-16 days
1 375-0015 Spacer $51.50 2 usually ships 1-5 days
2 275-6097 Brake bracket assembly $162.80 1 usually ships 5-16 days
3 175-5380 Brake band $417.00 1 (Includes 4) usually ships 5-16 days
4 275-6098 Pin kit with snap ring $22.10 1 usually ships 1-5 days
5 275-8270 Steering bearing $268.60 1 usually ships 5-16 days
6 275-8259 Solid tire (red) $681.20 1 usually ships 5-16 days
7 275-4977 Wheel mounting screw $6.60 8 usually ships 5-16 days
8 175-5375 Gearbox side bearing $72.90 1 usually ships 5-16 days
9 375-0016 Motor Armature $582.40 1 usually ships 1-5 days
10 175-5376 Motor side bearing $64.20 1 usually ships 5-16 days
11 275-4976 Carbon brush holder ring $979.60 1 (includes 12-13a) usually ships 5-16 days
12 175-5373 Carbon brush cover $45.50 4 ships same day
13a 275-4972 Carbon brush kit (pkg of 4) $306.80 4 ships same day
13b 275-4973 Carbon brush (sold individually) $78.40 4 ships same day
14 175-5371 Carbon and motor brush kit $494.70 1 (includes 13a, 15a) ships same day
15a 275-4974 Motor brush kit (pkg of 2) $112.70 2 ships same day
15b 275-8262 Motor brush (sold individually) $52.90 2 usually ships 5-16 days
16 275-4975 Bearing $99.60 1 usually ships 5-16 days
17 275-8260 Connection box $114.00 1 usually ships 5-16 days
18 275-8261 Connection cover $19.60 1 usually ships 5-16 days
19 275-8269 Brush holder guide $14.00 2 usually ships 5-16 days
