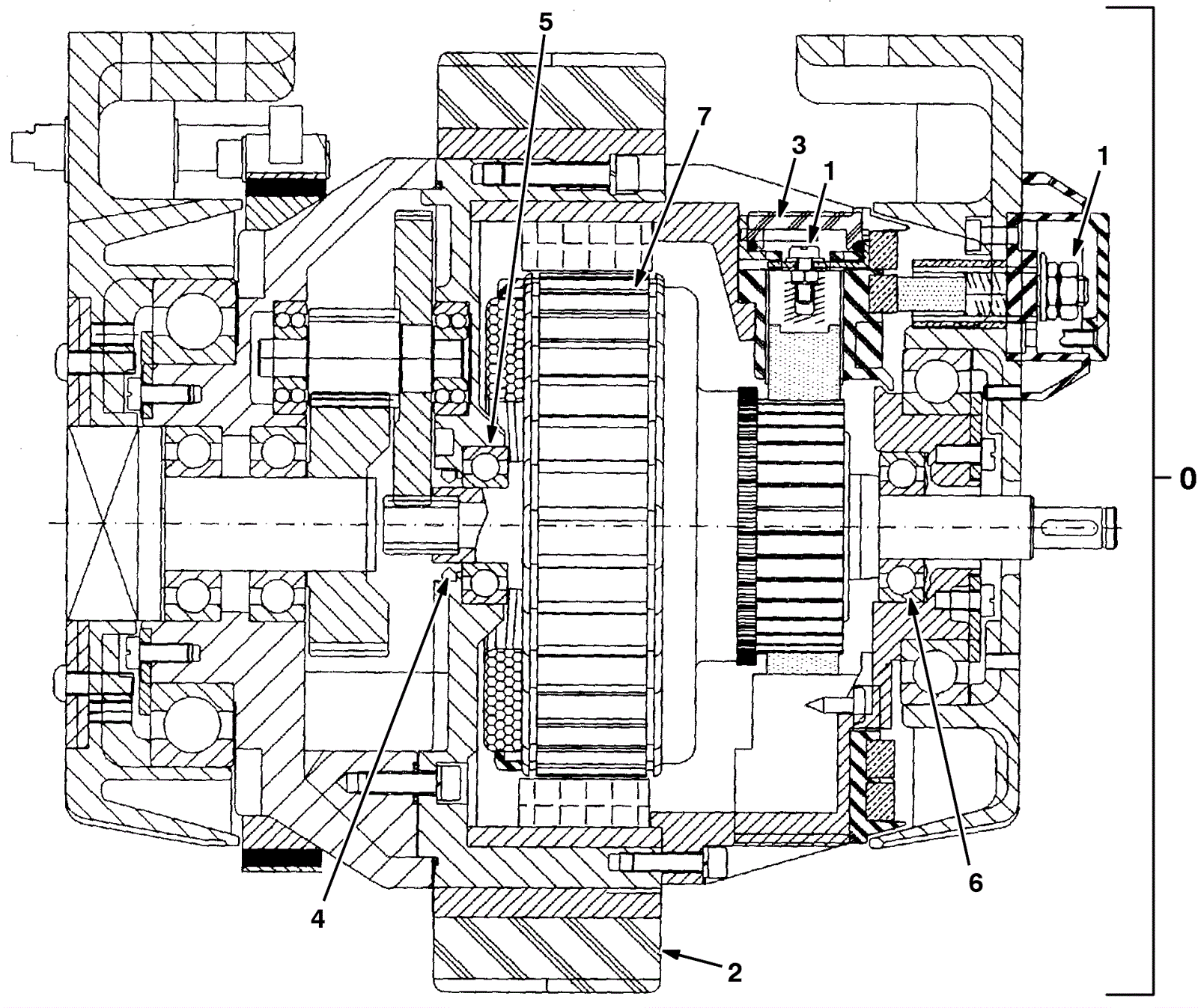

Front Wheel Gearbox Breakdown Assembly - Part 1

#PartDescription ReqNotesAvailability
0 175-4950 Front wheel gearbox assembly 1 (includes 1-7)
1 175-5371 Carbon and motor brush kit 1
2 375-3128 Tire 1
3 175-5373 Carbon brush cover 1
4 175-5374 Ring seal 1
5 175-5375 Gearbox side bearing 1
6 175-5376 Motor side bearing 1
7 375-3129 Armature assembly 1
N/S 175-5378 Brake caliper 1 (included with 0)
N/S 175-5379 Brake rotor 14mm 1 (included with 0)
N/S 375-3130 Brake 1 (included with 0)
