| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

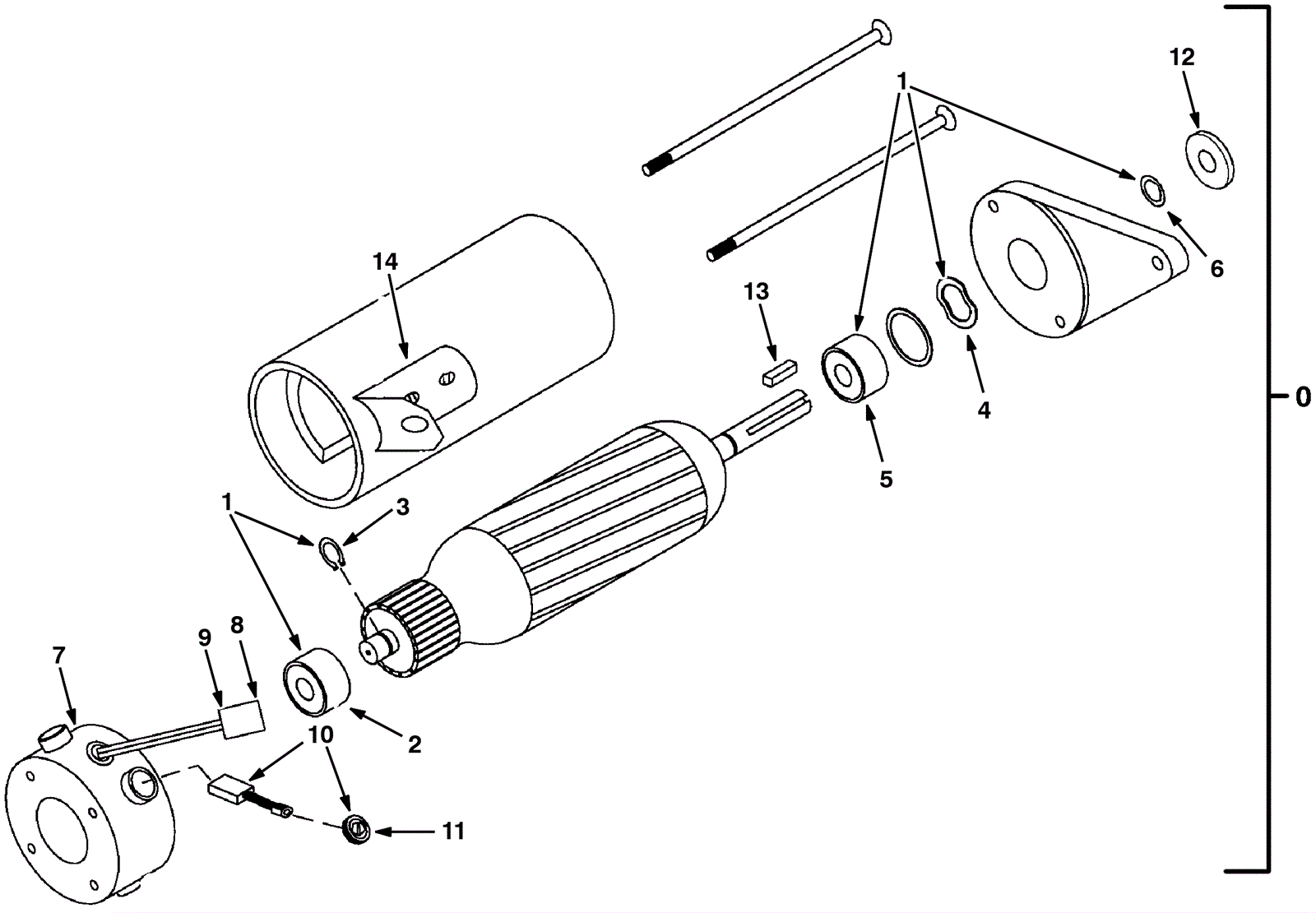

175-2056
|
Brush motor assembly |
1 |
(Includes 1-14) |
|
1 |
175-5358
|
Motor bearing kit (OBSOLETE) |
1 |
(includes 2-6) |
|
2 |
175-5359
|
Bearing (OBSOLETE) |
2 |
|
|
3 |
175-5360
|
Snap ring |
2 |
|
|
4 |
175-5361
|
Spring washer |
1 |
|
|
5 |
175-5362
|
Drive end bearing |
1 |
|
|
6 |
175-5363
|
Seal (OBSOLETE) |
1 |
|
|
7 |
175-5364
|
Electric motor brush end endbell (OBSOLETE) |
1 |
(includes 8-9) |
|
8 |
175-5293
|
Female connector |
1 |
|
|
9 |
175-5365
|
Female terminal |
2 |
|
|
10 |
175-5366
|
Carbon brush kit (pkg of 4) (OBSOLETE) |
1 |
(includes 11) |
|
11 |
175-5368
|
Brush holder cap |
4 |
|
|
12 |
999-1156
|
Washer M12-.7 nylon |
1 |
|
|
13 |
175-4202
|
Square keyway |
1 |
|
|
14 |
175-5370
|
Brace kit (OBSOLETE) |
1 |
|
|
