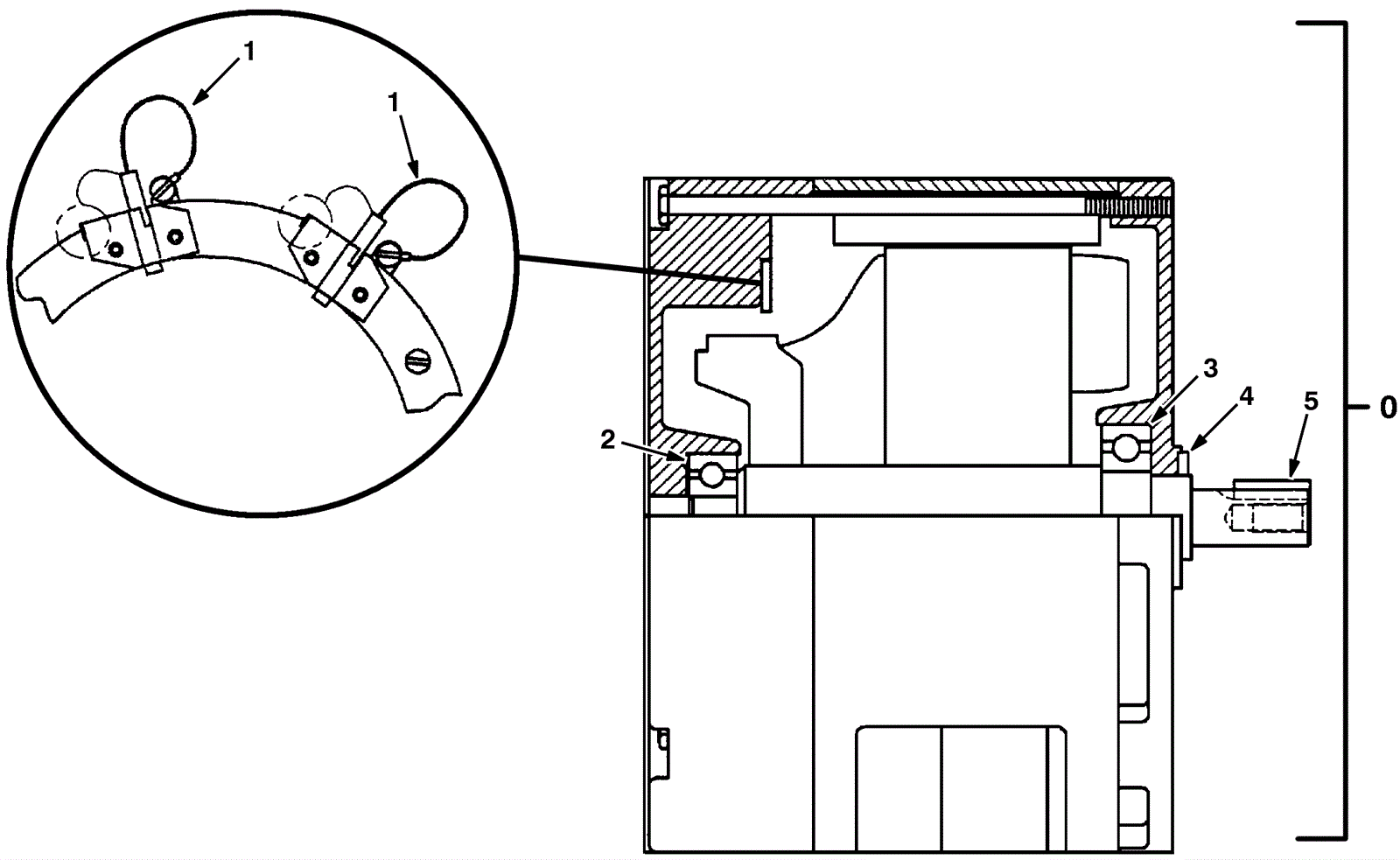

Electric Motor Breakdown Assembly - Part 2
Click to enlarge
#
Part
Description
Req
Notes
Availability
0
175-3325
Brush motor kit
1
(includes 1-5)
1
175-5352
Carbon brush (pkg of 4)
1
2
175-5353
Bearing
1
3
175-5354
Back end bearing
1
4
175-5355
Oil seal
1
5
175-5356
Square keyway
1
N/S
175-5293
Female connector
1
(included with 0)
N/S
175-5365
Female terminal
2
(included with 0)
