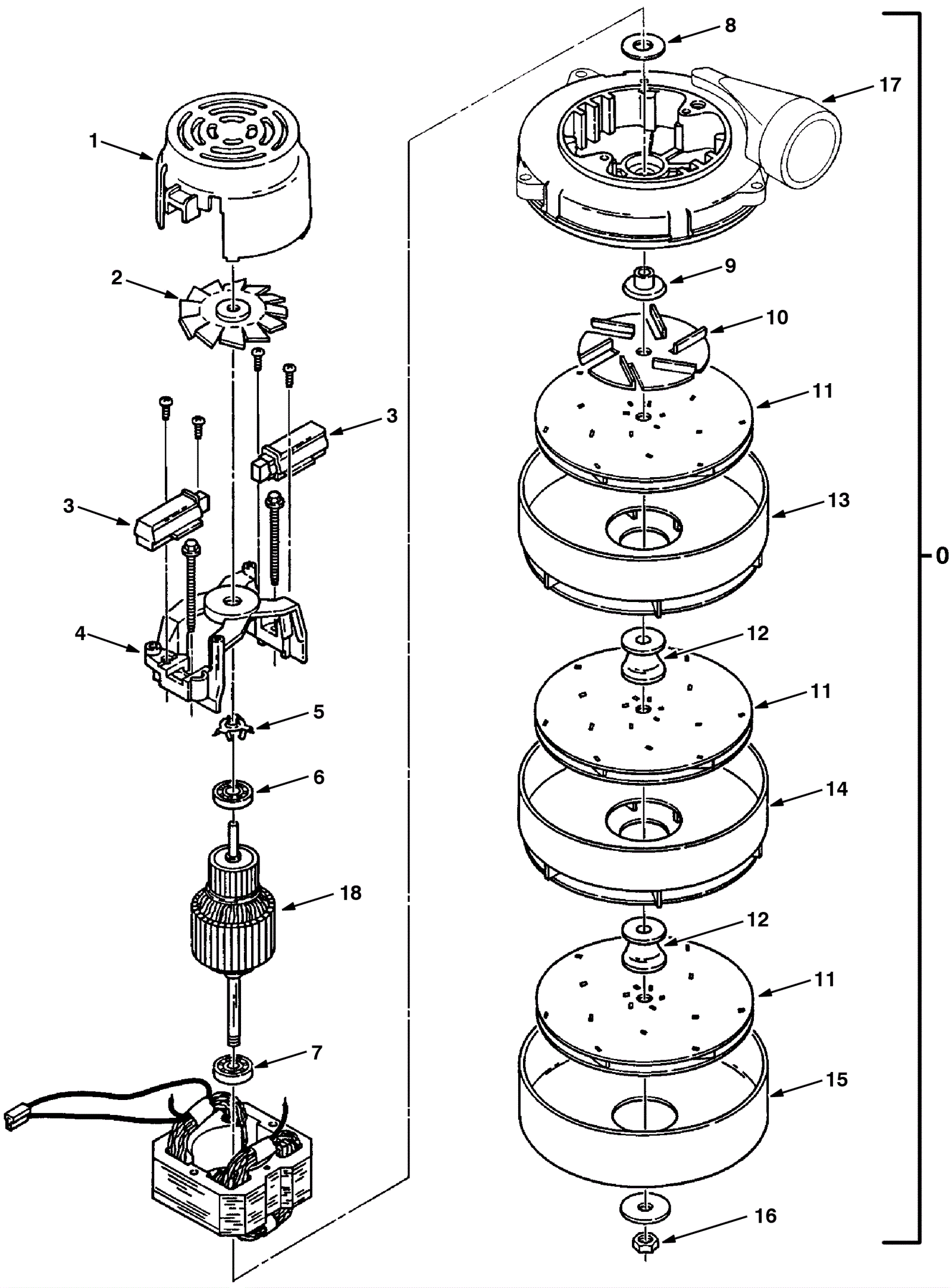

7100 Electric Motor Breakdown Assembly - Part 1

#PartDescriptionPriceReqNotesAvailability
0 175-3402 36V 3 stage vacuum motor assembly $506.88 1 (includes 1-18) usually ships 5-16 days
1 175-5275 Housing $23.54 1 usually ships 13-17 days
2 175-5276 Fan $5.61 1 usually ships 13-17 days
3 991-1221 Carbon brush without plastic cover (pkg of 2) $15.95 2 usually ships 13-17 days
4 175-5278 Commuicator bracket (OBSOLETE) $7.05 1 usually ships 13-17 days
5 175-5279 Spring $3.96 1 usually ships 1-5 days
6 275-0184 Bearing $15.73 1 usually ships 1-5 days
7 175-5281 Bearing $36.85 1 usually ships 13-17 days
8 175-5282 Washer neoprene $5.50 1 usually ships 1-5 days
9 175-5283 Spacer $9.35 1 usually ships 1-5 days
10 175-5284 Fan $7.15 1 usually ships 1-5 days
11 175-5285 Vacuum fan $14.96 3 usually ships 13-17 days
12 175-5286 Spacer $8.69 2 usually ships 1-5 days
14 175-5288 Stationary fan $25.63 1 usually ships 1-5 days
15 175-5289 Shell $26.62 1 usually ships 13-17 days
16 175-5290 Nut $5.50 1 usually ships 1-5 days
17 175-5291 Fan end bracket $112.09 1 usually ships 1-5 days
18 175-5292 Armature $237.71 1 usually ships 1-5 days
N/S 175-3403 Fan seal $19.14 1 (included with 0) usually ships 13-17 days
N/S 175-5293 Female connector $11.00 1 (included with 0) ships same day
N/S 175-5294 Female terminal $4.49 2 (included with 0) usually ships 1-5 days
N/S 175-3404 Fan inlet screen $17.82 1 (included with 0) usually ships 13-17 days
