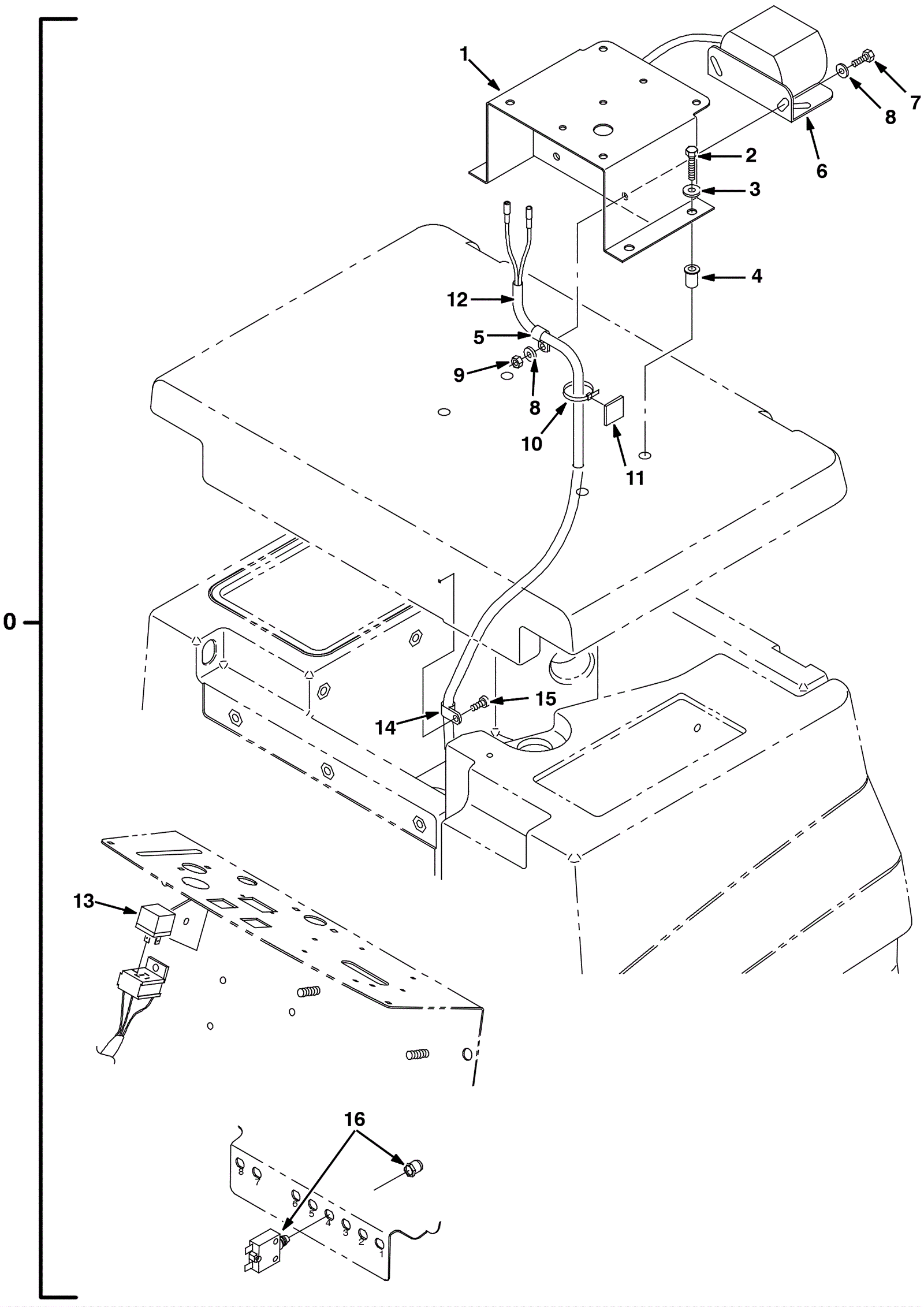

Backup Alarm Assembly

#PartDescription ReqNotesAvailability
0 375-3121 Backup alarm with bracket 1 (Includes 1-16) (before SN 00719)
1 175-5414 Light bracket weldment 1
2 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 4
3 999-0024 Washer 5/16 flat stainless steel 4
4 175-5424 Nut 1/4-20 isolator wall thick 4
5 175-3170 P clamp 1
6 275-2542 Backup alarm assembly 1
7 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 2
8 999-0016 Washer 1/4 flat plain finish 4
9 999-0469 Nut M6-1 nylon insert lock zinc plated 2
10 175-2202 Nylon wire tie 2
11 175-3233 Cable tie mount 1
12 375-3122 Harness 1
13 175-2265 36V 5amp relay 1
14 175-5421 P clamp 1
15 175-3223 Screw 12-16 x 1/2 pan head plastic 1
16 175-2336 10amp circuit breaker 1
